64319-2211 CMC Series 32-Way Black Female Housing
· MOLEX · Our Part Number: 32-AC021 ·| Quantity | Unit Price | Saving |
|---|---|---|
| 10+ | £5.00 | |
| 100+ | £4.60 | |
| 1000+ | £3.40 |
Molex 64319-2211 - 32 Way Housing
Terminals are not included
| Status | Active | Category | Connector Housings |
|---|---|---|---|
| Series | 64319 | Description | .635mm, 1.50mm, CMC Receptacle, 32 Circuits, Left Wire Output, Black Coding, Mat Sealed |
| Application | Automotive, Power, Wire-to-Board | Comments | Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) |
| More Detailed Tech Information | Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906131135 |

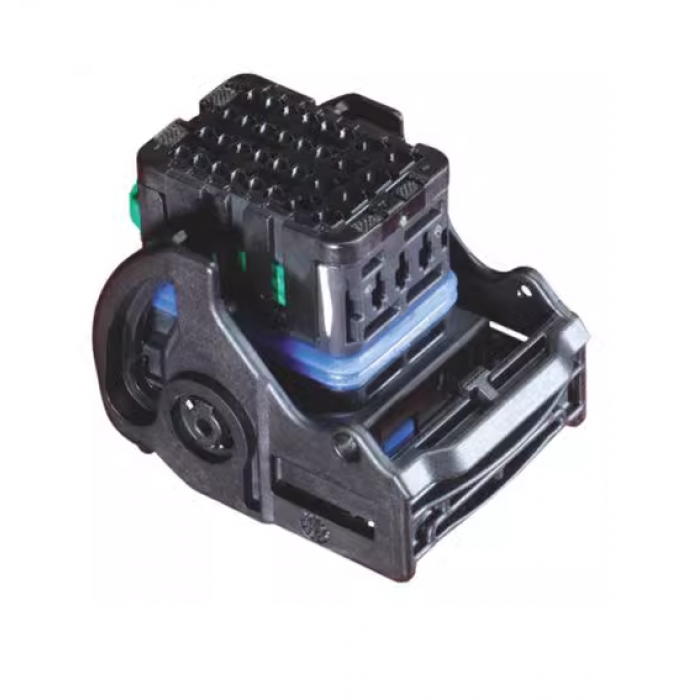

The Component: Genuine Molex 64319-2211 (Alternative: 0643192211) 32-way female automotive sealed hybrid connector housing plug. CMC Series 32-circuit 4-row high-density socket receptacle casing (Black / Polyester PBT / Sealed / Left-Hand Wire Output / Mat Sealed / Row 1 Closed Configuration / UPC: 883906135041).
Applications & Fitment: Designed as a primary factory original equipment (OE) wiring harness connection solution for high-density engine control units (ECUs), transmission modules, electronic parking brakes, and suspension controllers. Universally specified across global passenger cars, transport trucks, buses, and heavy-duty agricultural machinery as the definitive interface block for compact powertrain computing modules. Engineered as a high-performance hybrid infrastructure that groups high-speed data logic paths and heavy electrical power lines into a single compact 32-position footprint, featuring factory-blocked cavity ports on Row 1 to match specific vehicle wiring configurations. Highly vulnerable to mechanical perimeter latch block fracturing if pried aggressively when brittle from cold engine-bay cycles, or internal silicone mat-seal tearing if wire contacts are extracted using non-specified workshop tools.
Technical Attributes:
- Manufacturer Part Number: 64319-2211 / 0643192211 (Brand: Molex / USA Genuine Class)
- Product Series Taxonomy: CMC Series / 64319 Hybrid Mat-Sealed Sub-Group
- Configuration: 32-Position / 32-Way Female Receptacle Housing, High-Density Hybrid 4-Row Layout Matrix (Row 1 Closed Variant)
- Hybrid Circuit Allocation: 32 total positions handling a mix of: 0.635mm (.025") micro signal ports AND 1.50mm (.059") medium power ports
- Mechanical Keying Profile: Black Color-Coded Resin Shroud with matching mechanical polarization slots to prevent alignment mismatch
- Wire Loom Exit Orientation: Left-Hand Wire Output direction tracking
- Base Structural Compound: Premium Glass-Filled Polybutylene Terephthalate (PBT)
- Delivered Component Weight: 29.42 grams
- Fastening & Locking Architecture: Integrated robust heavy-duty latch holder bracket framework
- Environmental Sealing Level: Watertight, dustproof, and splashproof certified up to severe IP6K7 and IP6K9K standards; utilizes an advanced, pre-assembled single-piece silicone rubber internal Mat-Seal technology at the rear entry face
- Circuit Performance Thresholds: Max allowable current capacity performance when tested on a 5-terminal load configuration yields up to 6.0A for the 0.635mm paths (using 0.75mm² wire) and up to 12.0A for the 1.50mm lines (using 2.00mm² wire); insulation rating supports low-voltage logic up to 250V AC/DC
- Operational Thermal Window: Premium continuous operating thermal stability rated from -40°C up to +125°C
- Target Female Terminal Contacts (Not Included): Uses Molex CP 0.635mm series female terminals (such as 64322-1039 for 20 AWG or 64322-1029 for 18 AWG) AND CP 1.50mm series female terminals (such as 64323-1029 or 64323-1039)
- Associated Sealing Accessories (Not Included): Requires matching Molex CMC 32-way wire cap / backshell plate (such as 64319-1201) to support correct loom dressing; uses 0.635mm blind cavity plugs (64325-1010) and 1.50mm blind plugs (64325-1023) to seal any unpopulated active port tracks
- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
