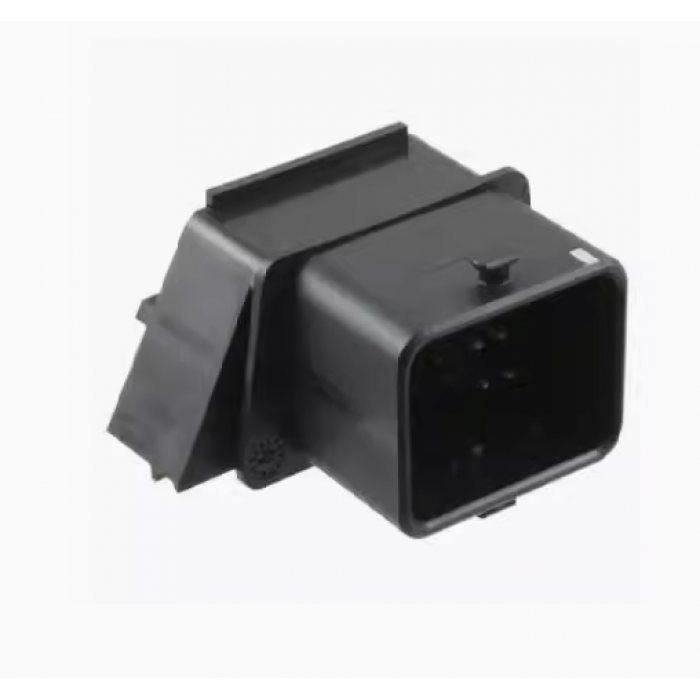

64334-0100
Our part32-AC015 RoHS
We ship worldwide, daily
Tracked delivery to 190+ countries by UPS, DHL or FedEx.
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £5.80 | — |
| 10+ | £5.00 | |
| 100+ | £4.50 |
In Group Stock
£5.80
each
Volume quotation (1k+)Fast reply from our RFQ team
Free UK delivery over £30
30-day returns
Full traceability
Secure checkout
Accepted:
Specifications
MOLEX CMC 32-AC015
StatusActive
CategoryPCB Headers and Receptacles
Series64334
Description2.50mm, 3.70mm CMC Header, Right-Angle, 32 Circuits, 1 Port, Black
ApplicationAutomotive, Power, Wire-to-Board
CommentsCoding: Black
Component TypePCB Header
Product FamilyCMC and CMX Sealed, Hybrid, Modular Connectors
Product NameCMC
UPC883906844431
Current - Maximum per Contact12.0A, 2.5A
Voltage - Maximum14V DC
BreakawayNo
Circuits Detail8 x 1.5mm & 24 x 0.635mm terminals
Circuits (Loaded)32
Circuits (maximum)32
Color - ResinBlack
Durability (mating cycles max)20
First Mate / Last BreakNo
Glow-Wire CapableNo
Guide to Mating PartYes
Keying to Mating PartYes
Lock to Mating PartYes
Material - Plating MatingTin
Material - ResinNylon Alloy
Net Weight29.700/g
Number of Rows4
OrientationRight Angle
Packaging TypeTray
Pitch - Mating Interface2.50mm, 3.70mm
Polarized to Mating PartYes
Polarized to PCBYes
Temperature Range - Operating-40° to +105°C
Termination Interface StyleSolder or Weld
Max-Duration25
Lead-Free Process CapabilityWAVE
Max-Cycle1
Max-Temp260
Complete your connector
Matching terminals, seals and mating parts for this housing. Mates with 20.
Connectors and housings 3
Related housings in the same family or pin count.
Price isn't everything
This is a genuine MOLEX CMC part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
