47745-0100

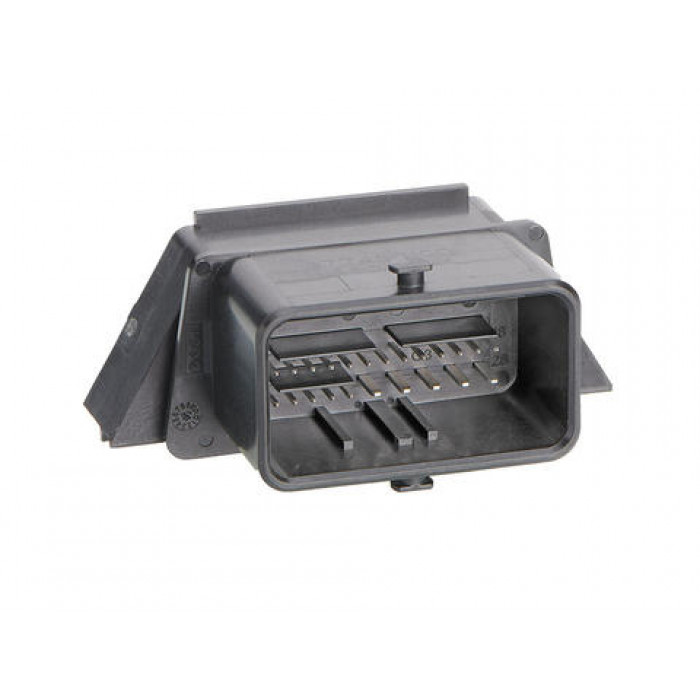

47745-0100 2.50mm, 3.50mm CMC Header, Right-Angle, 28 Position, 1 Port, Black, Peg, Lead-Free
| Status | Active | Category | PCB Headers and Receptacles |
|---|---|---|---|
| Series | 47745 | Description | 2.50mm, 3.50mm CMC Header, Right-Angle, 28 Position, 1 Port, Black, Peg, Lead-Free |
| Application | Automotive, Power, Wire-to-Board | Comments | Coding: Black |
| Component Type | PCB Header | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 887191161006 |
Electrical
| Current - Maximum per Contact | 12.0A, 2.5A, 21.0A | Voltage - Maximum | 14V DC |
|---|
Physical
| Breakaway | No | Circuits Detail | 5x 2.8mm, 5 x 1.5mm, 18 x 0.635mm terminals |
|---|---|---|---|
| Circuits (Loaded) | 28 | Circuits (maximum) | 28 |
| Color - Resin | Black | Durability (mating cycles max) | 20 |
| First Mate / Last Break | Yes | Glow-Wire Capable | No |
| Guide to Mating Part | No | Keying to Mating Part | Yes |
| Lock to Mating Part | Yes | Material - Metal | Brass |
| Material - Plating Mating | Tin | Material - Plating Termination | Tin |
| Material - Resin | Polyester | Net Weight | 36.292/g |
| Number of Rows | 3 | Orientation | Right Angle |
| Packaging Type | Carton | PCB Locator | Yes |
| PCB Retention | Yes | PCB Thickness - Recommended | 1.60mm |
| PC Tail Length | 2.90mm | Pitch - Mating Interface | 2.50mm, 3.50mm, 3.70mm |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | Closed Ends | Stackable | No |
| Temperature Range - Operating | -40° to +105°C | Termination Interface Style | Solder or Weld |
Solder Process Data
| Max-Duration | 10 | Lead-Free Process Capability | WAVE |
|---|---|---|---|
| Max-Cycle | 1 | Max-Temp | 260 |
Tags: 47745-0100477450100
