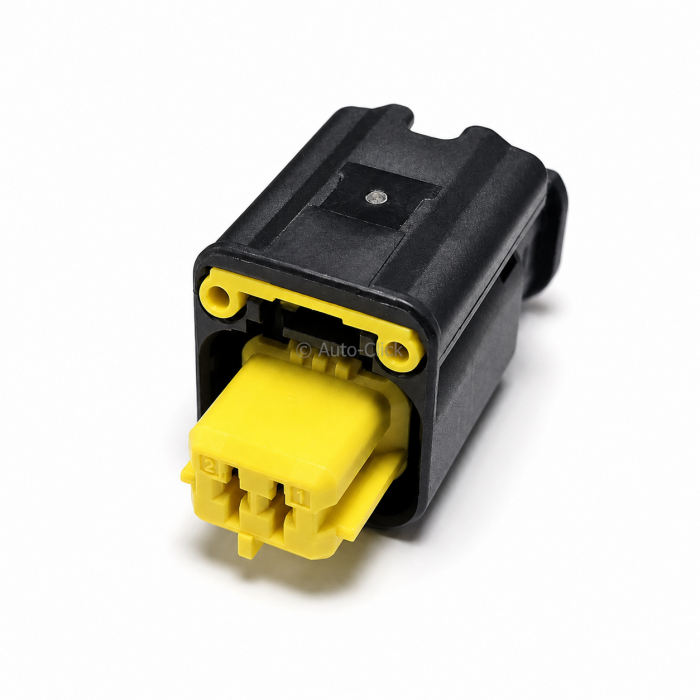

TE Connectivity 1801176-4 2-Way Female Sealed Connector (Yellow)

The Component: Genuine TE Connectivity high-performance sealed female socket receptacle connector housing. Sensor Flat Contact System taxonomy / 2-position single-row linear female casing / Keying Code 4 (Distinct Yellow / Premium Glass-Reinforced PBT / Sealed Waterproof / 1x2 Layout / Female Inline Sensor Plug / Component Variant Alias: 1801176-4 / Global Order Reference: 1801176-4 / HPSL Series System).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) wire-to-wire waterproof connection plug designed explicitly for harsh, high-exposure vehicular sensor and telemetry environments. This 2-pin female socket receptacle block is a heavy-duty wiring harness staple across modern passenger vehicles, commercial machinery, and agricultural equipment platforms—frequently integrated for high-vibration chassis nodes, powertrain sensor networks, fluid temperature monitors, and exhaust management telemetry links. It features an integrated mechanical mating alignment structure with strict Code 4 physical keying safeguards that guarantee flawless orientation with the matching male header side. Engineered to survive severe environmental conditions, its fully sealable architecture delivers an absolute barrier against high-pressure moisture ingress, continuous road salt exposure, fine dust penetration, and under-hood fluid films. Highly vulnerable to terminal guide damage or primary latch arm stress fracture if field service technicians attempt forced maintenance extraction using un-profiled hand tools rather than standard micro-terminal release keys.

Technical Attributes:

- Manufacturer Part Number: 1801176-4 (Brand: TE Connectivity / AMP Genuine Factory Automotive Class)

- Product Series Taxonomy: Sensor Flat Contact System / 48V Ready 1.5mm Sealed Series Interconnect Family

- Configuration: 2-Position / 2-Way Female Socket Plug, Single-Row 1x2 Linear Layout

- Physical Footprint Dimensions: 35.05mm Width x 18.00mm Length x 21.00mm Height structural block profile

- Centerline Terminal Pitch: 3.33mm (0.131 in) high-density micro-pitch packaging layout

- Connector Style: Socket Housing for Female Contacts (Free-Hanging Cable Mount Inline Receptacle)

- Cable Exit Geometry: Standard 180-degree straight inline exit path

- Fastening & Locking Architecture: Features a secure primary locking system acting directly on the terminal lance structure

- Secondary Locking System: Equipped with an integrated Terminal Position Assurance (TPA) alignment matrix to guarantee zero pin back-out under severe pull stress

- Mating Terminal Tab Envelope: Custom-engineered to accept standard 1.5mm nominal blade width female flat contact sockets

- Maximum Current Threshold: Rated up to 16 Amps maximum continuous contact current delivery

- Low-Voltage Circuit Threshold: Engineered for standard electronic low-voltage networks operating up to 16V DC nominal voltage architecture

- Base Structural Compound: Premium 15% Glass-Reinforced Polybutylene Terephthalate (PBT GF15) engineering polymer for maximum thermal tracking resistance, dimensional accuracy, and impact toughness

- Color Profile & Coding: Factory Standard Distinct Yellow housing block configuration explicitly matching Keying Code 4 configurations

- Environmental Sealing Level: High-performance waterproof and dustproof isolation certified to severe IP69K standards (withstands close-range high-pressure hot washdown cycles)

- Material Flammability Rating: Compliant with industry standard UL 94HB guidelines

- Operational Thermal Window: Severe-duty engine bay and chassis layout certified to maintain structural elasticity and seal compliance from -40°C up to +150°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept TE Connectivity 1.5mm Sensor Flat Contact receptacle terminals (requires individual wire cavity seals to maintain full IP69K moisture protection)

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching 2-way male Code 4 keyway TE components

- Commercial Access: Available as loose individual housing shells or convenient trade repair connection bundles. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
