100 or more £7.15

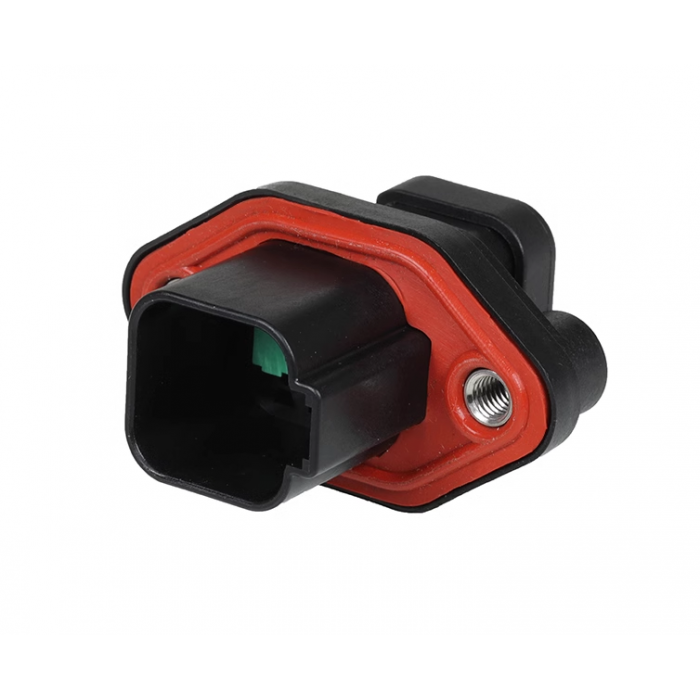

DT04-6P-CL09
6 way Housing Terminals are included
Product Type Features
Connector Shape : Rectangular
Connector & Housing Type : Housing for Male Terminals
Connector System : Wire-to-Wire
Sealable : Yes
Hybrid Connector : No
Primary Locking Feature : Integrated in Housing
Connector & Contact Terminates To : Wire & Cable
Configuration Features
Connector Modification : Sealed Flange, End Cap
Number of Positions : 6
Number of Rows : 3
Blank Cavity Position : 0
Electrical Characteristics
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Nominal Voltage Architecture (V): 12, 24, 48
Body Features
Cable Exit Angle : 180°
Primary Product Color : Black
Contact Features
Contact Type : Pin
Contact Size : Size 16
Mating Pin Diameter : 1.59 mm [ .063 in ]
Contact Current Rating (Max) (A): 13
Mechanical Attachment
Mating Alignment : With
Mating Alignment Type : Polarized
Strain Relief : Add By Accessory
Connector Mounting Type : Panel Mount
Terminal Position Assurance : Yes
Housing Features
Housing Material : PA GF
Centerline (Pitch) : 9.12 mm [ .359 in ]
Dimensions
Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]
Row-to-Row Spacing : 4.45 mm [ .175 in ]
Product Length : 47.45 mm [ 1.868 in ]
Product Width : 30.99 mm [ 1.22 in ]
Connector Height : 54.74 mm [ 2.155 in ]
Usage Conditions
Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
Circuit Application : Power & Signal
Industry Standards
UL Flammability Rating : 12mm Flame Test per Standard UL-94
Agency/Standard : SAE J2030
Degree of Protection : IP68, IP6K9K
Packaging Features
Packaging Method : Box
Packaging Quantity : 200
Other
Connector Position Assurance Capable : No
Serviceable : Yes
