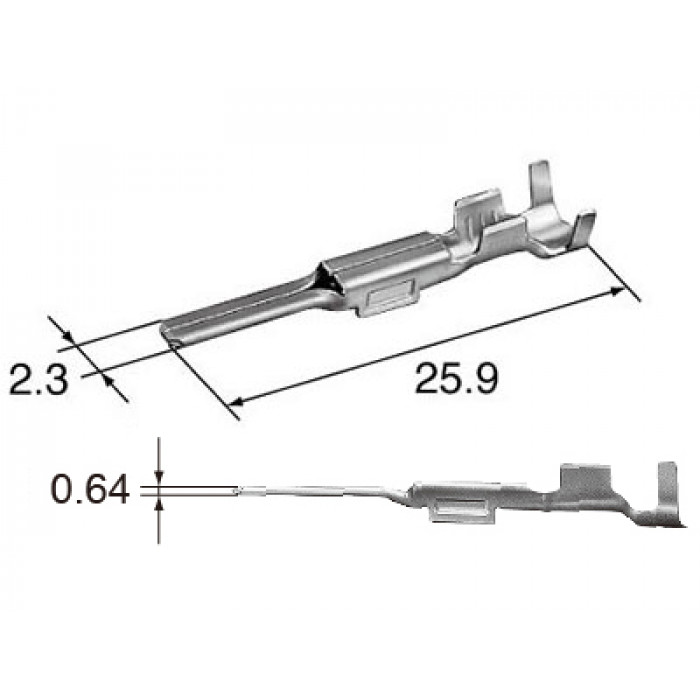

Original Sumitomo 8100-0458

TS sealed series

Terminal For AV Wire

2.3mm (090)

Sealed/Unsealed sealed

Male/Female M

Tab Size 2.3mm (090)

Size M

Mating parts 8100-0461 (TS sealed series)

Applicable wire size

0.5-1.25mm2

Materials Brass

Surface treatment Tin-plated

Contact resistance

Initial

3mΩ Max.

after durability tests

10mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.
