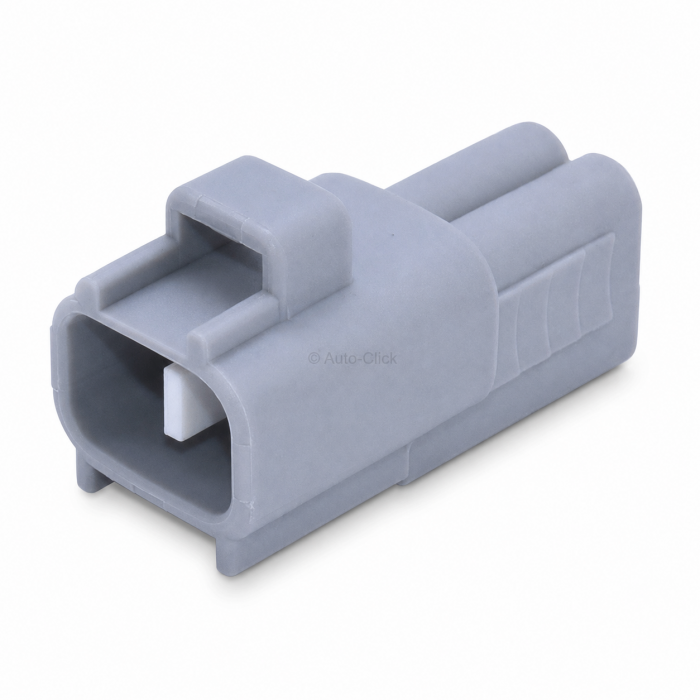

Sumitomo 6188-0108 2-Way Male TS Sealed 090 Connector Housing

The Component: Genuine Sumitomo Wiring Systems OEM 2-position sealed male connector housing / Premium TS 090 series waterproof automotive inline plug / 1x2 single-row inline cavity layout / Integrated exterior mounting bracket/stay fixation slot / Primary locking mechanism with internal secondary retainer / Molded from heat-stabilized, impact-resistant PBT resin / Component Part Number: 6188-0108 / Alternate OEM Identifier: 61880108.

Applications & Fitment: High-reliability waterproof male electrical connector assembly engineered for demanding under-bonnet, chassis, and exterior lighting environments. Heavily specified across Japanese OEM vehicle platforms—including Toyota, Lexus, Nissan, Honda, Mazda, and Subaru—for wheel speed / ABS sensors, fog lamp circuits, washer fluid pumps, horn feeds, and inline body-to-chassis wiring connections requiring 2.3mm (090) male tab terminals and individual wire seals. Features an external mounting slot to secure the connector body directly to vehicle chassis brackets, preventing strain and unwanted movement under severe vibration. Engineered to operate reliably across extreme thermal conditions from -40 up to 120 degrees Celsius. Essential catalog stock for auto-electricians, motorsport harness builders, and automotive trade distributors.

Technical Attributes:

- Manufacturer Part Number: 6188-0108 / 61880108 (Brand: Sumitomo Wiring Systems)

- Product Component Classification: TS 090 Sealed Series Male Connector Housing

- Total Position Count: 2-Way / 2-Cavity Male Plug

- Cavity Layout Matrix: 1x2 Single-Row Inline Configuration Profile

- Terminal System Compatibility: Accepts Sumitomo TS 090 Series 2.3mm (090) Male Blade Contacts (e.g., 8100-0457, 8100-0458, 8100-0459 series)

- Mounting Provision: Integrated Slot for Inline Chassis Bracket/Stay Fixation

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (Requires compatible 090 wire seals such as 7165-0349, 7165-0395)

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Light Grey Body

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way male housing assembly. Male crimp tab terminals, individual wire seals, and mating female connector housing assemblies (e.g., Sumitomo 6189-0199 / 6189-0100) are purchased separately. Multi-tier trade volume discounts apply automatically at checkout.
