Yazaki 7283-7596 0.64(025) Series 16-Way Female Unsealed Plug | Auto-Click

Terminals are not included

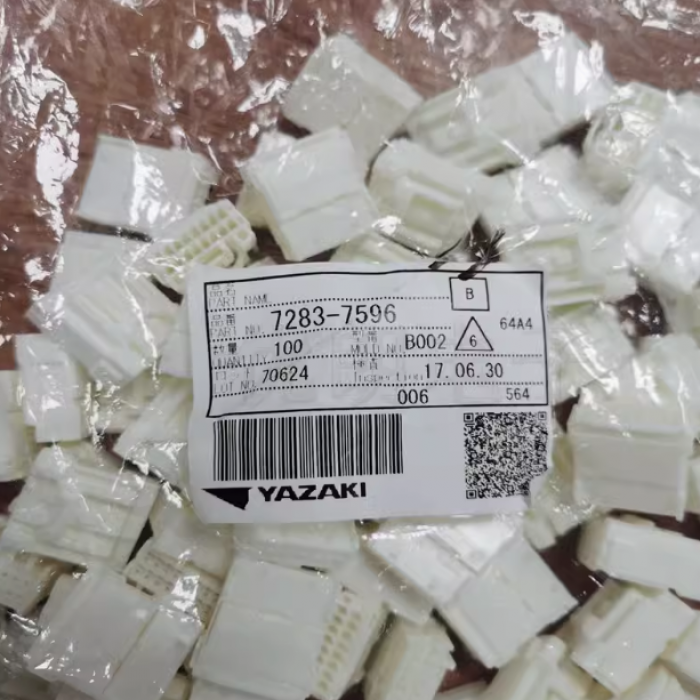

The Component: Genuine Yazaki 7283-7596 16-way female automotive unsealed connector housing plug. 0.64(025) Connectors Series 16-position receptacle socket casing (Natural / PBT / Unsealed / Loose Piece).

Series Taxonomy: Yazaki 0.64(025) Connectors Series System. A precision-engineered, high-density Japanese automotive interconnect platform developed by Yazaki. This ultra-compact mini-format architecture is engineered to establish secure low-voltage signaling networks, optimize space utilization in dense wiring environments, and maintain flawless continuity across sensitive electronic system arrays without compromising mechanical strength.

Connector Interface: 16-position (16-way) multi-row female socket plug configuration optimized around a micro-format 0.64mm (.025 inch) flat blade terminal interface. Designed with precise inner contact track paths to cleanly accept Yazaki 0.64 series female socket receptacle contacts.

Locking and Security: Formulated explicitly for high-density, low-voltage unsealed cabin or protected electrical environment applications. Features an integrated primary mechanical locking arm structured directly into the housing profile to ensure a positive, high-vibration snap-fit alignment when coupled with its mating partner. Operating within a designated automotive thermal threshold certified from -30 to +80 degrees Celsius, it provides a stable low-voltage, low-current initial contact resistance constraint capped strictly at 5 mΩ Max, supported by an insulation resistance floor of 100 MΩ Min (tested at 500V DC).

Mating Complement: Designed for clean wire-to-wire or wire harness network routing. Mates directly by clicking into its corresponding 16-way male inline tab partner housing assembly under Yazaki part number 7282-7596, establishing a secure, zero-clearance inline junction block.

Common Applications: Extensively specified as a factory original equipment (OE) internal mainstay across prominent Japanese and global passenger vehicle networks, most prominently within Toyota, Lexus, Kia, Nissan, Honda, and Subaru vehicle platforms. Universally recognized throughout the auto-electrical trade as a primary wiring harness repair interface for high-pole sub-dash modules, instrument cluster panels, multifunctional steering wheel cables, cruise control plug modules (such as Carnival models), steering column switch assemblies, body control module (BCM) links, and specialized infotainment telemetry lines. Highly vulnerable to internal partition cracking, locking latch breakage from age-related plastic embrittlement, or contact lane damage if pried open aggressively with uncalibrated tools during routine dashboard electronics diagnostics or custom harness overhauls.

Yazaki 7283-7596 0.64(025) Series 16-Way Unsealed Female Cabin & Steering Wheel Module Housing

Eliminate intermittent cabin data dropouts, resolve erratic cruise control or steering wheel telemetry faults, and reinstate flawless factory-standard physical continuity across your interior wiring layouts with the genuine Yazaki 7283-7596 16-way female unsealed connector housing. Precision-manufactured to strict Tier-1 original equipment global automotive engineering parameters by Yazaki, this 16-pin micro 0.64mm contact carrier block is an indispensable piece for executing professional dashboard loom restorations, custom multi-circuit splicing, and clean trade auto-electrical repair overhauls. Optimized to manage low-voltage, low-current system communication loops, it establishes an ultra-stable signal route that safely isolates up to 16 active circuits while constraining initial low-voltage electrical resistance to an exceptional 5 mΩ Max.

The 7283-7596 female carrier block is injection-molded from a premium, heat-stabilized Polybutylene Terephthalate (PBT) compound finished in a factory natural/off-white profile, ensuring outstanding structural impact defense, high dimensional stability, and complete structural rigidity across all 16 contact lanes. Designed specifically to navigate tight under-dash and console spaces where bulky interconnect profiles fail to clear, it handles fine-gauge automotive wiring cleanly. This authentic replacement component allows independent auto-electrical trade specialists, diagnostic tuning technicians, and motorsport wiring builders to execute highly precise, factory-correct multi-pin circuit overhauls.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 7283-7596 (Brand: Yazaki / Japan Genuine Class)

- Configuration: 16-Position / 16-Way Female Receptacle Housing, Multi-Row Layout

- Product Series Taxonomy: 0.64(025) Connectors Series / High-Density Miniature Class

- Mating Blade/Tab Size Compatibility: 0.64mm (.025 inch standard automotive mini footprint)

- Number of Cavities/Positions: 16 Pins female matrix

- Environmental Rating: Unsealed / Moisture-Protected Cabin Profile

- Connection Type Profile: Wire Harness Connector / Wire-to-Wire

- Component Physical Dimensions: Outer Length 23.65mm | Width 21.70mm | Height 13.70mm

- Shroud Color Profile: Factory Natural (Off-White)

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Electric Current Classification: VERY SMALL / Capped at 3A continuous reference limit (Ref)

- Low Level Initial Contact Resistance: 5 mΩ Maximum constraint

- Insulation Resistance Rating: 100 MΩ Minimum threshold (at 500V DC)

- Withstanding Voltage Capacity: 1000V AC (for 1 minute continuous threshold)

- Operating Temperature Envelope: Certified from -30 to +80 degrees Celsius

- Target Terminal Interface Compatibility: Accepts standard Yazaki 0.64 series female socket contacts (e.g., 7116-4660-02, 7116-4660-08, or 7116-6520-02)

- Mating Male Counterpart Shroud: Pairs seamlessly with Yazaki 16-way male tab housing 7282-7596

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.

Family 0.64(025) Connectors

Type -

Yazaki Part Number 7283-7596

Connection Type Wire to Wire

Wire to Board

Wire to Device

Unsealed/Sealed Unsealed

Male/Female Female

Number of Poles 16

Tab Width mm(inches) 0.64(025)

Material PBT

Plating -

Colour Natural

Rating -

Mating Part Numbers 7282-7596

7382-3804
