7116-4660-08

Yazaki 7116-4660-08 0.64(025) Gold-Plated Female Terminal

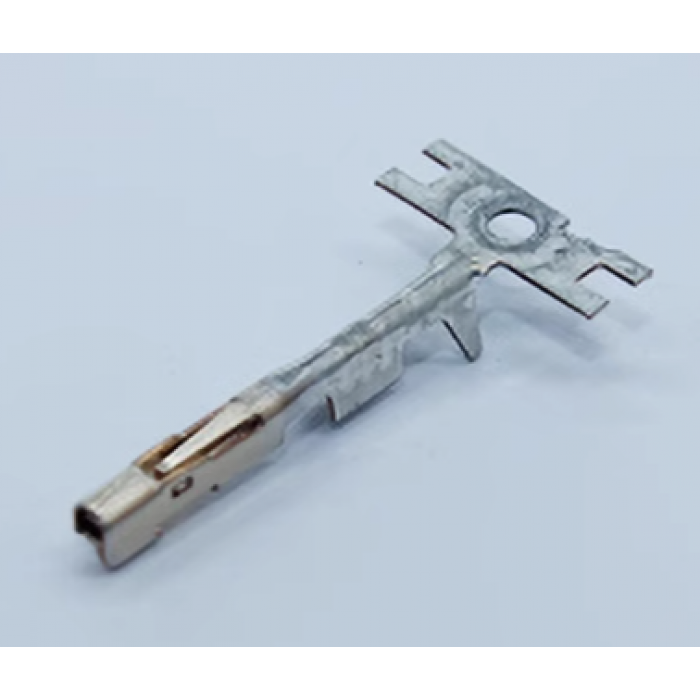

The Component: Genuine Yazaki 7116-4660-08 female crimp receptacle contact terminal. 0.64(025) Connectors Series micro-format unsealed female socket terminal (Copper Alloy / Gold Plated / Loose Piece / Heavy-Duty Electric Current Classification: VERY SMALL).

Series Taxonomy: Yazaki 0.64(025) Connectors Series System. A precision-engineered, high-density Japanese automotive interconnect platform developed by Yazaki. This ultra-compact mini-format architecture is engineered to establish secure low-voltage signaling networks, optimize space utilization in dense wiring environments, and maintain flawless continuity across sensitive electronic system arrays without compromising mechanical strength.

Terminal Interface: Miniature 0.64mm (.025 inch) female blade socket receptacle layout. Engineered specifically with robust internal mechanical tension structures to securely house low-voltage communication paths, logic arrays, and critical micro-electronic modules.

Locking and Security: Formulated explicitly for high-density unsealed cabin or moisture-protected control environment configurations. Stamped from a heavy-gauge premium copper alloy, the terminal shell is finished in a high-grade factory gold plating (indicated by the -08 suffix), which provides peerless anti-oxidation qualities, exceptional corrosion resistance, and eliminates terminal fretting degradation across critical low-voltage lines. Features a specialized primary mechanical locking lance alignment configured to anchor firmly inside multi-position plug housings, establishing an ultra-stable connection path that constrains low-voltage electrical resistance to an exceptional 5 mΩ Max, supported by a minimum insulation resistance floor of 100 MΩ Min (tested at 500V DC).

Mating Complement: Mates directly with its corresponding 0.64mm male flat blade tab pin partner under Yazaki part number 7114-4764-08 (or related 0.64 series gold-plated male variants), designed to nest uniformly within specialized high-density unsealed multi-way carrier blocks (such as 8-pole 7283-6483, 16-pole 7283-7596, or related cabin junction modules).

Common Applications: Extensively specified for low-voltage signal paths, instrument cluster telemetry panels, steering wheel switch modules, cruise control nodes, body control module (BCM) junctions, and onboard diagnostic arrays across global passenger transport vehicles. Deployed widely within major OEM global electrical architectures, notably Toyota, Lexus, Nissan, Kia, Honda, and Subaru interior cabins. Highly susceptible to high-resistance hotspots or circuit signal dropouts if crimped with uncalibrated manual tooling, or physical throat deformation if forced incorrectly into a misaligned male header pin during field diagnostic service or cabin console restorations.

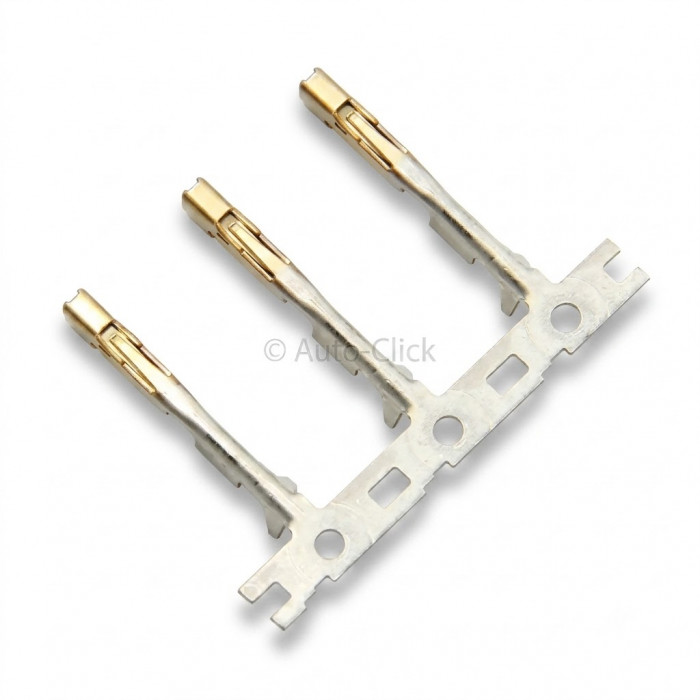

Yazaki 7116-4660-08 0.64(025) Series 0.64mm Gold-Plated Female Receptacle Contact Terminal

Eliminate data dropouts on your primary cabin electronics and safeguard low-voltage telemetry systems with the genuine Yazaki 7116-4660-08 0.64(025) series unsealed female receptacle contact terminal. Precision-stamped to strict Tier-1 original equipment automotive standards by Yazaki, this high-density micro terminal pin is an essential component for fine-gauge wire splicing, instrument panel repairs, and control module harness rebuilds. Designed around a high-conductivity premium copper alloy core, it is finished in a specialized factory gold plating profile, creating an incredibly stable, ultra-low resistance conduction surface optimized to manage data paths cleanly while limiting allowable current continuous limits safely to 3A reference limits.

The 7116-4660-08 terminal is engineered specifically to accept micro-gauge, thin-wall automotive power cables cleanly across CAVS wire types from 0.30mm² to 0.50mm² cross-sections. Its dual-wing rear insulation cradle works in perfect structural harmony with unsealed multi-position connector channels to maintain secure grip profiles without damaging fine conductors. This authentic replacement terminal allows automotive electronic specialists, diagnostic technicians, and aftermarket luxury accessory installers to deliver lasting, factory-correct low-voltage circuit overhauls.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 7116-4660-08 (Alternative reference: 7116466008 / Brand: Yazaki / Japan)

- Configuration: 0.64mm Female Socket Crimp Receptacle Terminal Contact

- Product Series Taxonomy: 0.64(025) Connectors Series / High-Density Miniature Class

- Mating Tab Interface Width: 0.64mm (.025 inch standard automotive mini footprint)

- Physical Dimensions: Length 15.60mm | Width 1.55mm | Height 2.20mm

- Base Structural Material: High-Conductivity Premium Copper Alloy

- Plating Specification Profile: High-Grade Factory Gold Plated Finish (-08 Suffix)

- Electric Current Classification: VERY SMALL (3A continuous reference limit)

- Target Wire Cross-Section Capacity: Accommodates micro-gauge CAVS thin-wall 0.30mm² to 0.50mm² automotive wire variants

- Mating Male Counterpart Pin: Connects with Yazaki 0.64mm male tab contact 7114-4764-08

- Associated Housing Compatibility: Fits securely inside 0.64(025) series multi-way unsealed housings (e.g., 7283-6483, 7283-7596, and 7283-7199-90)

- Low-Voltage Initial Contact Resistance: Capped strictly at 5 mΩ Maximum constraint

- Insulation Resistance Capability: 100 MΩ Minimum threshold (at 500V DC)

- Dielectric Withstanding Voltage Capacity: 1000V AC (for 1 minute continuous threshold)

- Operating Temperature Envelope: Certified from -30 to +80 degrees Celsius

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent commercial workshops, precision electronic repair labs, and trade auto-electrical stockists.

Classified Parts Terminal

Family 0.64(025) Connectors

Mating Part Numbers 7114-4764-08

Unsealed/Sealed Unsealed

Male/Female Female

Tab size (mm) 0.64

Materials COPPER ALLOY

Size (mm) (Outer shape of parts) Length 15.60

Plating Gold Plating

Wire Type CAVS

Size (Min) 0.30

Size (Max) 0.50
