Yazaki 7282-7596 0.64(025) Series 16-Way Male Unsealed Plug | Auto-Click

Terminals are not included

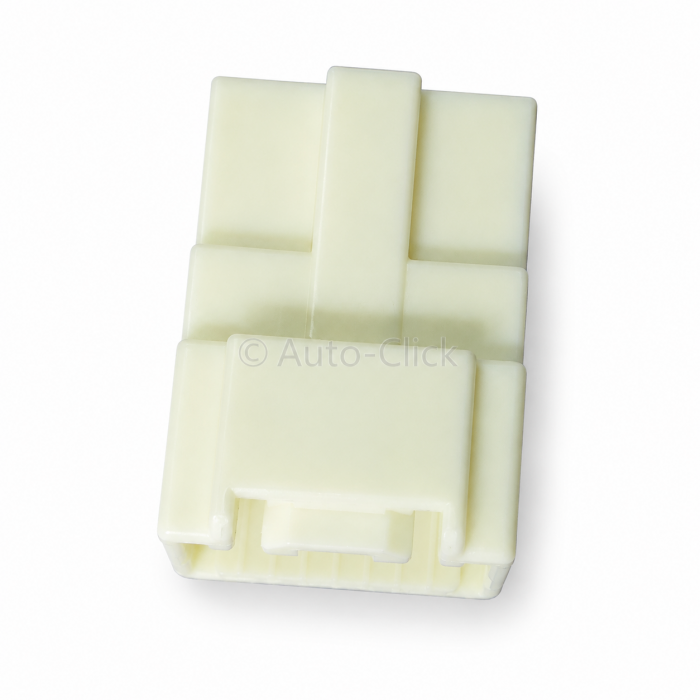

The Component: Genuine Yazaki 7282-7596 16-way male automotive unsealed connector housing. 0.64(025) Connectors Series 16-position male tab casing (Natural / PBT / Unsealed / Loose Piece).

Series Taxonomy: Yazaki 0.64(025) Connectors Series System. A precision-engineered, high-density Japanese automotive interconnect platform developed by Yazaki. This ultra-compact mini-format architecture is engineered to establish secure low-voltage signaling networks, optimize space utilization in dense wiring environments, and maintain flawless continuity across sensitive electronic system arrays without compromising mechanical strength.

Connector Interface: 16-position (16-way) multi-row male tab configuration optimized around a micro-format 0.64mm (.025 inch) flat blade terminal interface. Designed with precise inner contact track paths to cleanly accept Yazaki 0.64 series male pin contacts.

Locking and Security: Formulated explicitly for high-density, low-voltage unsealed cabin or protected electrical environment applications. Features an integrated primary mechanical locking arm structured directly into the housing profile to ensure a positive, high-vibration snap-fit alignment when coupled with its mating partner. Operating within a designated automotive thermal threshold certified from -30 to +80 degrees Celsius, it provides a stable low level initial contact resistance constraint capped strictly at 5 mΩ Max, supported by an insulation resistance floor of 100 MΩ Min (tested at 500V DC).

Mating Complement: Designed for clean wire-to-wire or wire harness network routing. Mates directly by clicking into its corresponding 16-way female inline socket partner housing assembly under Yazaki part number 7283-7596, establishing a secure, zero-clearance inline junction block.

Common Applications: Extensively specified as a factory original equipment (OE) internal mainstay across prominent Japanese and global passenger vehicle networks, most notably within Toyota, Lexus, Nissan, Honda, and Subaru vehicle platforms. Universally recognized throughout the auto-electrical trade as a primary wiring harness repair interface for high-pole sub-dash modules, instrument cluster panels, steering column switch assemblies, body control module (BCM) links, and specialized infotainment telemetry lines. Highly vulnerable to internal partition cracking, locking latch breakage from age-related plastic embrittlement, or contact lane damage if pried open aggressively with uncalibrated tools during routine dashboard electronics diagnostics or custom harness overhauls.

Yazaki 7282-7596 0.64(025) Series 16-Way Unsealed Male Cabin & Multi-Pin Module Housing

Eliminate intermittent cabin data dropouts, resolve erratic instrumentation telemetry faults, and reinstate flawless factory-standard physical continuity across your interior wiring layouts with the genuine Yazaki 7282-7596 16-way male unsealed connector housing. Precision-manufactured to strict Tier-1 original equipment global automotive engineering parameters by Yazaki, this 16-pin micro 0.64mm contact carrier block is an indispensable piece for executing professional dashboard loom restorations, custom multi-circuit splicing, and clean trade auto-electrical repair overhauls. Optimized to manage low-voltage, low-current system communication loops, it establishes an ultra-stable signal route that safely isolates up to 16 active circuits while constraining initial low-voltage electrical resistance to an exceptional 5 mΩ Max.

The 7282-7596 male carrier block is injection-molded from a premium, heat-stabilized Polybutylene Terephthalate (PBT) compound finished in a factory natural/off-white profile, ensuring outstanding structural impact defense, high dimensional stability, and complete structural rigidity across all 16 contact lanes. Designed specifically to navigate tight under-dash and console spaces where bulky interconnect profiles fail to clear, it handles fine-gauge automotive wiring cleanly. This authentic replacement component allows independent auto-electrical trade specialists, diagnostic tuning technicians, and motorsport wiring builders to execute highly precise, factory-correct multi-pin circuit overhauls.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 7282-7596 (Brand: Yazaki / Japan Genuine Class)

- Configuration: 16-Position / 16-Way Male Tab Housing, Multi-Row Layout

- Product Series Taxonomy: 0.64(025) Connectors Series / High-Density Miniature Class

- Mating Blade/Tab Size Compatibility: 0.64mm (.025 inch standard automotive mini footprint)

- Number of Cavities/Positions: 16 Pins

- Environmental Rating: Unsealed / Moisture-Protected Cabin Profile

- Connection Type Profile: Wire-to-Wire / Wire Harness Connector

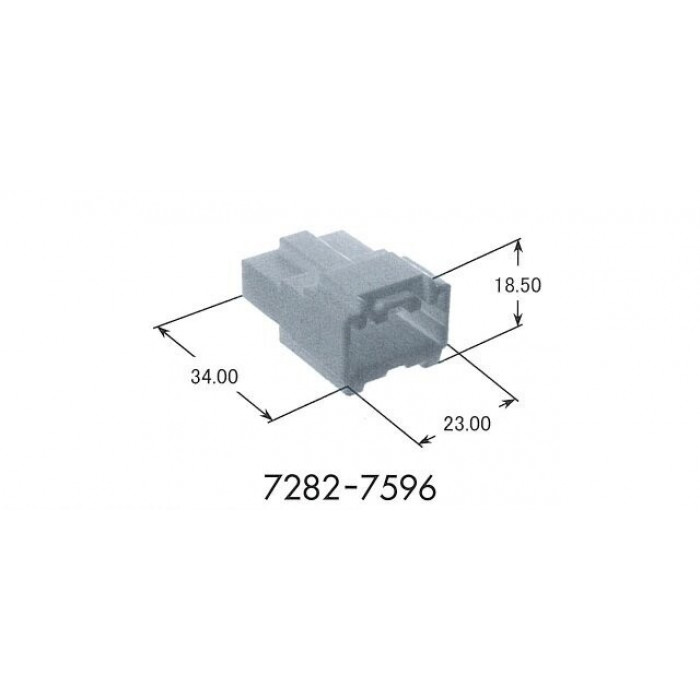

- Component Physical Dimensions: Outer Length 34.00mm | Width 23.00mm | Height 18.50mm

- Shroud Color Profile: Factory Natural (Off-White)

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Electric Current Classification: VERY SMALL / Capped at 3A continuous reference limit

- Low-Voltage Initial Contact Resistance: 5 mΩ Maximum constraint

- Insulation Resistance Rating: 100 MΩ Minimum threshold (at 500V DC)

- Dielectric Withstanding Voltage Capacity: 1000V AC (for 1 minute continuous threshold)

- Operating Temperature Envelope: Certified from -30 to +80 degrees Celsius

- Target Terminal Interface Compatibility: Accepts standard Yazaki 0.64 series male tab pin contacts (e.g., Tin-Plated 7114-4764-02 or Gold-Plated 7114-4764-08)

- Mating Female Counterpart Shroud: Pairs seamlessly with Yazaki 16-way female socket receptacle plug 7283-7596

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.

Family 0.64(025) Connectors

Type -

Yazaki Part Number 7282-7596

Connection Type Wire to Wire

Unsealed/Sealed Unsealed

Male/Female Male

Number of Poles 16

Tab Width mm(inches) 0.64(025)

Material PBT

Plating -

Colour Natural

Rating -

Mating Part Numbers 7283-7596
