Sumitomo 6188-0047 TS Series 2-Way Male Sealed Shroud | Auto-Click

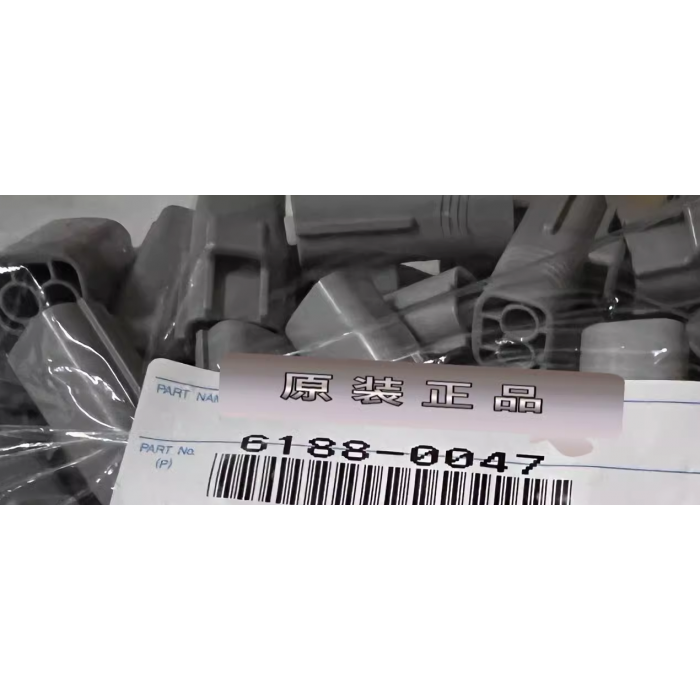

The Component: Genuine Sumitomo 6188-0047 2-way male automotive sealed connector housing plug.

TS Sealed Series 2.3mm (.090) 2-position single-row male tab inline shroud casing (Dark Grey / PBT / Sealed / Inline Shroud / Includes Clip Installation Structure / Toyota Cross-Ref: 90980-10842).

Applications & Fitment: Designed as a primary factory original equipment (OE) inline wiring harness repair solution for critical engine management and vehicle stability networks. Most notably specified across global Toyota, Lexus, and premium Japanese vehicle platforms (matching Toyota cross-ref: 90980-10842) as the definitive male shroud partner for distributor lines, specialized knock sensors, under-hood auxiliary accessories, and harsh-environment sensor links. Highly vulnerable to road-grime degradation, external locking tab fracture from age-related engine bay heat soak, or bracket slot shearing if removed forcefully during field maintenance.

Technical Attributes:

- Manufacturer Part Number: 6188-0047 (Brand: Sumitomo Connectors / Japan Genuine Class)

- Authentic Vehicle Fleet Cross-Reference: Toyota/Lexus Part Number: 90980-10842

- Configuration: 2-Position / 2-Way Male Tab Shroud Housing, Single-Row 1x2 Layout Matrix

- Product Series Taxonomy: TS Sealed Series / 2.3mm (.090) Waterproof Automotive Class

- Terminal Seating Dimension: 2.3mm Flat male tab contact width tracking matrix

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Dark Grey

- Mounting Integration: Features an integrated structural clip slot tracking for secure vehicle chassis bracket mounting

- Environmental Sealing Level: High-performance IP67 waterproof and dustproof sealed design; engineered to maintain a housing cavity sealing threshold of 50kPa Minimum utilizing matching wire seals and dummy plugs

- Circuit Performance Thresholds: Initial contact resistance capped strictly at 3mΩ Maximum (10mΩ Max after durability aging cycles); leak current restricted under 100μA; insulation resistance 100MΩ Minimum

- Target Male Terminal Contacts (Not Included): Fits standard Sumitomo TS 2.3mm male tab terminals (such as 8100-0464 or 8100-0465 depending on wire gauge)

- Associated Rubber Wire Seals (Not Included): Accommodates TS 2.3 series single-wire rubber insulation seals (such as 7165-0349 or 7165-0842) or matching cavity dummy plugs (7160-9465)

- Mating Counterpart Housing: Pairs seamlessly inline as the direct male partner to Sumitomo TS 2-way female socket housing block 6189-0100 (Toyota equivalent: 90980-10843)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
