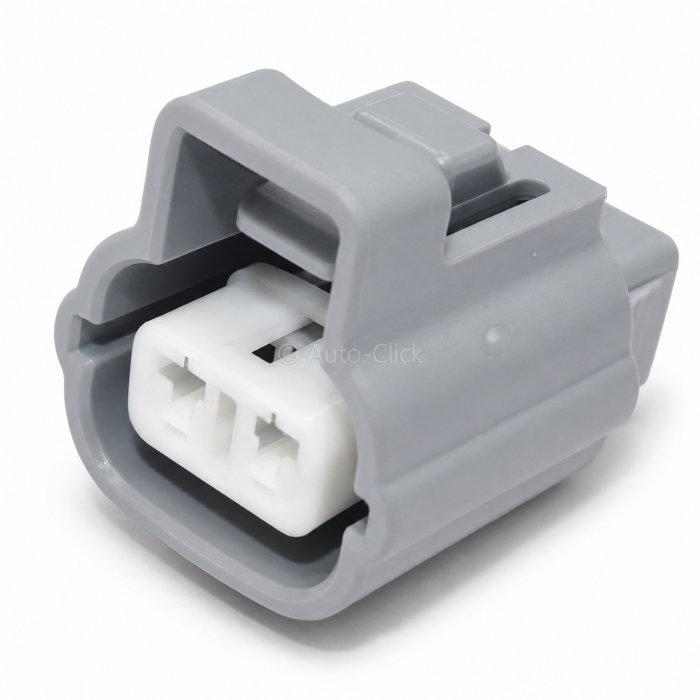

Sumitomo 6189-0100 TS Series 2-Way Female Sealed Plug

The Component: Genuine Sumitomo 6189-0100 2-way female automotive sealed connector housing plug. TS Sealed Series 2.3mm (.090) 2-position single-row socket receptacle casing (Light Grey / PBT / Sealed / Inline Housing / Includes Terminals and Seals Kit / Toyota Cross-Ref: 90980-10843).

Applications & Fitment: Designed as a primary factory original equipment (OE) wiring harness repair solution for critical engine management, vehicle stability, and safety control systems. Most notably specified across global Toyota, Lexus, and premium Japanese vehicle platforms (such as the Toyota Vitz SCP10 series 1SZ engine lines) as a high-reliability interface for distributor lines, specialized sensor monitors, and harsh under-hood auxiliary connections. Highly vulnerable to primary external thumb-locking latch fractures from age-related engine bay heat soak, or inner contact channel throat wear when back-probed aggressively during garage electrical diagnostics.

Technical Attributes:

- Manufacturer Part Number: 6189-0100 (Brand: Sumitomo Connectors / Japan Genuine Class)

- Authentic Vehicle Fleet Cross-Reference: Toyota/Lexus Part Number: 90980-10843

- Auto-Click Core System Identifier: Our Part Number 2-AC614 (Verified Stock Allocation)

- Configuration: 2-Position / 2-Way Female Receptacle Housing, Single-Row 1x2 Layout Matrix

- Product Series Taxonomy: TS Sealed Series / 2.3mm (.090) Waterproof Automotive Class

- Terminal Seating Dimension: 2.3mm Flat female socket contact width tracking matrix

- Base Structural Compound: Premium High-Temperature Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Light Grey

- Environmental Sealing Level: High-performance IP67 waterproof and dustproof sealed design; features an initial seal rating of 50kPa Minimum (30kPa Min following durability lifecycle testing) utilizing integrated internal silicone perimeter seals and individual rear single-wire rubber seals (SWS)

- Circuit Performance Thresholds: Initial contact resistance capped strictly at 3mΩ Maximum (10mΩ Max after durability aging cycles); leak current restricted under 100μA; insulation resistance 100MΩ Minimum

- Target Female Terminal Contacts (Included): Fits standard Sumitomo TS 2.3mm female socket terminals (e.g., 8100-0460, 8100-0461, 8100-0462, or 8100-1344)

- Associated Rubber Wire Seals (Included): Accommodates TS 2.3 series single-wire rubber insulation seals (e.g., 7165-0349, 7165-0842, 7165-0395, or 7165-0351) or matching cavity dummy plugs (e.g., 7160-9465)

- Mating Counterpart Housing: Pairs seamlessly inline as the direct female partner to Sumitomo TS 2-way male inline tab shroud block 6188-0047

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
