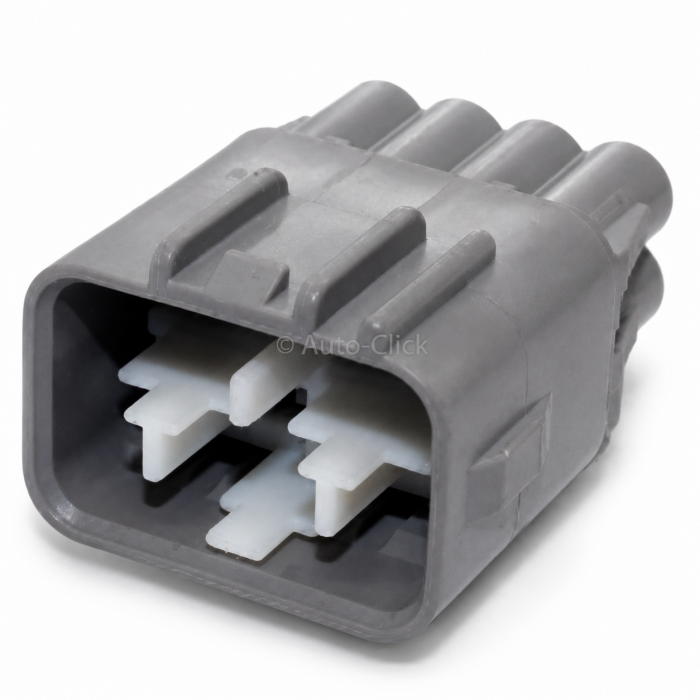

Yazaki 7282-1081-40 8-Way Male 090II Sealed Connector Housing

The Component: Genuine Yazaki Corporation OEM 8-position sealed male connector housing / Premium 2.3II (090II) series waterproof automotive inline plug / Dual-row 2x4 cavity matrix layout / Primary external top locking latch / Internal secondary TPA locking retainer / Molded from heat-stabilized PBT resin / Component Part Number: 7282-1081-40 / Alternate OEM Identifiers: 7282108140 / 7282-1081 / 2.3II 090II 8P Male Light Gray.

Applications & Fitment: High-reliability waterproof male electrical connector housing engineered for severe under-bonnet, headlight, and transmission wiring environments across Japanese OEM vehicle platforms (Toyota, Lexus, Nissan, Mazda). Heavily specified for headlight harness assemblies, automatic transmission sub-looms, engine bay junction connectors, and inline body-to-chassis connections requiring 2.3mm (090) male pin terminals and individual wire seals. Features an internal secondary terminal locking mechanism to prevent pin contact back-out under heavy engine vibration and extreme thermal cycling (-40 to 120 degrees Celsius). Essential stock for auto-electrical specialists, headlight retrofitters, wire harness fabricators, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 7282-1081-40 / 7282108140 (Manufacturer: Yazaki Corporation)

- Product Component Classification: 2.3II (090II) Sealed Series Male Connector Housing

- Connector Family Series: Yazaki 2.3II / 090II Sealed Series

- Total Position Count: 8-Way / 8-Pin Male Plug

- Cavity Layout Matrix: 2 Rows x 4 Columns Configuration Profile

- Compatible Tab Size: 2.30 mm (.090 Terminal System)

- Terminal System Compatibility: Accepts Yazaki 2.3II (090II) Series Male Crimp Pins (e.g., 7114-4025, 7114-4026, 7114-4027 series)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (Requires compatible 090II wire seals)

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Light Grey Body

- Physical Outer Dimensions: 37.20mm Length x 31.30mm Width x 25.40mm Height

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 8-way male housing assembly. Male crimp pin terminals, individual wire seals, and mating female connector housing assemblies (Yazaki 7283-1081-40) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
