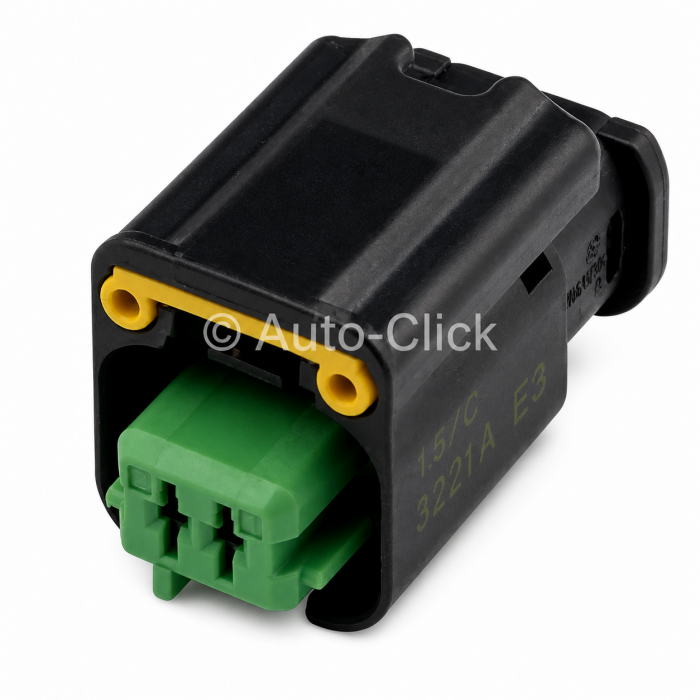

1801176-5

Terminals and seals are included

2 Way Automotive Connector

2W RECEPTACLE HPSL CONNECTOR GREEN

Product Type Features

Connector Shape : Rectangular

Connector & Housing Type : Housing for Female Terminals

Connector System : Wire-to-Wire

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : On the Terminal

Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Positions : 2

Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 16

Nominal Voltage Architecture (V): 16

Body Features

Cable Exit Angle : 180°

Primary Product Color : Green

Connector & Keying Code : 5

Contact Features

Contact Type : Receptacle

Contact Size : 1.5mm

Mating Tab Width : 1.5 mm [ .06 in ]

Contact Current Rating (Max) (A): 8
