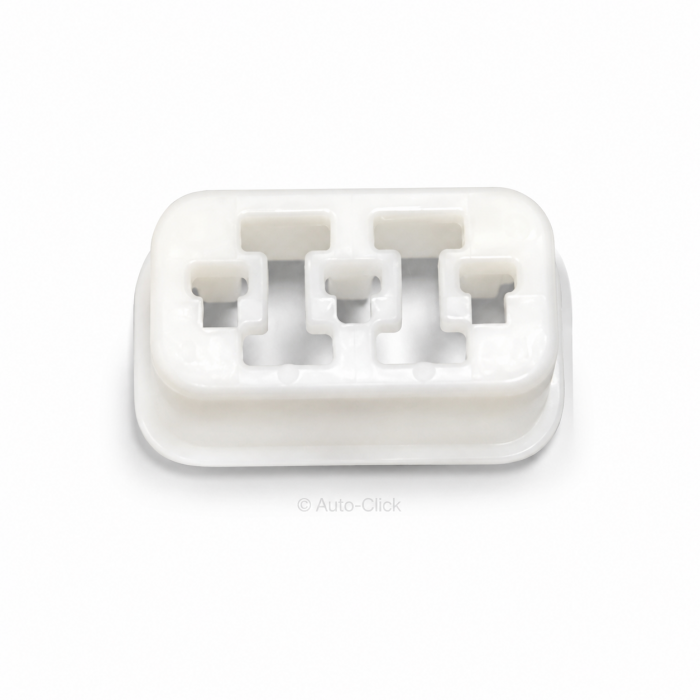

Sumitomo 6918-0324 HW Series 3-Way Female TPA Lock Retainer

The Component: Genuine Sumitomo high-performance secondary connector locking mechanism. HW 2.3mm (090) Sealed Series Terminal Position Assurance (TPA) taxonomy / 3-position front-loading female retainer clip / Standard Keying Profile (Factory White Finish / Premium Heat-Stabilized PBT / Component Stabilization Accessory / Single-Row 1x3 Linear Orientation / Female Housing Contact Secondary Alignment Guard and Retaining Lock / Component Variant Alias: 6918-0324 / Global Order Reference: 69180324).

Applications & Fitment: Engineered as a premium, critical original equipment (OE) specification front-loading secondary terminal assurance retainer clip designed explicitly to reinforce contact seat retention inside high-vibration automotive engine bays, critical timing sensory nodes, and high-exposure transmission-mounted vehicle speed sensor (VSS) runs. This 3-pin female TPA locking plate is an absolute connector rebuilding, trade loom assembly repair, and wiring harness reconstruction component staple across prominent Japanese passenger, utility, and powersports transport platforms—most extensively integrated as the mandatory terminal safety lock for Sumitomo HW series 3-way female connector housings (including the globally standard under-hood plug reference 6189-0130 / Toyota 90980-11020).

It is standardly deployed across high-heat cylinder head brackets and transmission housing drop-points, serving as the front-face primary terminal backing lock that mechanically blocks female 2.3mm box contacts from backing out of their plastic internal retention fingers under severe strain. It features a robust, low-profile snap frame with integrated low-tolerance guidance slots designed to drop directly onto the front face of the matching female socket housing shell. Once pressed from its initial staging position to its final locked seat, it applies absolute mechanical compression across the terminal shoulder arrays, creating a highly stable dual-stage lock completely resilient to continuous drivetrain mechanical harmonics, engine block thermal expansion cycles, and harsh vehicle acceleration forces. Highly critical service accessory for auto-electrical workshops, professional wiring loom manufacturers, and powertrain diagnostic specialists restoring harness reliability, as these independent front clips are standardly fractured, lost, or brittle during terminal de-pinning or field service repair runs.

Technical Attributes:

- Manufacturer Part Number: 6918-0324 / 69180324 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: HW Sealed Series Interconnect Component Accessories

- Component Function: Front-Loading Secondary Terminal Position Assurance (TPA) / Contact Retainer Lock Plate

- Configuration Matrix: 3-Position / 3-Way Contact Envelope Alignment, Single-Row 1x3 Linear Orientation

- Compatible Housing Target: Custom-engineered explicitly to lock down and seat within the front mating face of Sumitomo 3-way female receptacle plugs (most prominently matching outer housing shell reference 6189-0130 / Toyota 90980-11020)

- Terminal Series System Accommodation: Precision optimized to register, align, and secondary-lock 2.3mm (.090 series) nominal automotive female box crimp socket terminals (such as 1500-0106 profiles)

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum structural flex resistance, tight dimensional retention memory, and resistance against under-hood oil/chemical degradation

- Color Profile: Factory Standard White finish for instant field visibility and quick visual quality control checks during factory harness inspection

- Vibration Deflection Level: Implements secondary locking structural support to entirely mitigate terminal backup failures and mechanical connector contact pin walkout

- Installation Protocol: Snap-fits directly into the front receptacle interface face; must be seated into secondary lock stage after crimped wire leads are clicked into the primary housing cavity layout

- Commercial Access: Available as loose individual service clips, trade-pack repair bench refill bags, or bulk trade master logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, specialty harness makers, and trade auto-electrical stockists.
