Original Sumitomo 6189-0130

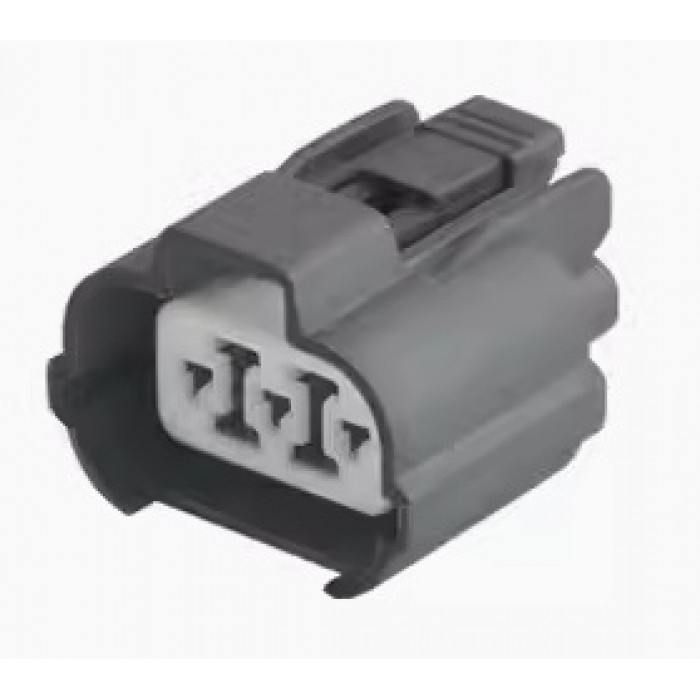

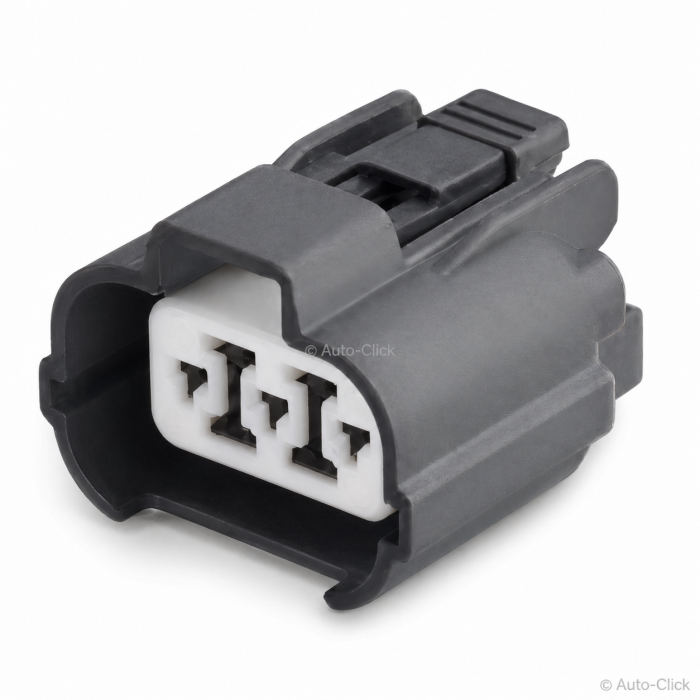

The Component: Genuine Sumitomo high-performance sealed female receptacle connector plug housing. HW 2.3mm (090) Heavy-Duty Sealed Series taxonomy / 3-position single-row female casing / Standard Keying Profile (Dark Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof IP Rated / 1x3 Flat Linear Layout / Female Camshaft Position Sensor, Crankshaft Sensor, Ignition Coil, and Tail Light Assembly Loom Plug / Component Variant Alias: 6189-0130 / Global Order Reference: 61890130 / Automotive Toyota/Lexus OEM Interconnect Cross-Reference: 90980-11020 / 9098011020).

Applications & Fitment: Engineered as a premium, heavy-duty original equipment (OE) specification wire-to-device or wire-to-wire waterproof connection plug designed explicitly for severe top-of-engine sensory arrays, timing synchronization feedback paths, and critical low-slung chassis auxiliary runs. This 3-pin female socket block is an absolute wiring loom repair, performance engine management retrofitting, and diagnostic harness reconstruction staple across prominent international passenger, 4x4 utility, and powersports automotive platforms—most extensively integrated within factory Toyota, Lexus, Honda, Mazda, and Subaru electrical architectures. It is standardly deployed across high-heat, high-vibration under-hood environments, serving as the primary factory connector block plugged directly onto critical camshaft position sensors (CPS), crankshaft rotators, auxiliary speed sensors, and specific vehicle ignition coil configurations.

It features a robust, top-mounted integrated mechanical thumb-release locking clip mechanism, establishing a low-tolerance, positive engagement hold highly resilient to intense cylinder-head mechanical harmonics, continuous engine bay thermal cycling, and high-velocity road dirt bombardment. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its heavy-wall flat 1x3 internal cavities feature an optimized spacing pitch designed to house and safeguard 2.3mm (.090 inch) nominal series female receptacle terminal contacts. Paired with a pre-installed inner rubber circumferential perimeter interface seal and matching independent single-wire cavity rubber cable gates, it forms an absolute weather-tight, IP-rated barrier against high-pressure under-hood washdowns, boiling oil misting, fuel vapors, and winter road salt tracking. Highly critical service item for auto-electrical workshops, professional diagnostic technicians, and performance engine builders overhauling cracked sensor leads, brittle engine bay plugs, or building standalone engine swap wiring harnesses.

Technical Attributes:

- Manufacturer Part Number: 6189-0130 / 61890130 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: HW Sealed Series Interconnect Family

- Configuration: 3-Position / 3-Way Female Receptacle Plug, Single-Row 1x3 Flat Linear Layout

- Toyota/Lexus Factory Equivalent Part Number: 90980-11020 / 9098011020

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.3mm (.090 series) nominal female box crimp sockets (accepts genuine Sumitomo HW/DL/SL series contacts)

- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom Sensor or Device Interface Plug)

- Fastening & Locking Architecture: Features a reinforced top-mounted integrated mechanical thumb release clip lever with an advanced positive-lock retention ramp

- Environmental Sealing Level: High-performance waterproof, dustproof, and oil-resistant isolation utilizing a pre-installed internal rubber perimeter interface seal ring and individual single-wire rubber cavity seals (SWS)

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum structural impact stiffness, high chemical deflection, and robust dimensional thermal memory under hood

- Color Profile: Factory Standard Dark Gray outer housing block assembly accented with a light gray front terminal alignment insert face

- Circuit Rating Threshold: Form-fitted for high-integrity low-voltage analog signaling, square-wave sensor feedback pulses, and primary power tracks operating safely within standard HW 2.3mm current thresholds (up to 15 Amps max continuous)

- Wire Gauge Range Accommodation: Form-fitted for standard automotive low-voltage cross-sections from 0.50mm² up to 2.00mm² (approximately 20 AWG to 14 AWG thin-wall core lines depending on specific wire insulation OD)

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 2.3mm (090) series female crimp sockets (requires individual cavity single-wire rubber cable seals to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire extensions as the direct female partner to matching 3-way male Sumitomo 2.3mm HW series inline interface housing blocks (including 6181-0070) or directly onto corresponding engine-side device sensor sockets

- Commercial Access: Available as loose individual housing shells, convenient trade-pack workshop refill boxes, complete field repair kits containing matched terminals/seals, or bulk trade logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
