5-963716-1
T-046 · TE CONNECTIVITY CONNECTORS
Starting
£0.10
each
exc. VAT
Single unit pricing applies. Contact us for bulk order quotes.
Secure Checkout
Trustpilot
★
★
★
★
★
Rapid UK Shipping
Product Description

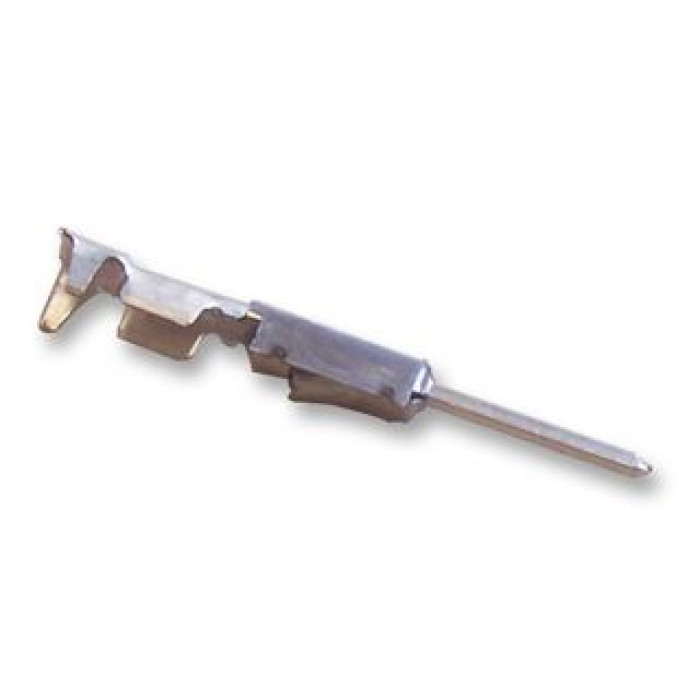

5-963716-1
MQS0,63 Sn tab LL unseal. 0,5-0,75
All MQS, RECEPTACLE AND TAB (128)
Terminal & Splice Type : Tab
Mating Tab Width : .63 mm [ .025 in ]
Mating Tab Thickness : .63 mm [ .025 in ]
Terminal Transmits : 0 – 24 A (Low Power)
Wire Size (AWG): 20
Product Type Features
Sealable : No
Primary Locking Feature : Locking Lance
Wire Type : Copper
Contact Features
Crimp Type : F-Crimp
Typical Current Rating (A): 7.5
Terminal & Splice Type : Tab
Mating Tab Width : .63 mm [ .025 in ]
Mating Tab Thickness : .63 mm [ .025 in ]
Interface Plating : Tin (Sn)
Termination Features
Termination Method : Crimp
Dimensions
Wire Size (AWG): 20
Wire Size (mm²): .5 – .75
Wire Size Search (AWG): 19, 20
Wire Size Search (mm²): .5, .6, .75
Usage Conditions
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Other
Terminal Transmits : 0 – 24 A (Low Power)
