967617-1 / 1-967082-3

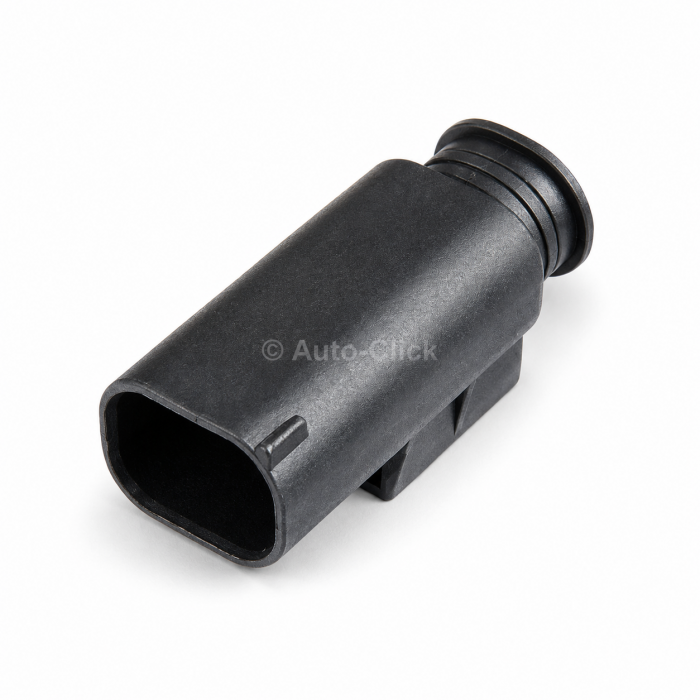

The Component: Replacement 1-967082-3 3-way sealed male tab housing block. MQS (Micro Quadlok System) Series 0.63mm contact classification / High-grade heat-stabilized PBT-GF20 / Jet Black.

Applications & Fitment: Engineered as a reliable, watertight wire-to-wire inline connection hub. This 3-position male tab housing is standard equipment across automotive wiring looms for low-current sensor arrays, high-vibration engine bay auxiliaries, and actuator paths. The housing features an integrated primary terminal locking mechanism to keep contacts perfectly seated despite continuous road shock. Important notice for harness builders: Environmental defense is achieved using Micro Quadlok individual wire seals (SWS). To maintain full IP-rated weatherproofing in exposed environments, all populated channels must use the matching wire seals, and any unused cavities must be sealed with dummy blanking plugs.

Technical Attributes:

- Manufacturer Part Number: 1-967082-3 (Auto-Click SKU: 3-AC101 / Brand: Neutral)

- Product Family Ecosystem: Micro Quadlok System (MQS) Sealed Series

- Component Typology: Male Tab Pin Housing

- Mating System Blade Width: Accepts 0.63mm x 0.63mm MQS male tab contacts

- Material Compound: PBT-GF20 (Polybutylene Terephthalate, 20% Glass Fiber reinforced) for maximum dimensional stability

- Component Color Coding: Jet Black (Keying Code A)

- Number of Positions / Rows: 3 Positions / 1 Row (Linear matrix configuration)

- Electrical Performance: Nominal voltage architecture up to 50VDC; Contact current rating maximum 7.5 Amps depending on wire gauge

- Low-Voltage Circuit Resistance: High conductivity design matching standard MQS specifications

- Environmental Protection Rating: Sealed Waterproof System (Individual cable-track silicone sealing concept)

- Operating Temperature Performance: Extreme-endurance rating from -40°C up to +120°C

- Associated Companion Parts: Mates directly with the matching 3-way female MQS receptacle housing. Accepts MQS 0.63mm series male pin terminals and corresponding diameter-specific wire cavity seals (e.g., standard MQS single wire seals).

- Packaging Format: Available as convenient trade repair kits (connector body, tabs, and seals included) or bulk commercial volume lots for automated harness assembly lines.
