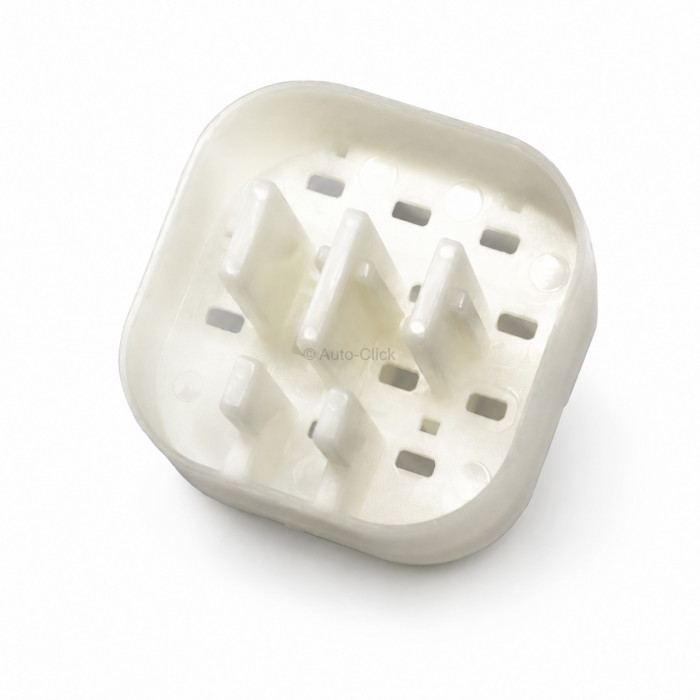

Sumitomo 6918-0337 14-Way Male HW Series TPA Retainer

The Component: Genuine Sumitomo high-performance terminal position assurance (TPA) lock block. HW Sealed Series taxonomy / 14-position multi-row male front retainer casing / Secondary Lock Element (Natural White Housing Face / Premium Heat-Stabilized PBT / Sealed System Component / Multi-Row Configuration Alignment Plate / Male Terminal Back-Out Guard / Component Variant Alias: 6918-0337 / Global Order Reference: 69180337 / Sumitomo Factory Reference: HW09RET-14M).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) secondary terminal locking alignment retainer clip designed explicitly to provide robust terminal retention inside high-vibration automotive engine compartments, severe chassis wiring layouts, and intense powertrain sensor loops. This 14-way male TPA wedge is a mandatory harness build and loom reconstruction staple across premium Japanese automotive platforms and heavy equipment electrical networks—most prominently integrated within Toyota, Lexus, Honda, Mazda, and Nissan factory wiring architectures utilizing the Sumitomo HW Sealed 090 interconnect system. It is engineered to mount directly into the front nose interface of the matching 14-way male connector housing (Sumitomo part number 6181-0077), serving as the primary mechanical safety check for critical multi-core circuits such as complex front-end lighting arrays, body control passthroughs, or auxiliary engine component sub-looms. It features an integrated internal incomplete-insertion detection profile that physically blocks the retainer from snapping flush into its absolute locked seat if any internal male crimp pin is left semi-seated or misaligned inside its independent wire lane. Engineered to conform to rigid tier-1 global engineering guidelines, its high-stiffness guide bars brace directly against the primary plastic terminal locking lances, ensuring absolute terminal position security resilient to continuous engine thermal tracking and high-frequency structural harmonics. Highly vulnerable to tooth fracture, stress warping, or alignment leg loss if service technicians attempt field extraction using blunt workshop picks or aggressive leverage instead of smoothly sliding a micro terminal tool into the designated front release channels.

Technical Attributes:

- Manufacturer Part Number: 6918-0337 / 69180337 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: HW Sealed Series Accessory Family (090 Type System)

- Component Type: Front-Loading Secondary Locking Retainer Clip / Terminal Position Assurance (TPA)

- Configuration: 14-Position / 14-Way Multi-Row Alignment Grid Face Profile

- Target Housing Accommodation: Precision optimized to slide directly into the front mating nose of Sumitomo 14-way male connector housing 6181-0077

- Contact System Terminal Envelope: Tailored to lock and stabilize high-reliability 2.3mm (090 series) nominal blade width Sumitomo male pin terminals

- Fastening & Locking Architecture: Features dual-stage side retention hooks that snap into the main outer connector body shell to establish secondary mechanical terminal lock security

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, rigid dimensional memory, and robust structural impact toughness

- Color Profile: Factory Standard Natural White finish component block for quick visual confirmation of secondary lock engagement during harness inspection

- Operational Thermal Window: Severe-duty engine block and gearbox path layout certified to maintain material elasticity and lock rigidity from -40°C up to +120°C

- Assembly Functional Role: Detects incomplete contact terminal insertions, forces perfect contact centerline layout, and acts as an absolute physical barrier against circuit pin back-out under severe pulling or high vibration loads

- Commercial Access: Available as loose individual workshop repair pieces, bulk trade packaging bags, or complete connector assembly combination runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
