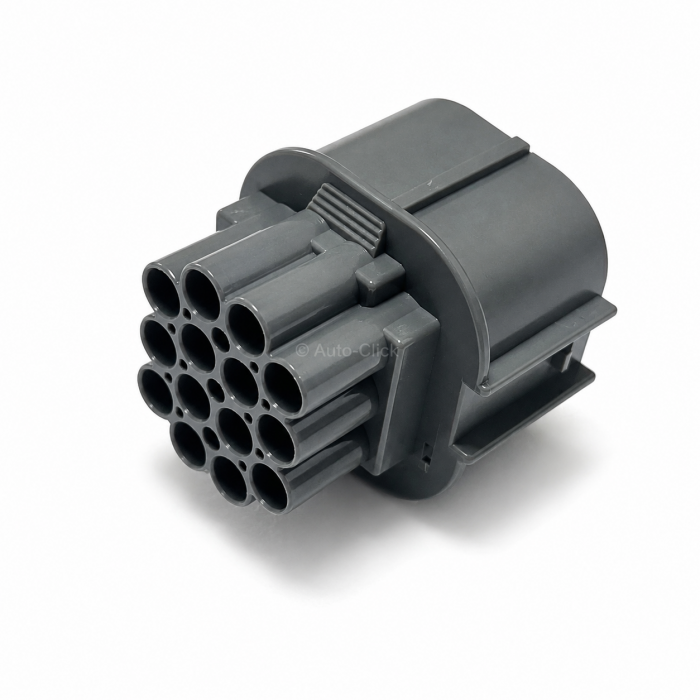

Sumitomo 6181-0077 14-Way Male HW Sealed Series Connector

The Component: Genuine Sumitomo high-performance sealed male plug connector housing. HW Sealed Series taxonomy / 14-position multi-row male casing / Standard Keying Profile (Dark Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof / Multi-Row Grid Layout / Male Inline Main Harness Plug / Component Variant Alias: 6181-0077 / Global Order Reference: 61810077).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) inline wire-to-wire waterproof connection plug designed explicitly for complex multi-core engine bay pass-through paths, heavy duty chassis bulkhead layouts, and primary powertrain control distribution loops. This 14-pin male terminal pin block is a vital wiring loom repair and master harness reconstruction staple across premium Japanese automotive platforms and motorsport applications—most extensively integrated within Toyota, Lexus, Honda, Mazda, and Nissan factory wiring architectures.

It is standardly deployed across high-exposure, high-density vehicle zones, serving as the direct inline male mating partner to the 14-way female Sumitomo connector housing (part number 6189-0136), frequently managing complex front-end lighting arrays, body control passthroughs, or auxiliary engine component sub-looms. It features a robust exterior locking shroud with integrated high-stiffness retention ramps that lock securely into the female connector's mechanical thumb latch, establishing a low-tolerance, positive retention hold resilient to extreme chassis tracking, off-road pounding, and intensive multi-axis structural harmonics. Engineered to conform to rigid tier-1 automotive manufacturing validation guidelines, its internal cavities isolate and position high-reliability 2.3mm (.090 inch) nominal blade width Sumitomo HW series male pin terminals. Utilizing individual silicone single-wire cavity seals (SWS), it forms an absolute waterproof and dustproof IP-rated barrier against high-pressure water blasting, prolonged road salt saturation, and engine compartment chemical tracking. Highly vulnerable to external shroud cracking or tab fracture on older high-mileage chassis routes due to environmental heat-aging, making it a critical item for trade distributors, loom remanufacturers, and professional auto-electrical workshops.

Technical Attributes:

- Manufacturer Part Number: 6181-0077 / 61810077 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: HW Sealed Series Interconnect Family

- Configuration: 14-Position / 14-Way Male Housing Plug, Multi-Row High-Density Grid Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.3mm (090 series) nominal blade width Sumitomo male pin terminals

- Connector Style: Male Tab Housing (Free-Hanging Inline Wire Loom Mating Interface)

- Fastening & Locking Architecture: Features a reinforced external locking shroud ramp to engage firmly with female mechanical thumb latches, paired with an internal front terminal alignment guide

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing a pre-installed inner rubber perimeter interface seal matrix and independent wire cavity seals

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, rigid dimensional memory, and robust structural impact toughness

- Color Profile: Factory Standard Dark Gray housing assembly shroud with a pre-installed white internal front nose retainer guide

- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling networks, complex multi-core data links, and medium-ampacity power delivery lines operating below 32V DC continuous

- Operational Thermal Window: Severe-duty engine compartment and chassis frame route layout certified to maintain material elasticity and seal compliance from -40°C up to +120°C

- Target Male Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 2.3mm (090) HW series male crimp pins (requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms as the direct male partner to matching 14-way female Sumitomo HW series connector housings (such as Sumitomo part number 6189-0136)

- Commercial Access: Available as loose individual workshop repair pieces, bulk trade packaging bags, or master distributor inventory runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
