In Stock
Ships from UK
RoHS
Online Price
£14.30
Wholesale Prices
10 or more
£14.00
100 or more
£12.20
Minimum order quantity
Ships from: Our UK Warehouse
Ships to: Worldwide
Shipping: Royal Mail & UPS
Payment: PayPal, Card, Bank Transfer
64333-0100

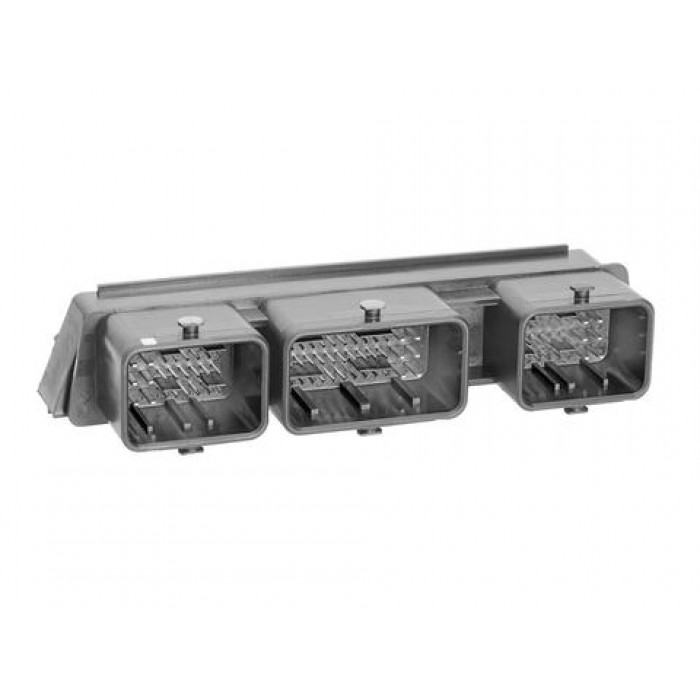

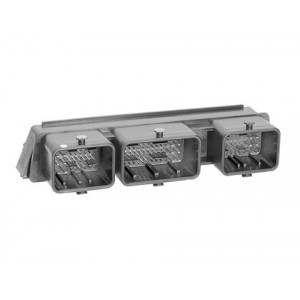

Molex 64333-0100 CMC Header 112-circuit, 3-pocket, Solder Tail
Status Active Category PCB Headers and Receptacles Series 64333 Description CMC Header 112-circuit, 3-pocket, Solder Tail Application Automotive, Power, Wire-to-Board Comments Coding: 32w Black, 48w Brown, 32w Grey Component Type PCB Header Product Family CMC and CMX Sealed, Hybrid, Modular Connectors Product Name CMC UPC 883906844455
| Status | Active | Category | PCB Headers and Receptacles |
|---|---|---|---|
| Series | 64333 | Description | CMC Header 112-circuit, 3-pocket, Solder Tail |
| Application | Automotive, Power, Wire-to-Board | Comments | Coding: 32w Black, 48w Brown, 32w Grey |
| Component Type | PCB Header | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906844455 |
Electrical
Current - Maximum per Contact 12.0A, 6.0A Voltage - Maximum 14V DC
| Current - Maximum per Contact | 12.0A, 6.0A | Voltage - Maximum | 14V DC |
|---|
Physical
Breakaway No Circuits (Loaded) 112 Circuits (maximum) 112 Color - Resin Black Durability (mating cycles max) 20 First Mate / Last Break No Glow-Wire Capable No Guide to Mating Part Yes Keying to Mating Part Yes Lock to Mating Part Yes Material - Plating Mating Tin Material - Resin Nylon Alloy Net Weight 83.100/g Number of Rows 4 Orientation Right Angle Packaging Type Tray Pitch - Mating Interface 2.50mm, 3.70mm Polarized to Mating Part Yes Polarized to PCB Yes Temperature Range - Operating -40° to +105°C Termination Interface Style Solder or Weld
| Breakaway | No | Circuits (Loaded) | 112 |
|---|---|---|---|
| Circuits (maximum) | 112 | Color - Resin | Black |
| Durability (mating cycles max) | 20 | First Mate / Last Break | No |
| Glow-Wire Capable | No | Guide to Mating Part | Yes |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material - Plating Mating | Tin | Material - Resin | Nylon Alloy |
| Net Weight | 83.100/g | Number of Rows | 4 |
| Orientation | Right Angle | Packaging Type | Tray |
| Pitch - Mating Interface | 2.50mm, 3.70mm | Polarized to Mating Part | Yes |
| Polarized to PCB | Yes | Temperature Range - Operating | -40° to +105°C |
| Termination Interface Style | Solder or Weld |
Solder Process Data
Max-Duration 25 Lead-Free Process Capability WAVE Max-Cycle 1 Max-Temp 260
| Max-Duration | 25 | Lead-Free Process Capability | WAVE |
|---|---|---|---|
| Max-Cycle | 1 | Max-Temp | 260 |
