64320-3319
· MOLEX CMC · Our Part Number: 48-AC014 · In Group Stock
Starting
£6.80
each
exc. VAT
| Quantity | Unit Price | Saving |
|---|---|---|
| 10+ | £6.00 |
30-day returns
ISO 9001 principles
Full traceability
UK warehouse
Secure checkout
Accepted:
Product Description

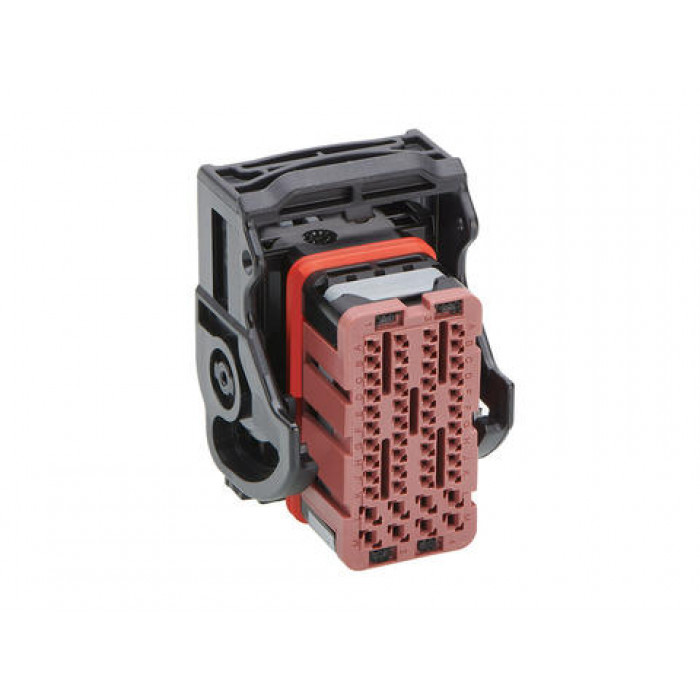

.635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Brown Coding, Mat Sealed
| Status | Active | Category | Connector Housings |
|---|---|---|---|
| Series | 64320 | Description | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Brown Coding, Mat Sealed |
| Application | Automotive, Power, Wire-to-Board | Comments | Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) |
| More Detailed Tech Information | Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906135034 |
Physical
| Circuits Detail | 8 x 1.5mm & 40 x 0.635mm terminals | Circuits (maximum) | 48 |
|---|---|---|---|
| Color - Resin | Brown | Gender | Receptacle |
| Glow-Wire Capable | No | Keying to Mating Part | Yes |
| Lock to Mating Part | Yes | Material - Resin | Polyester |
| Net Weight | 35.711/g | Number of Rows | 4 |
| Packaging Type | Carton | Panel Mount | No |
| Pitch - Mating Interface | 2.54mm, 3.70mm | Polarized to Mating Part | Yes |
| Stackable | No | Temperature Range - Operating | -40° to +125°C |
