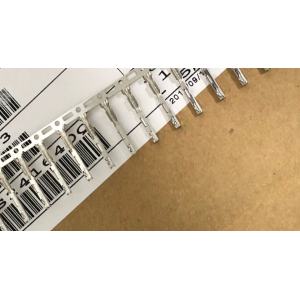

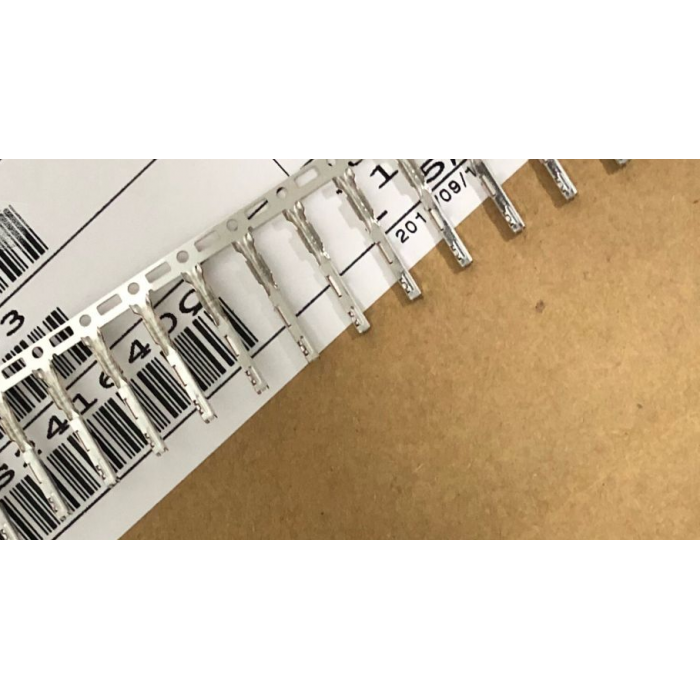

NH series
Terminal For AV Wire
0.64mm (025)
Sealed/Unsealed unsealed
Male/Female F
Tab Size 0.64mm (025)
Size S
Mating parts 8230-5379 (NH series)
Applicable wire size
0.22-0.5mm2
Materials Heat-resistant copper alloy
Surface treatment Tin-plated
Contact resistance
Initial
10mΩ Max.
after durability tests
30mΩ Max.
Leak current 1mA Max.
Insulation resistance 100MΩ Min.
