Sumitomo 6098-5295 40-Way Female NH Series Connector Housing

Sumitomo 6098-5295 40-Way Female NH Series Connector - Gray

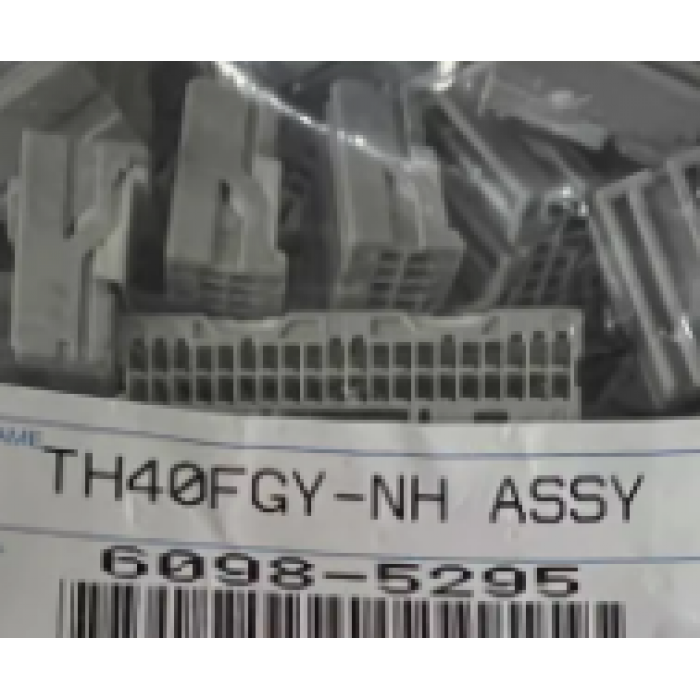

The Component: Genuine Sumitomo high-performance unsealed female receptacle connector plug housing. NH Micro Series taxonomy / 40-position multi-row female casing / Standard Keying Profile (Light Gray Housing Body / Premium Heat-Stabilized PBT / Unsealed Multi-Pole Subsystem Block / High-Density Grid Layout / Female Central Dashboard and ECU Controller Loom Plug / Component Variant Alias: 6098-5295 / Blueprint Identifier: TH40FW-NH / Global Order Reference: 60985295).

Applications & Fitment: Engineered as a premium, high-density original equipment (OE) specification non-waterproof connection plug designed explicitly for intricate in-cabin signal distribution pathways, behind-dashboard instrumentation networks, and complex cabin-to-bulkhead control module routing. This 40-pin micro female socket block is an absolute wiring loom repair and harness reconstruction staple across premium Japanese passenger vehicle platforms—most prominently integrated within Toyota, Lexus, Honda, Nissan, and Subaru factory automotive electrical architectures. It is standardly deployed across highly crowded cockpit zones, serving as a primary multi-circuit interface block plugging directly into Electronic Control Units (ECUs), central body control modules (BCM), main instrument cluster tracking lanes, and complex steering column distribution webs. It features a streamlined mechanical top-mounted primary thumb locking latch lever that clicks firmly over the mating component header's retention ramp, establishing a low-tolerance, positive engagement hold resilient to continuous cabin climate tracking, vehicle floor structural vibrations, and high-frequency structural harmonics.

Engineered to conform to rigid tier-1 automotive manufacturing and trace-purity validation guidelines, its ultra-compact multi-row internal cavities are precision spaced to receive 0.64mm (.025 inch) micro series female socket terminals. It incorporates a pre-installed integrated front-loading front mask matrix layout that physically helps guide male pin terminals smoothly into position during blind mating, preventing bent pins and maximizing centerline contact layout security. Highly vulnerable to top-latch snapping or side housing fracturing if service technicians attempt field extraction using blunt workshop picks or aggressive leverage instead of smoothly depressing the central catch lever.

Technical Attributes:

- Manufacturer Part Number: 6098-5295 / 60985295 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: NH Unsealed Micro Series Interconnect Family (Blueprint Drawing Code: TH40FW-NH)

- Configuration: 40-Position / 40-Way Female Receptacle Plug, High-Density Multi-Row Grid Matrix Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 0.64mm (.025 inch) nominal blade width Sumitomo NH micro series female socket terminals

- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom Cabin Signal or Module Interface Plug)

- Fastening & Locking Architecture: Features an integrated positive locking top-mounted mechanical thumb latch lever paired with a built-in front alignment stabilizer face mask

- Environmental Sealing Level: Unsealed / Non-waterproof indoor cabin specification; designed for sheltered routing areas away from direct liquid exposure or moisture spray

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum structural impact rigidity, high tensile toughness, and excellent dimensional memory

- Color Profile: Factory Standard Light Gray outer housing assembly block with precision molded terminal retention lanes

- Circuit Rating Threshold: Form-fitted for high-integrity low-voltage micro signaling, multi-core data links, and sensory monitoring loops operating safely below standard micro-ampacity thermal thresholds

- Operational Thermal Window: Severe-duty cabin panel, dashboard core, and bulkhead route layout certified to maintain material elasticity and locking hold from -40°C up to +120°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 0.64mm (025) NH micro series female crimp sockets (such as part numbers 8240-0523 or 8240-0552)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms or directly onto PCB/device-side module headers as the direct female partner to matching 40-way male Sumitomo NH series interface connectors (such as male housing 6098-5585 or associated board-mount layouts)

- Commercial Access: Available as loose individual housing shells or complete trade distribution bulk runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, electronics restorers, and trade auto-electrical stockists.
