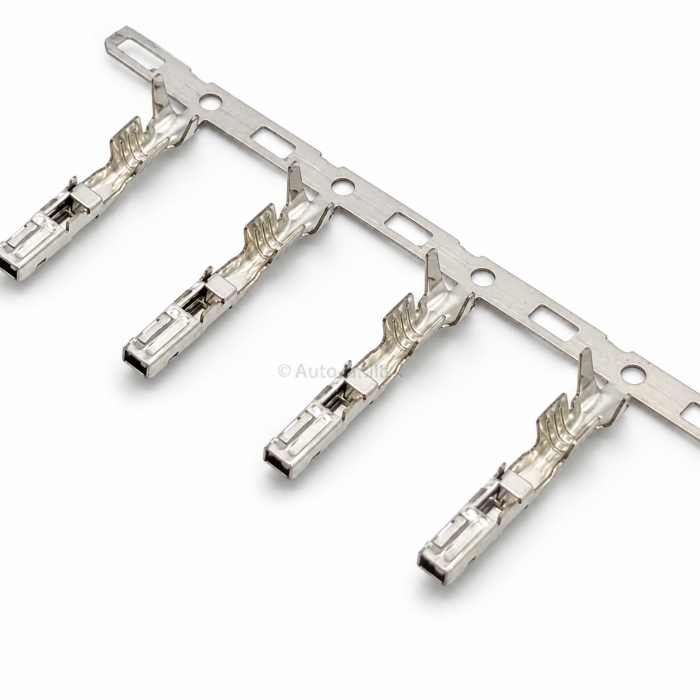

Sumitomo 8240-0213 TS Series 1.5mm (060) Female Terminal Contact

Sumitomo 8240-0213 TS Series 1.5mm (060) Female Terminal Contact

The Component: Genuine Sumitomo high-performance female receptacle crimp contact terminal. TS Unsealed Interconnect taxonomy / Female receptacle terminal contact / Premium Tin-Plated Heat-Resistant Copper Alloy Construction / High-Conductivity Leaf Spring Design / Open-Barrel Wire Contact / Component Variant Alias: 8240-0213 / Global Order Reference: 82400213 / Sumitomo Component Class: Female Terminal Contact for TS 1.5mm (060) Series Connector Housings.

Applications & Fitment: Engineered as a premium, high-conductivity original equipment (OE) specification crimp terminal contact block designed explicitly for automotive cabin power distribution networks, center console infrastructure, switches, and interior control lines. This 1.5mm (.060 inch) nominal blade width female socket contact is an absolute wire harness remanufacturing, custom loom assembly, and localized field repair staple across leading international vehicle platforms—most extensively integrated within Toyota, Lexus, Honda, Nissan, and Tesla factory automotive electrical networks. It is standardly deployed across critical low-to-medium current terminal pathways, serving as the main internal conducting node for steering column switches, power window modules, main instrument clusters, and standard unsealed multi-pole interconnect housing configurations (such as housing block reference configurations 6098-6083, 6098-6097, 6098-6111, and 6098-5604). It features a high-elasticity structural heat-resistant copper alloy leaf assembly that exerts continuous, stable mechanical contact friction over the mating male pin terminal blade, establishing a secure, low-tolerance connection path resilient to continuous chassis vibration and thermal expansion cycles. Engineered to conform to rigid tier-1 automotive manufacturing and contact resistance standards, its open-barrel crimp tail features specialized conductor and insulation ears designed to wrap tightly around core strands and strain-relief wire lines, establishing an air-tight gas crimp matrix that totally eliminates terminal push-back and preserves power delivery purity across continuous service lifetimes. Highly critical service item for auto-electrical workshops, aftermarket accessory installers, fleet maintenance hubs, and harness builders executing terminal overhauls inside factory blocks.

Technical Attributes:

- Manufacturer Part Number: 8240-0213 / 82400213 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: TS Unsealed Series Interconnect Family

- Component Type: Open-Barrel Female Receptacle Socket Crimp Terminal Contact

- Mating Terminal Dimension: Designed to receive 1.5mm (.060 inch) nominal tab width male blade pins

- Base Metallurgical Compound: Premium Heat-Resistant Copper Alloy base metal providing high mechanical structural stiffness and superior electrical conductance

- Surface Finish Treatment: High-grade Tin (Sn) plating for exceptional corrosion protection and oxidation resistance in unsealed wire pathways

- Wire Range Capacity Accommodation: Form-fitted for standard automotive low-voltage cross-sections (accommodating 0.75mm² to 1.25mm² core profiles; typically cross-referenced with AWG 16 to AWG 14 depending on insulation thickness)

- Cable Overall Diameter Window: Fits wire outer insulation diameter lines measuring 1.40mm minimum to 2.30mm maximum

- Contact Resistance Performance: Ultra-low circuit performance profile with an initial threshold limit of 3mΩ maximum, staying below 10mΩ maximum after full service durability testing cycles

- Leakage and Insulation Thresholds: Certified leakage current remains under 3mA maximum with an insulation resistance baseline of 100MΩ minimum

- Crimp Configuration Profile: Open-barrel dual-zone tail structure requiring independent core conductor crimping and insulation strain-relief wrapping

- Housing Integration Compatibility: Precision optimized to click directly into the primary internal retention paths of standard Sumitomo TS unsealed 1.5mm series automotive housing matrix cavities

- Mating Part Reference: Directly mates inline with matching TS series male tab pin terminal **8230-4924**

- Assembly Recommendation: Requires professional open-barrel automotive crimp tools featuring F-crimp profile jaws to guarantee correct wire compaction and complete mechanical strain security

- Commercial Access: Available as loose individual workshop pieces, convenient trade repair refill packs, bulk loose trade boxes, or continuous 5,000-piece reel runs for automated wire processing machinery. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
