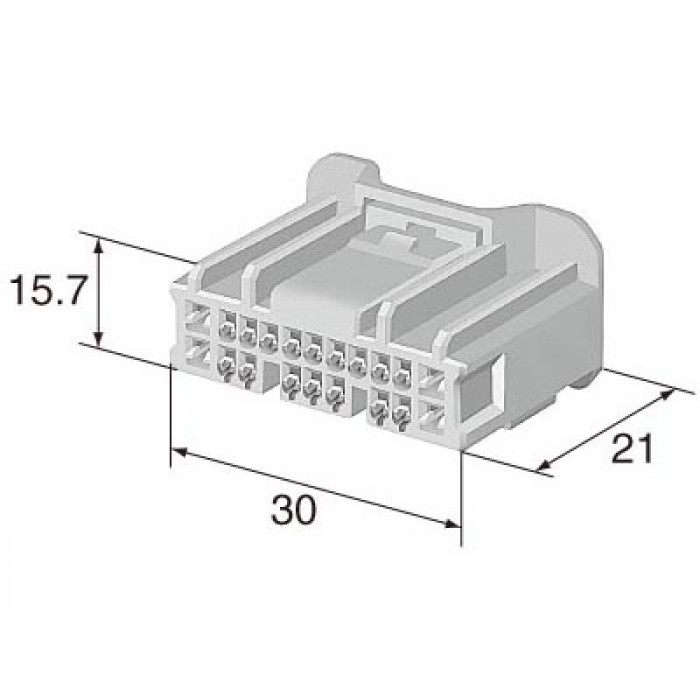

Sumitomo 6098-5622 TS Series 20-Way Female Hybrid Connector Housing
Our part20-AC009 RoHS
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £1.32 | — |
| 50+ | £1.15 | |
| 100+ | £1.00 | |
| 500+ | £0.80 | |
| 1000+ | £0.65 |
Complete your connector
Matching terminals, seals and mating parts for this housing.
Terminals 5
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Connectors and housings 1
Related housings in the same family or pin count.
Price isn't everything
This is a genuine SUMITOMO part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
The Component: Genuine Sumitomo OEM 20-position hybrid female socket connector housing / TS Series unsealed 0.64mm/1.5mm (025/060 class) automotive inline connector socket / Compact dual-cavity combination layout featuring 16 micro signal terminals and 4 medium power terminals / Primary locking mechanism with integrated secondary retainer latch / Molded from premium Polybutylene Terephthalate (PBT) resin / Component Part Number: 6098-5622 / Alternate Identifiers: Sumitomo 6098-5622 / 60985622 / TS 20-Way Hybrid Female / 025/060 20-Pin Female Socket / 6098-5622 Natural / Sumitomo TS 20-Way Female Inline Housing.
Applications & Fitment: High-density unsealed female electrical socket connector housing engineered for cabin interior wiring harnesses, instrument cluster interfaces, body control module (BCM) links, and multi-function steering column assemblies across Japanese OEM platforms (including Toyota, Lexus, Nissan, and Honda). Features a hybrid cavity structure housing 16 micro-sized 0.64mm (025 series) signal terminals alongside 4 medium-sized 1.5mm (060 series) power/ground terminals, enabling simultaneous transmission of low-current sensor data and high-current circuit power within a single compact body footprint. Mates directly with the corresponding 20-way male inline pin connector housing (Sumitomo 6098-5613). Designed for reliable vibration resistance, secure terminal retention, and low insertion force during harness assembly (-40 to 105 degrees Celsius). Essential stock for auto-electricians, vehicle retrofit specialists, Japanese import technicians, and trade distributors.
Technical Attributes:
- OEM Part Number: 6098-5622 / 60985622 (Manufacturer: Sumitomo Wiring Systems)
- Product Component Classification: Hybrid Cavity Female Socket Terminal Connector Housing
- Connector Family Series: Sumitomo TS Series
- Application Profile: Cable-to-Cable Inline Cabin & Body Electronics Connections
- Connection Type: Wire-to-Wire Female Socket Housing Plug
- Total Position Count: 20-Way / 20-Pin Female Plug (20 Poles)
- Hybrid Cavity Distribution: 16 Positions x 0.64mm (025 Class Signal) + 4 Positions x 1.5mm (060 Class Power)
- Terminal System Compatibility: Accepts Sumitomo TS 025 female socket terminals (e.g., 8100-3628, 8100-3629) for 0.64mm cavities AND TS 060 female socket terminals (e.g., 8100-1342, 8100-1343) for 1.5mm cavities
- Directly Mating Counterparts: Sumitomo 6098-5613 (TS Series 20-Way Hybrid Male Inline Connector Housing / Natural)
- Environmental Sealing Capability: Unsealed / Non-Waterproof (Designed for In-Cabin & Dry Environment Installation)
- Structural Material Base: Premium Polybutylene Terephthalate (PBT) Plastic
- Color Profile: Natural / Off-White Body Housing
- Operating Temperature Limit: -40 to 105 degrees Celsius
- Commercial Procurement Status: Provided as an individual unpopulated 20-way female housing assembly. Female crimp terminals (both 0.25 and 0.60 sizes) and mating male housings sold separately as individual piece parts or as part of a complete repair kit depending on stock configuration. Multi-tier trade volume discounts apply automatically at checkout.
