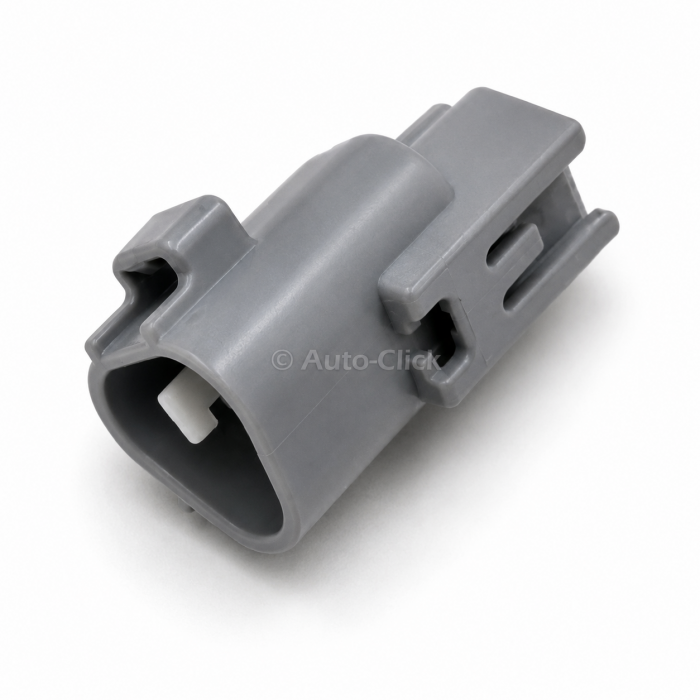

Sumitomo 6188-0099 Toyota 90980-11015 3-Way TS Male Connector Housing

The Component: Genuine Sumitomo Wiring Systems OEM 3-position male pin housing / Premium TS Sealed Series waterproof automotive inline connector / Triangular 3-cavity matrix layout / Top latching catch mechanism / Molded from heat- and chemical-resistant PBT resin / Component Part Number: 6188-0099 / Alternate OEM Identifiers: 90980-11015 / 61880099 / 9098011015 / Sumitomo 6188-0099 / Toyota 90980-11015 / TS 090 3-Way Male Light Gray.

Applications & Fitment: High-reliability waterproof male electrical connector housing engineered for severe under-bonnet and engine bay environments across Toyota, Lexus, Scion, and Subaru vehicle platforms. Widely specified for inline engine sub-harnesses, ignition coil harness extensions, sensor wiring pigtail repairs, vehicle speed sensor links, and front lighting assemblies requiring 2.3mm (090) TS series male pin terminals and individual wire seals. Features a compact triangular shroud layout with an integrated secondary lock to prevent pin back-out under heavy engine vibration and extreme thermal cycling (-40 to 125 degrees Celsius). Essential stock for auto-electricians, harness builders, engine swap technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 6188-0099 / Toyota 90980-11015 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: TS Sealed Series 090 Male Connector Housing

- Connector Family Series: Sumitomo TS Sealed Series

- Total Position Count: 3-Way / 3-Pin Male Plug

- Cavity Layout Matrix: Triangular 3-Cavity Profile

- Compatible Tab Size: 2.30 mm (.090 Terminal System)

- Terminal System Compatibility: Accepts Sumitomo TS 090 Series Male Crimp Pins (e.g., 8100-1429, 8100-1430 series)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Class equivalent)

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Light Grey Body

- Physical Outer Dimensions: 37.70mm Length x 23.00mm Width x 25.90mm Height

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 3-way male housing assembly. Male crimp pin terminals, individual wire seals, and mating female connector housing assemblies (Sumitomo 6189-0179 / Toyota 90980-11016) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
