TE-Connectivity 936780-2

Terminals and seals are included

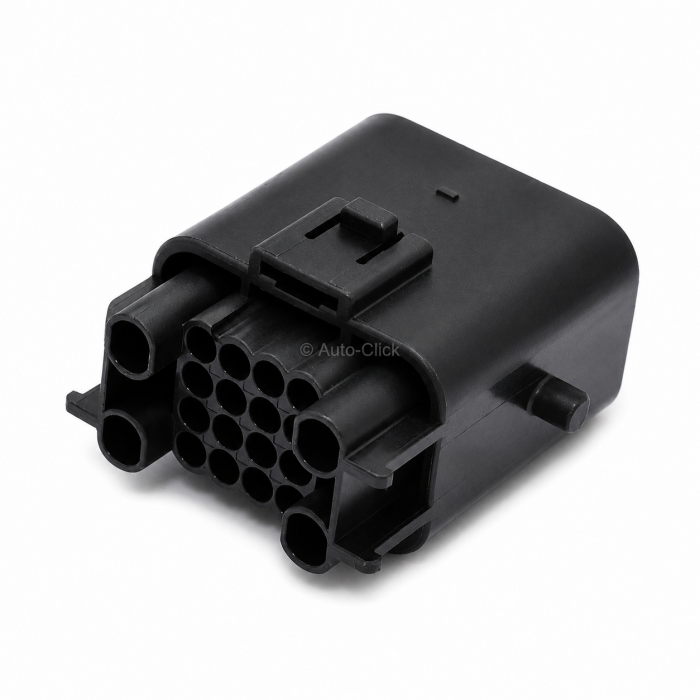

The Component: Genuine TE Connectivity / AMP 936780-2. 20-Way male sealed hybrid tab cap connector housing (Black).

Series Taxonomy: TE Connectivity Timer Connector System. A heavy-duty, automotive-grade interconnect cap designed to house two completely distinct male tab contact profiles inside a unified, environmentally protected inline panel or wire-to-wire junction.

Terminal Interface: 20-pin multi-row hybrid cavity matrix distributed across 4 single rows. The internal chamber is split-configured to house both compact 1.6mm flat male tabs and larger 2.8mm Junior Power Timer (JPT) male blade contacts simultaneously.

Locking and Sealing Security: Environmentally sealed to block dust and moisture entry across an extreme operational temperature envelope spanning from -40 up to +120 degrees Celsius. Features robust outer locking rails and track pins designed to perfectly engage with the corresponding female lever-lock arm, translating rotational lever force into an airtight, highly compressed mechanical connection.

Mating Complement: Connects inline wire-to-wire by mating directly into the corresponding 20-way female lever-lock plug housing under TE Connectivity part number 936777-2.

Common Applications: Widely specified as the primary male bulkhead junction, main firewall pass-through cap, and multi-circuit inline wiring loom bridge across European passenger car networks, heavy haulage commercial fleets, and agricultural equipment. Most frequently deployed to handle dense multi-wire wiring transitions from the engine bay into the passenger cabin, chassis-to-cab junctions, and main body control networks. Highly susceptible to mounting tab breakage or guide track wear if forced together out of alignment.

TE Connectivity 936780-2 MT-II/JPT Series 20-Way Sealed Hybrid Male Tab Cap Housing

Streamline your vehicle's bulk wiring transitions, resolve complex firewall communication drops, and achieve factory-standard wire-to-wire continuity with the genuine TE Connectivity 936780-2 20-way hybrid male sealed tab cap housing. Precision-engineered to strict Tier-1 original equipment automotive engineering guidelines by TE AMP, this 20-pin male counterpart block is an essential piece for building or repairing high-density, multi-circuit automotive wiring networks. The internal hybrid cavity matrix splits its 20 ports across four rows, ensuring clean, isolated tracks for thin 1.6mm signal tab contacts alongside heavy-duty 2.8mm Junior Power Timer power feed blades, packaging high-amperage lines and sensitive data telemetry into one compact profile.

The 936780-2 carrier block is injection-molded from premium, 15% glass-filled Polybutylene Terephthalate (PBT-GF15) in an industrial black finish, providing outstanding impact toughness, high dimensional stability, and complete resistance to structural warping under continuous under-hood thermal cycles. Designed to work in harmony with an internal compression perimeter gasket, it creates a secure, waterproof barrier that shields delicate terminal interfaces from road spray, steam cleaning, fluid leaks, and abrasive grit. The exterior housing walls feature precision-molded guide pins and locking tracks engineered explicitly to accept the mechanical lever arm of the matching 936777-2 female plug, guaranteeing perfect terminal alignment and positive retention under severe vibration. This authentic replacement component allows auto-electrical specialists, commercial fleet mechanics, and motorsport harness builders to execute clean, zero-resistance factory inline restorations.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 936780-2 (Brand: TE Connectivity / AMP)

- Configuration: 20-Way Male Cap Housing, 4-Row Hybrid Matrix

- Connector System: Inline Wire-to-Wire Environmentally Sealed Timer System

- Contact Sizing Compatibility: Accepts 1.6mm male tabs and 2.8mm Junior Power Timer male blades

- Locking Security: Built-in outer guide tracks for lever-lock plug engagement

- Sealing Classification: High-performance Waterproof / Dustproof Environmental Interface

- Primary Structural Material: 15% Glass-Filled Polybutylene Terephthalate (PBT GF15)

- Certified Operating Temperature Range: Continuous -40 to +120 degrees Celsius envelope

- Primary Structural Companion: Mates directly with female lever-lock plug part number 936777-2

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.
