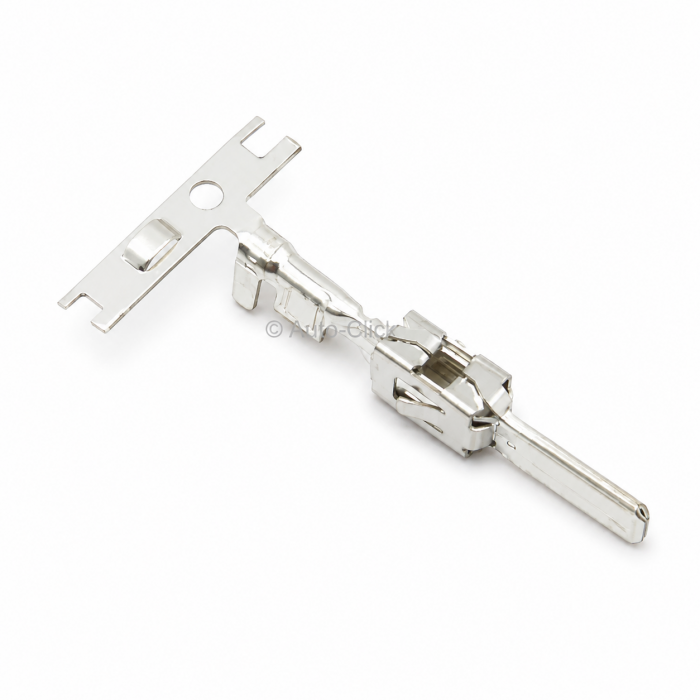

TE Connectivity 2-964294-1 MCP 2.8mm Male Crimp Terminal | Auto-Click

 The Component: Genuine TE Connectivity (AMP) 2-964294-1 automotive 2.8mm male tab loose-piece crimp terminal contact pin. MCP 2.8K / Junior Power Timer (JPT) Series Type A standard flat male blade contact (Loose Piece / Reel Form Variant / Tin Plated / Copper Alloy).

Applications & Fitment: The core male crimp terminal pin used to build or repair multi-pin low-voltage power and sensory looms across prominent European vehicle architectures. Most notably specified as an official fleet component variant within VAG (VW, Audi, Skoda, Seat cross-reference: N10318901) and BMW (cross-reference: 98670389) electrical grids. Frequently utilized inside under-hood fuse boxes, relay stations, and inline bulkheads. Highly vulnerable to localized blade twisting during rough field testing or connector servicing.

Technical Attributes:

- Manufacturer Part Number: 2-964294-1 (Alternative Internal SKU: TAB A 2.8x0.8 CONTACT CF SRC Sn / Brand: TE Connectivity / AMP)

- Auto-Click Core System Identifier: Our Part Number T-035 (Verified Stock Allocation)

- Terminal Contact Type Gender: Male Tab / Flat Male Blade Profile

- Product Family Series Taxonomy: MCP 2.8K Series / Standard Tab Timer Contacts (STC) Family

- Mating Terminal Footprint Width: 2.8mm x 0.8mm (.11 in x .031 in standard size flat tongue)

- Base Structural Metallurgical Compound: High-Conductivity Premium Copper Alloy (CuSn)

- Surface Treatment / Coating Profile: Full Electro-Tin (Sn) Plated

- Wire Cross-Section Window (Min-Max): 0.50mm² to 1.00mm² (Accommodates 20 AWG, 18 AWG, and 17 AWG typical thin-wall wire)

- Cable Outer Insulation Diameter Window: 1.40mm to 2.10mm [.055 in to .083 in]

- Mechanical Locking Retention: Integrated primary locking lance built directly onto the terminal body

- Crimp Configuration Profile: Standard F-Crimp termination method

- Performance Specs: Typical continuous current rating up to 24A-30A limits; operating temperature range certified from -40°C to +130°C/140°C; conforms to automation Komax insertions

- Industry Compliance: Certified to IEC 664/664A (DIN VDE 0110) standards

- Extraction Tool Servicing: Compatible with standard TE Connectivity 1-1579007-6 or 4-1579007-3 workshop removal tools

- Mating Contact System Compatibility: Mates seamlessly with TE MCP 2.8 / 2.8K and Junior Power Timer (JPT) female socket receptacle contact lanes

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, wiring assembly specialists, and trade auto-electrical stockists.
