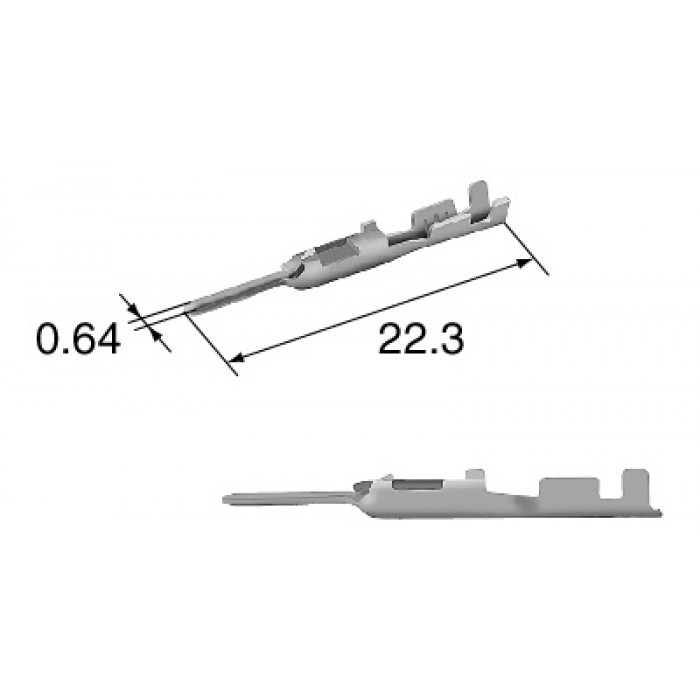

Original Sumitomo 8100-3623

TS series

Terminal For AV Wire

0.64mm (025)

Sealed/Unsealed unsealed

Male/Female M

Tab Size 0.64mm (025)

Size L

Mating parts 8100-3625 (TS series)

Applicable wire size

0.3-0.5mm2

Cable overall diameter (mm) 1.1-1.7

Materials Brass

Surface treatment Tin-plated

Contact resistance

Initial

8mΩ Max.

after durability tests

16mΩ Max.

Leak current 3mA Max.

Insulation resistance 100MΩ Min.
