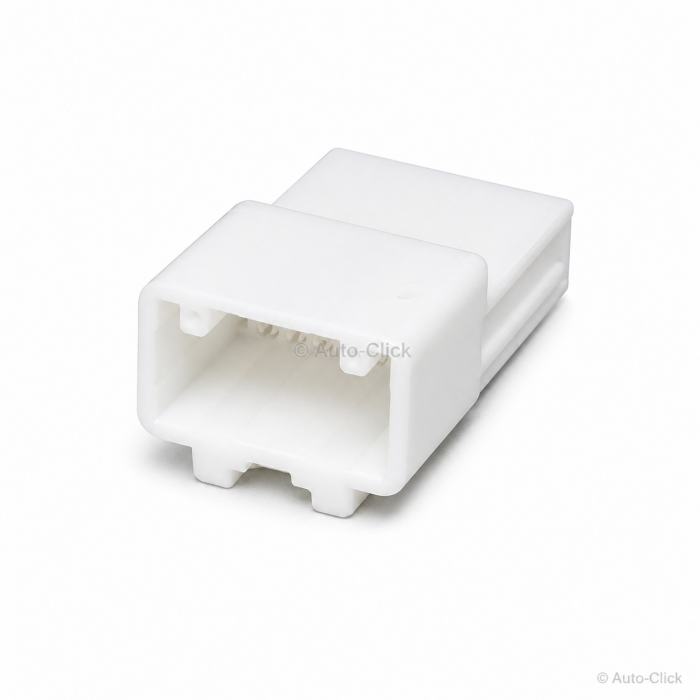

Sumitomo 6098-3877 14-Way Male TS 025 Unsealed Connector Housing

The Component: Genuine Sumitomo Electric OEM 14-position male pin connector housing / Premium TS 025 (0.64mm) Series unsealed automotive header plug / High-density dual-row cavity layout / Integrated latching clip mechanism with secondary terminal locking retainer / Molded from heat-, chemical-, and impact-resistant PBT resin / Component Part Number: 6098-3877 / Alternate OEM Identifiers: 60983877 / Sumitomo 6098-3877 / TS 025 14-Way Male Natural / Cabin & Body Control Module Plug.

Applications & Fitment: High-reliability unsealed male electrical connector housing engineered for multi-circuit cabin, dashboard, and electronic control unit sub-harnesses across Japanese OEM vehicle platforms (Toyota, Lexus, Honda, Nissan, Mazda, Subaru). Designed specifically for fourteen 0.64mm (.025 inch) male pin terminals. Mates directly with female connector housing Sumitomo 6098-3917. Widely specified for instrument panel clusters, body control modules (BCM), steering column stalk controls, climate control head units, and interior junction harnesses. Engineered for dry interior cabin environments to withstand vibration and operational thermal variation (-40 to 105 degrees Celsius). Essential stock for auto-electricians, Japanese vehicle specialists, interior harness repair technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 6098-3877 / 60983877 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 0.64mm (025) Male Pin Connector Housing Device

- Connector Family Series: Sumitomo TS Unsealed Series (025 System)

- Total Position Count: 14-Way / 14-Pin Male Plug

- Cavity Layout Matrix: Dual-Row Grid Configuration Profile

- Compatible Terminal Blade Width: 0.64 mm (.025 Terminal System)

- Terminal System Compatibility: Accepts Sumitomo TS 0.64mm (025) unsealed male pin crimp contacts

- Directly Mating Part Number: Sumitomo 6098-3917 (TS Unsealed Series 14-Way Female Housing)

- Ingress Protection Status: Unsealed / Non-Waterproof (Designed for Dry Interior Cabin Use)

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Natural Body

- Operating Temperature Limit: -40 to 105 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 14-way male housing assembly. Male pin crimp contacts and mating female connector housing assemblies (6098-3917) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
