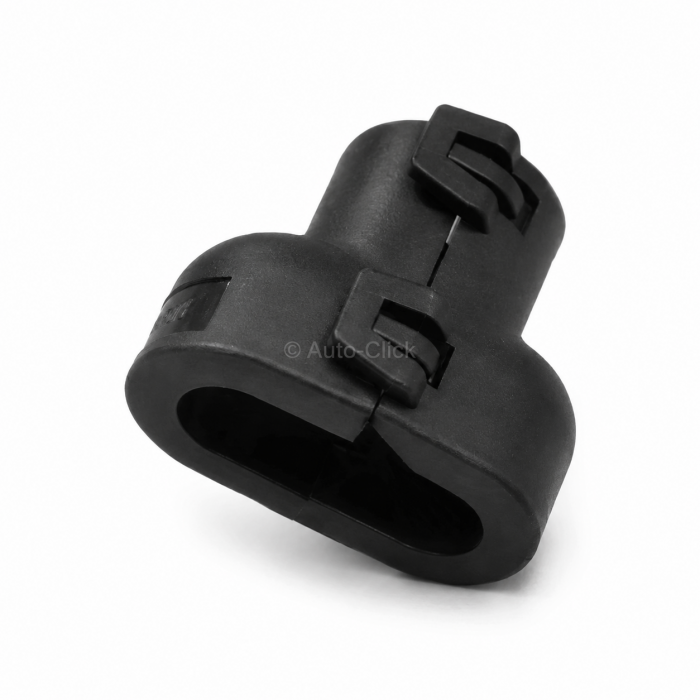

7807625 Type NW7.5 Protective Cap Adapter Clip

The Component: Protective cap adapter clip / Straight conduit backshell strain relief outlet / Connector-to-corrugated tube interface adapter / Molded from heat-stabilized flame-retardant Polyamide 66 (PA66) / Component Part Number: 7807625 / Alternate Identifiers: Schlemmer 7807625 / 7807625 Protective Cap Adapter NW 7.5 / Bosch RB3-KPT Backshell Clip.

Applications & Fitment: High-reliability protective backshell adapter clip engineered to attach securely to the rear of automotive sensor and solenoid connector housings. Specifically designed to interface between Bosch RB3-KPT series 3-way connector housings (e.g., Bosch 1 928 403 966) and Nominal Width NW 7.5 corrugated split or unsplit conduit tubing. Provides mechanical strain relief on conductor crimps, prevents insulation wire abrasion from engine vibration, and shields connector entry cavities against splash water, dirt, and road grime (-40 to 135 degrees Celsius). Essential stock for automotive wire harness builders, motorsport technicians, commercial vehicle repairers, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 7807625

- Product Component Classification: Backshell Adapter Clip / Protective Cap / Cable Outlet

- Connector Housing Compatibility: Specifically engineered for Bosch RB3-KPT Series Connectors (e.g., 1 928 403 966)

- Convoluted Tubing Interface Size: Nominal Width NW 7.5 Corrugated Pipe

- Structural Material Base: Premium Flame-Retardant Polyamide 66 (PA66 Nylon)

- Color Profile: Factory Black

- Thermal Performance Limit: -40 to 135 degrees Celsius (Continuous operating range)

- Functional Features: Integrated mechanical strain relief, harness vibration protection, splash and stray water cavity shielding

- Commercial Procurement Status: Provided as individual loose protective cap adapter clips. Mating connector housings, crimp contacts, wire seals, and NW 7.5 corrugated tubing are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
