BOSCH 1928403110 - 1928404073

Kompakt 1 / Connector 3P / Code 1 / Black

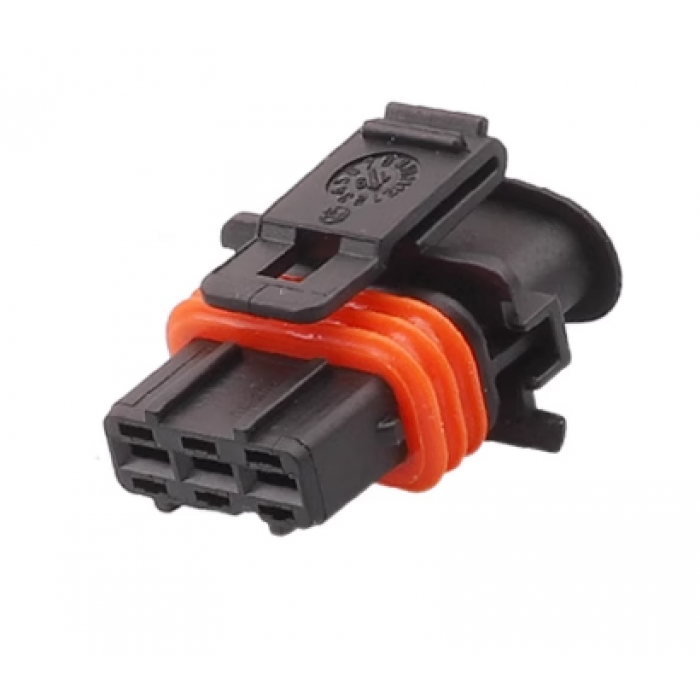

The Component: Genuine Bosch 1 928 403 110 3-way automotive sealed female socket housing plug. Compact 1.1A / Jetronic / EV1 Style 3-position single-row receptacle casing (Black / PA66 GF30 / Sealed / Inline Shroud / Steel Wire Spring Latch / Component Alias Code: 1928403110 / Global Order Reference: 1-928-403-110).

Applications & Fitment: Designed as a premier factory original equipment (OE) harsh-environment connection standard for low-voltage sensor tracking, performance telemetry, and powertrain fuel delivery infrastructure. Widespread across global passenger car, commercial vehicle, marine engine, and professional motorsport platforms, it is exceptionally prominent across European and domestic grids including VAG, BMW, Mercedes-Benz, PSA, and Ford layouts. It serves as the definitive factory female plug interface for three-wire engine components, most notably relied upon for common-rail fuel pressure sensors, crankshaft/camshaft position sensors, knock sensors, external fuel injectors, and auxiliary temperature senders. Engineered specifically to deliver absolute signal continuity and moisture-proof vacuum stability under grueling under-hood thermal cycles and intense engine compartment harmonic vibrations. Highly vulnerable to external steel wire spring clip distortion or loss if pried off carelessly with workshop screwdrivers rather than depressed cleanly during component disconnection, or internal front matrix seal tearing if technicians attempt back-probing with un-profiled multi-meter needles during field electronic troubleshooting.

Technical Attributes:

- Manufacturer Part Number: 1 928 403 110 / 1928403110 (Brand: Bosch / Genuine Premium Automotive Class)

- Product Series Taxonomy: Compact 1.1A / Jetronic / EV1 Automotive Sealed Matrix Group

- Configuration: 3-Position / 3-Way Female Receptacle Housing, Single-Row 1x3 Inline Grid

- Connector Style: Plug Housing for Female Socket Contacts (Inline Free-Hanging Protective Shroud Profile)

- Connection Layout Type: Wire-to-Device or Wire-to-Wire Interconnect Channel

- Fastening & Locking Architecture: Heavy-duty external steel wire spring latching clip providing quick-release, high-retention lock security

- Base Structural Compound: Premium 30% Glass-Fiber Reinforced Polyamide (PA66 GF30) high-stability automotive engineering polymer

- Color Profile: Factory Solid Black Casing with a High-Visibility Orange Peripheral Face Seal

- Environmental Sealing Level: High-performance watertight, dustproof, and splashproof protection certified to IPX7 and IPX9K standards; relies on an internal high-compression silicone rubber perimeter face seal and isolated single-wire rear cavity entries

- Circuit Performance Thresholds: Certified low-voltage vehicle logic, fuel delivery management, and safety-critical sensor infrastructure

- Operational Thermal Window: Severe-duty parameters engineered to handle extreme engine compartment operating cycles from -40°C up to +130°C

- Target Female Terminal Contacts (Not Included): Fits standard Bosch Compact 1.1A or matching 2.8mm flat box receptacle crimp terminals depending on specific generational sub-series wiring layouts

- Associated Single Wire Seals (Not Included): Accommodates standard individual silicone single-wire cavity rubber insulation seals matching your target wire outer diameter limits to preserve structural waterproof vacuum integrity

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching 3-way male pin device headers, fuel pressure sensor blocks, or corresponding male tab inline cap assemblies

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.

We ship worldwide daily, and you can pay safely with PayPal
