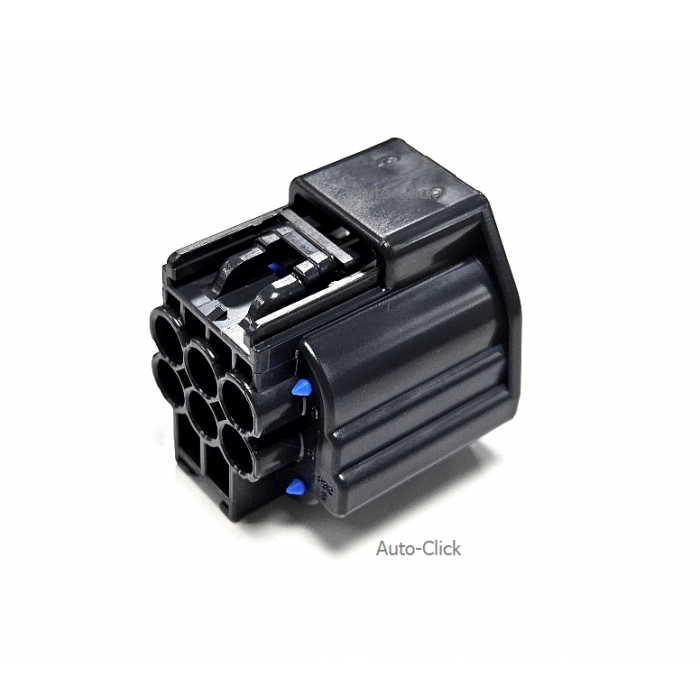

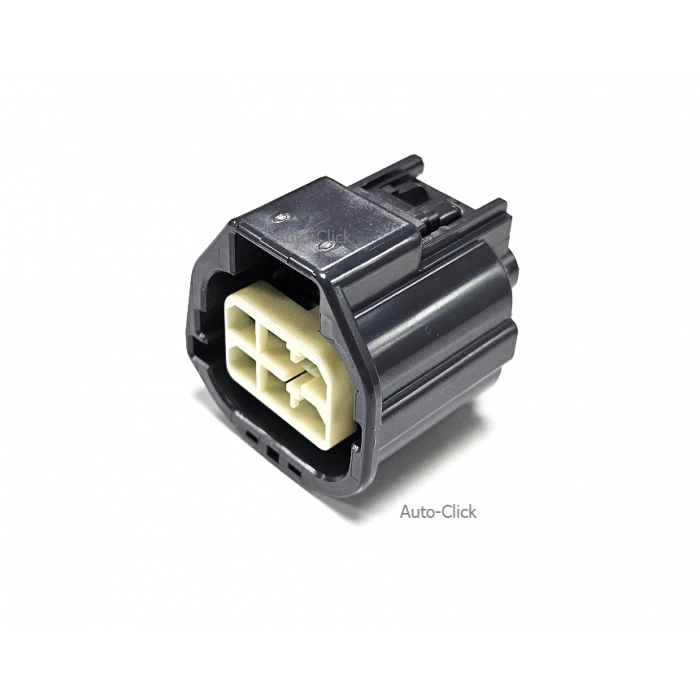

Original Yazaki 7283-5577-10

Terminals and seals are included

6 Way Automotive Connector

Family YES/YESC Kaizen Connectors

Type 2.8 X 0.8

Yazaki Part Number 7283-5577-10

Connection Type Wire to Wire

Wire to Device

Unsealed/Sealed Sealed

Male/Female Female

Number of Poles 6

Tab Width mm(inches) 2.8 (110)

Material Heat-resistance Nylon

Plating -

Color Dark Gray

Rating -

Mating Part Numbers 7282-5577-10

Product Specification

Allowable Current(Ref.) 20A(Ref)

Low Level Contact Resistance 10milli ohm Max.(Initial)

Insulation Resistance 20Megohm Min.(at 500VDC)

Withstanding Voltage 1000V AC (1min.)

Temperature Range*9 -40 to 100deg.C
