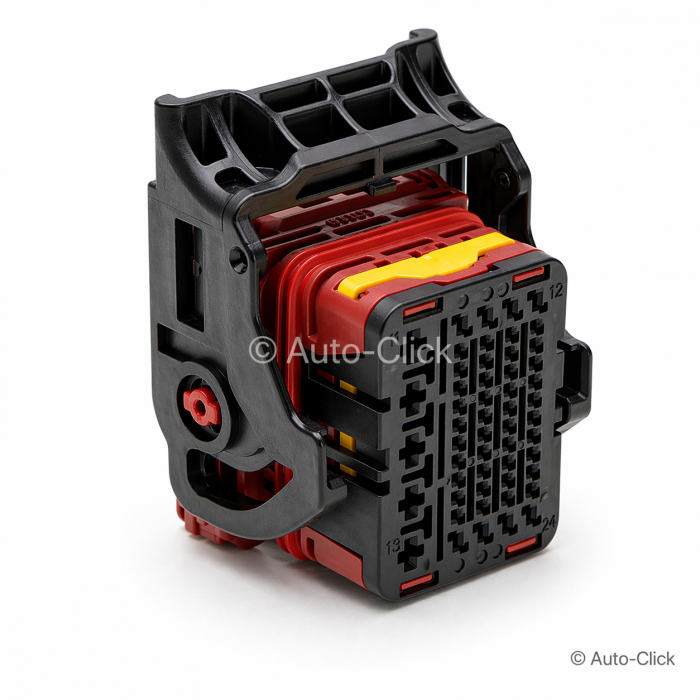

Molex 64321-2011 CMC 53-Way Housing

Auto Click™ part53-AC004 RoHS
Genuine MOLEX OEM · fully traceable
Auto Click™ price
£8.60 each
In Group Stock
Ordering 1,000+? Request an Auto Click™ volume quote
Sold & dispatched by Auto Click™
Free UK delivery £30+
Worldwide shipping daily
30-day returns

Specifications

MOLEX 64321-2011 · Auto Click™ part 53-AC004

SeriesMolex CMC
StatusActive
CategoryConnector Housings
Description.635mm, 1.50mm, 2.80mm, CMC Receptacle, 53 Circuits, Right Wire Output, Black Coding, Mat Sealed
ApplicationAutomotive, Power, Wire-to-Board
CommentsCurrent tested on a fully loaded connector, current for temperature increase of 40°C; Current max = 21.0A for 2.80mm Terminal (5.00mm² wire), 12.0A for 1.50mm Terminal (2.00mm² wire), 2.5A for 0.635mm Terminal (0.75mm² wire)
More Detailed Tech InformationSealed, high-density, power, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses
Product FamilyCMC and CMX Sealed, Hybrid, Modular Connectors
Product NameCMC
UPC883906135164
Circuits Detail5x 2.8mm, 8 x 1.5mm, 40 x 0.635mm terminals
Circuits (maximum)53
Colour - ResinBlack
GenderReceptacle
Glow-Wire CapableNo
Keying to Mating PartYes
Lock to Mating PartYes
Material - ResinPolyester
Net Weight50.880/g
Number of Rows5
Packaging TypeCarton
Panel MountNo
Pitch - Mating Interface2.54mm, 3.50mm, 7.00mm
Polarized to Mating PartYes
StackableNo
Temperature Range - Operating-40° to +125°C

Compatible terminals, seals & mating parts

Matched to this housing. Order any quantity, or request a volume quote for 1,000+. Mates with Yes.

Price isn't everything

This is a genuine MOLEX part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.

  • Manufacturer-made
  • Traceable
  • Certificate of Conformity on request
