64320-4319
Our part36-AC010 RoHS
We ship worldwide, daily
Tracked delivery to 190+ countries by UPS, DHL or FedEx.
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £10.50 | — |
| 100+ | £8.40 |
In Group Stock
£10.50
each
Volume quotation (1k+)Fast reply from our RFQ team
Free UK delivery over £30
30-day returns
Full traceability
Secure checkout
Accepted:
Specifications

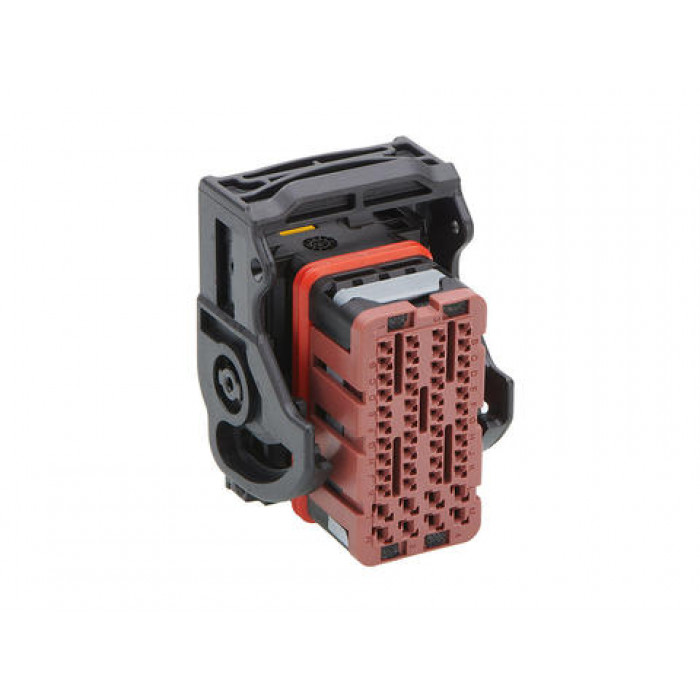

MOLEX CMC 36-AC010
StatusActive
CategoryConnector Housings
Series64320
Description.635mm, 1.50mm, CMC Receptacle, 36 Circuits, Right Wire Output, Brown Coding, Mat Sealed, Row 1 Closed
ApplicationAutomotive, Power, Wire-to-Board
CommentsCurrent tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire)
More Detailed Tech InformationSealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses
Product FamilyCMC and CMX Sealed, Hybrid, Modular Connectors
Product NameCMC
UPC883906131128
Circuits Detail6 x 1.5mm, 30 x 0.635mm terminals
Circuits (maximum)36
Colour - ResinBrown
GenderReceptacle
Glow-Wire CapableNo
Keying to Mating PartYes
Lock to Mating PartYes
Material - ResinPolyester
Net Weight36.031/g
Number of Rows3
Packaging TypeCarton
Panel MountNo
Pitch - Mating Interface2.54mm, 3.70mm
Polarized to Mating PartYes
StackableNo
Temperature Range - Operating-40° to +125°C
Complete your connector
Matching terminals, seals and mating parts for this housing. Mates with Yes.
Terminals 2
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
TPA / CPA 1
Terminal and connector position assurance for this housing.
Price isn't everything
This is a genuine MOLEX CMC part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
