64318-3019

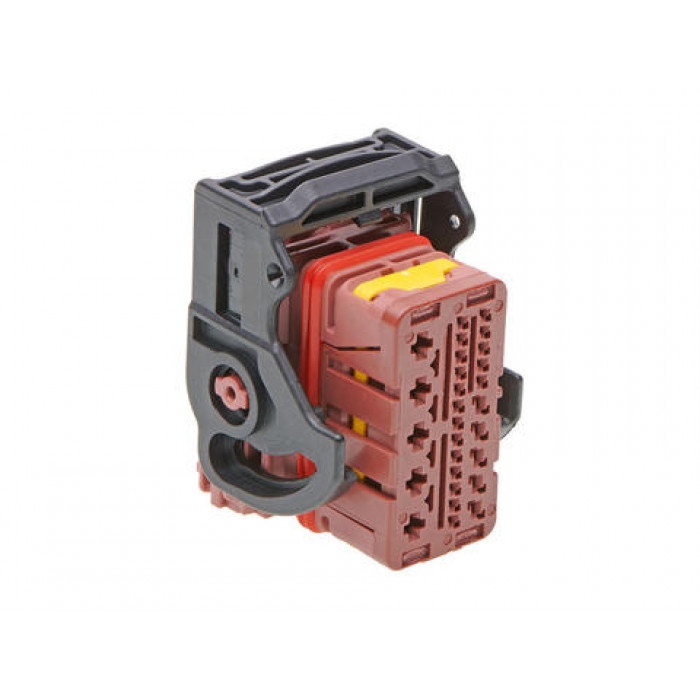

64318-3019 .635mm, 1.50mm, 2.80mm, Power CMC Connector, 28 Circuits, Right Wire Output, Brown Coding, Mat Sealed
| Status | Active | Category | Connector Housings |
|---|---|---|---|
| Series | 64318 | Description | .635mm, 1.50mm, 2.80mm, Power CMC Connector, 28 Circuits, Right Wire Output, Brown Coding, Mat Sealed |
| Application | Automotive, Power, Wire-to-Board | Comments | Current tested on a fully loaded connector, current for temperature increase of 40°C; Current max = 21.0A for 2.80mm Terminal (5.00mm² wire), 12.0A for 1.50mm Terminal (2.00mm² wire), 2.5A for 0.635mm Terminal (0.75mm² wire) |
| More Detailed Tech Information | Sealed, high-density, power, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906135126 |
Physical
| Circuits Detail | 5x 2.8mm, 5 x 1.5mm, 18 x 0.635mm terminals | Circuits (maximum) | 28 |
|---|---|---|---|
| Colour - Resin | Brown | Gender | Receptacle |
| Glow-Wire Capable | No | Keying to Mating Part | Yes |
| Lock to Mating Part | Yes | Material - Resin | Polyester |
| Net Weight | 35.290/g | Number of Rows | 3 |
| Packaging Type | Carton | Panel Mount | No |
| Pitch - Mating Interface | 2.54mm, 3.50mm, 6.75mm | Polarized to Mating Part | Yes |
| Stackable | No | Temperature Range - Operating | -40° to +125°C |
