Original Sumitomo 6195-0152

Terminals and seals are included

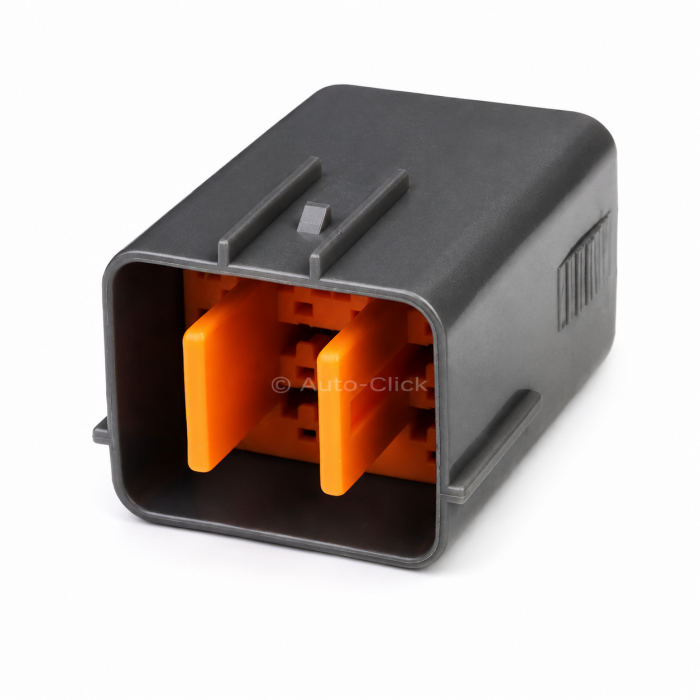

The Component: Genuine Sumitomo 6195-0152. 12-Way male automotive wire-to-wire connector housing cap assembly for male tab terminals (Dark Gray).

Series Taxonomy: Sumitomo DL Sealed Series. A legendary, ultra-rugged Japanese automotive interconnect platform engineered by Sumitomo to deliver flawless weatherproof signal transmission and low-voltage power circuit routing across high-vibration, moisture-prone environments.

Terminal Interface: 12-pin multi-row matrix cavity layout configured explicitly to house 2.3mm (090 size) wide DL series male flat blade tab terminals, accommodating diverse wire insulation diameters.

Locking and Sealing Security: Environmentally sealed to a high-performance IP67 standard with an initial sealing threshold of 49.0kPa minimum to preserve circuit insulation. Relies on an integrated primary housing locking lance system to ensure absolute Terminal Position Assurance (TPA) and prevent male contact pin back-out under severe axial wire loom strain. Features an integrated interlocking alignment track and robust locking clip receiver tracks on the exterior shell to ensure rock-solid mating retention against intense vehicle chassis harmonics.

Mating Complement: Connects inline wire-to-wire by mating directly onto its corresponding 12-way female counterpart receptacle socket plug housing under Sumitomo part number 6195-0149.

Common Applications: Extensively specified across prominent Japanese passenger car, motorcycle, and commercial vehicle architectures, most notably within Toyota, Nissan, Honda, Subaru, and Mazda factory platforms. Most frequently deployed as a high-density primary wiring harness side cap or device interface for throttle pedal assemblies, headlight wiring clusters, main dashboard-to-engine pass-through looms, and complex multi-channel Electronic Control Unit (ECU) sub-harness links. Highly vulnerable to mechanical alignment slot fractures, locking wing breakage, or shell cracking if forced with incorrect panel tools during diagnostic loom testing or powertrain overhaul teardowns.

Sumitomo 6195-0152 DL Sealed Series 12-Way 2.3mm Male Multi-Pin Harness and ECU Cap Housing

Restore flawless multi-circuit connection stability, eliminate persistent electronic control faults, and reinstate maximum weatherproof isolation inside your vehicle's management loom with the genuine Sumitomo 6195-0152 12-way male sealed connector cap housing. Precision-manufactured to strict Tier-1 original equipment global automotive engineering standards by Sumitomo Wiring Systems, this 12-pin contact carrier block is an indispensable piece for executing professional, high-density wire harness restorations. Engineered around the highly dependable DL series configuration, it establishes a solid, zero-resistance electrical transition channel that manages up to 12 active telemetry and lower-voltage power pathways simultaneously without risking localized resistance scaling.

The 6195-0152 carrier block is injection-molded from a premium, chemically stable, low water absorption PBT compound finished in a clean factory dark gray profile, ensuring outstanding impact defense, high dimensional tracking accuracy, and absolute immunity to mechanical fatigue across severe operating zones. Working in absolute uniformity with internal silicone compression seals and individual wire seals, it constructs an impenetrable barrier that isolates raw male terminal lines from moisture tracking, heavy road grime, engine oil vapors, and abrasive dirt. Precision-molded polarization tracks and a robust external locking latch block ensure immediate, error-free alignment with its matching 6195-0149 female socket counterpart. This authentic replacement component allows independent auto-electrical trade specialists, fleet diagnostic garages, and custom loom builders to deliver traceable, factory-correct wiring restorations.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 6195-0152 (Brand: Sumitomo / Japan)

- Configuration: 12-Way Male Tab Cap Housing, Multi-Row Matrix Layout

- Product Series Taxonomy: DL Sealed Series Class (2.3mm / 090 Footprint)

- Contact Interface Size: Accommodates standard 2.3mm wide flat male blade tab contacts (e.g., 8230-4472, 1500-0159)

- Component Base Material: Premium Low-Water Absorption Polybutylene Terephthalate (PBT)

- Component Color Profile: Factory Dark Gray

- Sealing Classification: Waterproof / Dustproof High-Performance Environmental Insulation

- Initial Contact Resistance Ceiling: 3 mΩ Maximum (10 mΩ Max post-durability test threshold)

- Primary Structural Companion: Mates directly with female socket plug housing part number 6195-0149

- Associated Sealing System: Compatible with Sumitomo wire seals (e.g., 7165-0210) and dummy cavity plugs (e.g., 7161-9787)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.

12 Way Automotive Connector

6195-0152

DL sealed series

Housing Inline

2.3mm(090)

Sealed/Unsealed sealed

Male/Female M

Way 12

Mating parts 6195-0149(DL sealed series)

Materials PBT or Low water absorption Nylon

Color Dark Gray
