Original Sumitomo 6195-0149

Terminals and seals are included

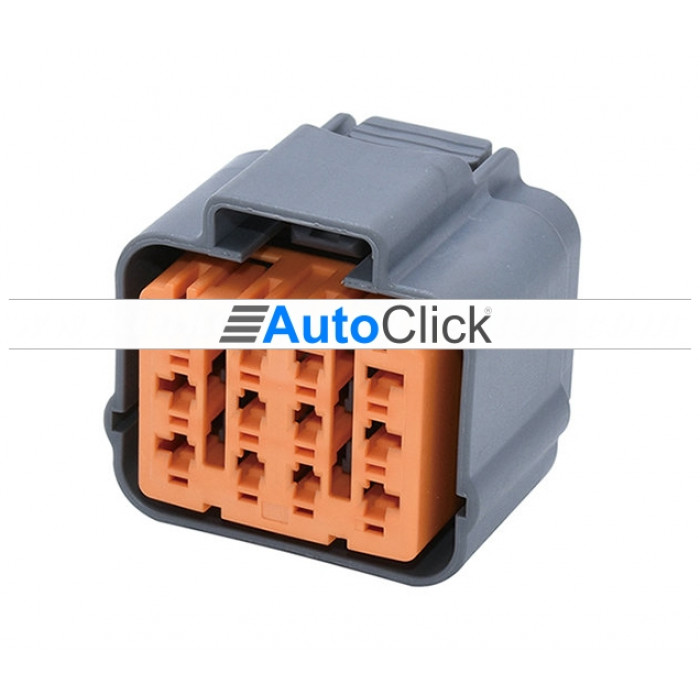

The Component: Genuine Sumitomo 6195-0149. 12-Way female automotive connector plug housing for female socket receptacle contacts (Dark Gray).

Series Taxonomy: Sumitomo DL Sealed Series. A legendary, ultra-rugged Japanese automotive interconnect platform engineered by Sumitomo to deliver flawless weatherproof signal transmission and low-voltage power circuit routing across high-vibration, moisture-prone environments.

Terminal Interface: 12-pin multi-row matrix cavity layout configured explicitly to house 2.3mm (090 size) wide DL series female receptacle socket contacts, accommodating diverse wire insulation diameters.

Locking and Sealing Security: Environmentally sealed to a high-performance IP67 standard with an initial sealing threshold of 49.0kPa minimum to preserve circuit insulation. Relies on an integrated primary housing locking lance system to ensure absolute Terminal Position Assurance (TPA) and prevent contact pin back-out under severe axial wire loom strain. Structural mating relies on a robust top mechanical thumb-latch click locking mechanism, with the housing exterior featuring integrated channel blocks for secure inline bracket/stay or clip fixation.

Mating Complement: Connects wire-to-wire or wire-to-device by mating directly onto its corresponding 12-way male counterpart inline tab housing under Sumitomo part number 6195-0152.

Common Applications: Extensively specified across prominent Japanese passenger car, motorcycle, and commercial vehicle architectures, most notably within Toyota, Nissan, Honda, Subaru, and Mazda factory platforms. Most frequently deployed as a high-density primary harness-side repair pigtail for bulkhead pass-through loops, main dashboard-to-engine bay transitions, door loom junctions, and complex multi-channel Electronic Control Unit (ECU) sub-harness grids. Highly vulnerable to mechanical thumb-latch fractures or casing cracking if forced with aggressive hand tools during deep dashboard overhauls or major powertrain maintenance teardowns.

Sumitomo 6195-0149 DL Sealed Series 12-Way 2.3mm Female Multi-Pin Harness and ECU Plug Housing

Eliminate intermittent multi-circuit connection faults, clear frustrating dashboard diagnostic trouble codes, and reinstate maximum weatherproof isolation inside your vehicle's management loom with the genuine Sumitomo 6195-0149 12-way female sealed connector plug housing. Precision-manufactured to strict Tier-1 original equipment global automotive engineering standards by Sumitomo Wiring Systems, this 12-pin contact carrier block is an indispensable piece for executing professional, high-density wire harness restorations. Engineered around the highly dependable DL series configuration, it establishes a solid, zero-resistance electrical transition channel that manages up to 12 active telemetry and lower-voltage power pathways simultaneously without risking localized resistance scaling.

The 6195-0149 carrier block is injection-molded from a premium, chemically stable, low water absorption PBT compound finished in a clean factory dark gray profile, ensuring outstanding impact defense, high dimensional tracking accuracy, and absolute immunity to mechanical fatigue across severe operating zones. Working in absolute uniformity with an internal silicone compression perimeter seal and individual wire seals (such as the 7165-0210 series), it constructs an impenetrable barrier that isolates raw signal lines from moisture tracking, heavy road grime, engine oil vapors, and abrasive dirt. Precision-molded polarization tracks and a dedicated external bracket mount slot ensure immediate, error-free alignment with its matching 6195-0152 male tab counterpart. This authentic replacement component allows independent auto-electrical trade specialists, fleet diagnostic garages, and custom loom builders to deliver traceable, factory-correct wiring restorations.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 6195-0149 (Brand: Sumitomo / Japan)

- Configuration: 12-Way Female Receptacle Housing, Multi-Row Matrix

- Product Series Taxonomy: DL Sealed Series Class (2.3mm / 090 Footprint)

- Contact Interface Size: Accommodates standard 2.3mm wide flat female socket contacts (e.g., 8100-1427, 8100-1458)

- Component Base Material: Premium Low-Water Absorption Polybutylene Terephthalate (PBT)

- Component Color Profile: Factory Dark Gray

- Sealing Classification: Waterproof / Dustproof High-Performance Environmental Insulation

- Initial Contact Resistance Ceiling: 3 mΩ Maximum (10 mΩ Max post-durability test threshold)

- Primary Structural Companion: Mates directly with male tab housing part number 6195-0152

- Associated Sealing System: Compatible with Sumitomo wire seals (e.g., 7165-0210) and dummy cavity plugs (e.g., 7161-9787)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, fleet service hubs, and trade auto-electrical stockists.

12 Way Automotive Connector

6195-0149

DL sealed series

Housing Inline

2.3mm (090)

Sealed/Unsealed sealed

Male/Female F

Way 12

Mating parts 6195-0152(DL sealed series)

Materials PBT or Low water absorption Nylon

Color Dark Gray
