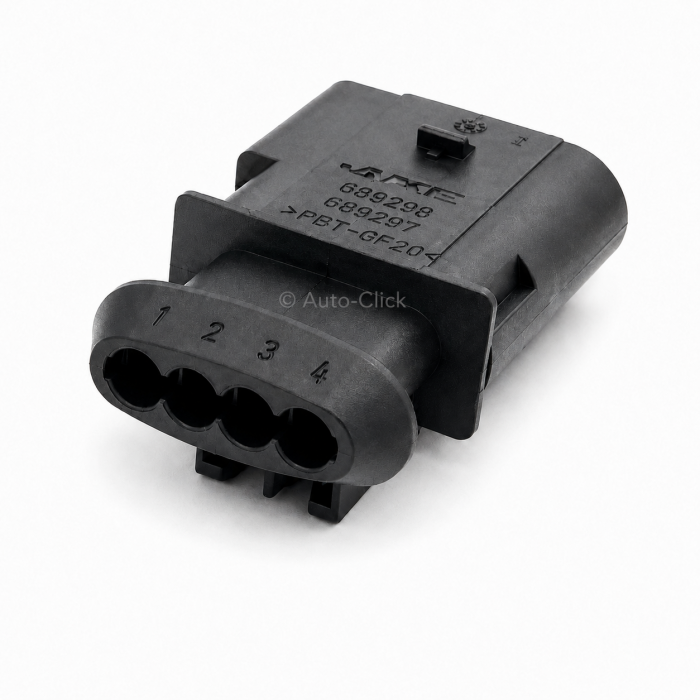

TE Connectivity 1-699297-1 4-Way Male Sealed Connector Housing

The Component: Genuine TE Connectivity OEM 4-position male tab/pin connector housing / Timer Series sealed wire-to-wire automotive tab housing plug / Single-row 1x4 cavity layout with integrated perimeter silicone interfacial seal and secondary terminal locking latch engagement / Molded from high-performance Polybutylene Terephthalate (PBT-GF) resin / Component Part Number: 1-699297-1 / Alternate Identifiers: TE Connectivity 1-699297-1 / 16992971 / AMP 1-699297-1 / VAG 1-699297-1 / TE Timer Series 4-Pin Male Plug / 4-Way Sealed Male Connector Black / Bosch EV1 / JPT 4-Pin Male Housing / Audi VW Seat Skoda 4-Pin Sealed Male Plug.

Applications & Fitment: High-reliability waterproof male electrical tab connector housing engineered for under-bonnet automotive applications, engine management harnesses, sensor connections, and lighting assemblies across European OEM platforms (specifically VAG / Volkswagen, Audi, Seat, Skoda, BMW, Mercedes-Benz, and Porsche). Designed specifically to accept four male tab crimp contacts (such as TE Junior Power Timer $2.8\text{mm}$ male tabs e.g. 962845-1 / 962846-1 or Micro Timer II $1.6\text{mm}$ pins depending on terminal system cavity specification) alongside individual silicone single-wire seals (SWS). Commonly specified for mass air flow (MAF) sensors, oxygen/lambda sensor inline links, ignition distributor/coil pack harnesses, headlamp assemblies, and commercial vehicle solenoid interfaces. Mates directly with corresponding 4-way female socket inline housings (such as TE Connectivity 1-967325-1 or equivalent 4-pin female Timer series connectors). Engineered to resist engine compartment vibration, oils, road spray, and harsh thermal cycling (-40 to 120 degrees Celsius). Essential stock for European auto-electricians, motorsport harness builders, trade distributors, and VW/Audi repair specialists.

Technical Attributes:

- OEM Part Number: 1-699297-1 / 16992971 (Manufacturer: TE Connectivity / AMP)

- Product Component Classification: Sealed Male Tab Terminal Connector Housing

- Connector Family Series: TE Connectivity Timer Series (Junior Power Timer / Micro Timer System)

- Application Profile: Cable-to-Cable Inline & Sensor Interface Wire-to-Wire Connections

- Connection Type: Wire-to-Wire Male Plug / Tab Housing

- Total Position Count: 4-Way / 4-Pin Male Housing (4 Poles)

- Cavity Layout Matrix: 1 Row x 4 Columns Linear Profile

- Terminal System Compatibility: Accepts TE Junior Power Timer tab crimp contacts or equivalent 2.8mm male tab contacts

- Wire Seal System Compatibility: Accepts standard TE silicone single wire seals and dummy cavity plugs

- Directly Mating Counterparts: TE Connectivity 1-967325-1 (Timer Series 4-Way Female Socket Housing) or equivalent VAG 4-pin female sensor plugs

- Environmental Sealing Capability: Fully Sealed / Waterproof (IP67 Grade Environmental Protection via internal silicone ring)

- Structural Material Base: Glass-Filled Polybutylene Terephthalate (PBT-GF15 / GF20)

- Color Profile: Standard Jet Black Body Housing

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 4-way male housing assembly (including interfacial seal). Male tab crimp terminals, silicone wire seals, and mating female housings sold separately as individual piece parts or as part of a complete repair kit depending on stock configuration. Multi-tier trade volume discounts apply automatically at checkout.
