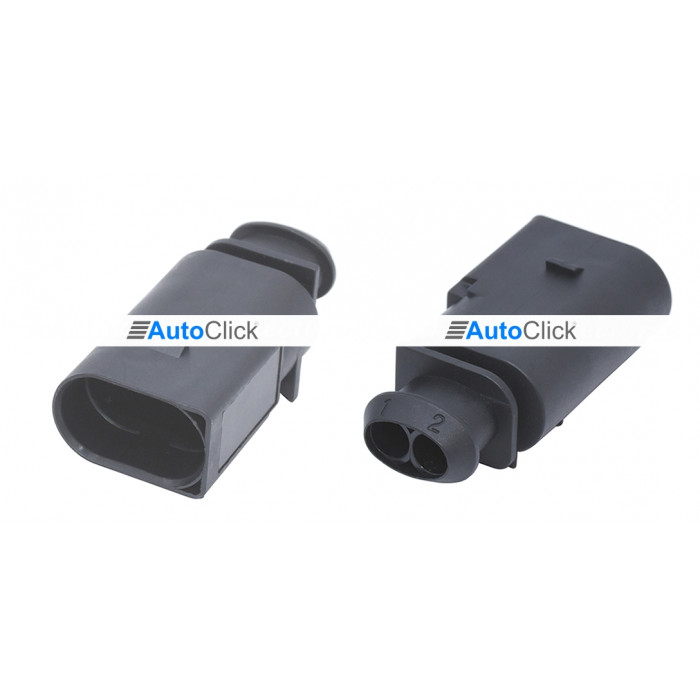

VAG 8D0 973 822 2-Way Male 2.8mm JPT Sealed Connector Housing

The Component: Genuine VAG OEM 2-position male tab housing / Premium 2.8mm Sealed Series waterproof automotive connector plug / Compact 1x2 single-row inline cavity layout / External latching lug with integrated secondary terminal locking retainer / Rear rubber boot collar profile / Molded from heat-, chemical-, and impact-resistant PBT resin / Component Part Number: 8D0 973 822 / Alternate OEM Identifiers: 8D0973822 / VAG 8D0 973 822 / Audi VW 8D0 973 822 / 2-Pin Male Black Inline Sensor Plug / Horn & Ambient Temp Sensor Plug / Mercedes A0035401581 / Volvo 20429834.

Applications & Fitment: High-reliability waterproof male electrical connector housing engineered for severe under-bonnet, bumper, and chassis sensor sub-harnesses across VAG OEM vehicle platforms (Volkswagen, Audi, SEAT, Škoda) as well as commercial lines (Volvo, Mercedes-Benz, Scania). Designed specifically for two 2.8mm male tab contacts (Junior-Power-Timer / JPT tab series) and individual silicone wire seals on a single-row layout. Mates directly with female connector housing VAG 1J0 973 722. Widely specified for twin horns, ambient air temperature sensors, fog lamps, washer pumps, and airbag sensors requiring full IP67 weatherproofing integrity. Engineered to withstand continuous chassis vibration, heavy road splash, fluid exposure, and severe thermal cycling (-40 to 125 degrees Celsius). Essential stock for auto-electricians, VAG specialists, wire harness repair technicians, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 8D0 973 822 / 8D0973822 (Manufacturer: Volkswagen AG / Audi Group)

- Product Component Classification: 2.8mm Male Pin / Tab Connector Housing Device

- Connector Family Series: VAG 2.8mm Sealed JPT System Series (8D0/1J0 System)

- Total Position Count: 2-Way / 2-Pin Male Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 2.80 mm Male Tab Contacts (Junior-Power-Timer / JPT 2.8mm Male)

- Terminal System Compatibility: Accepts 2.8mm male crimp tab contacts and individual silicone cable wire seals (suitable for wire sizes 0.5mm² to 1.5mm²)

- Directly Mating Part Number: VAG 1J0 973 722 (2.8mm Sealed Series 2-Way Female Housing)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Class equivalent)

- Secondary Retention Feature: Pre-installed TPA (Terminal Position Assurance) Secondary Lock Wedge

- Structural Material Base: Premium Heat-Stabilized Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Black Body

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way male housing assembly. Male tab crimp contacts, individual wire seals, rubber boots, and mating female connector housing assemblies (1J0 973 722) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
