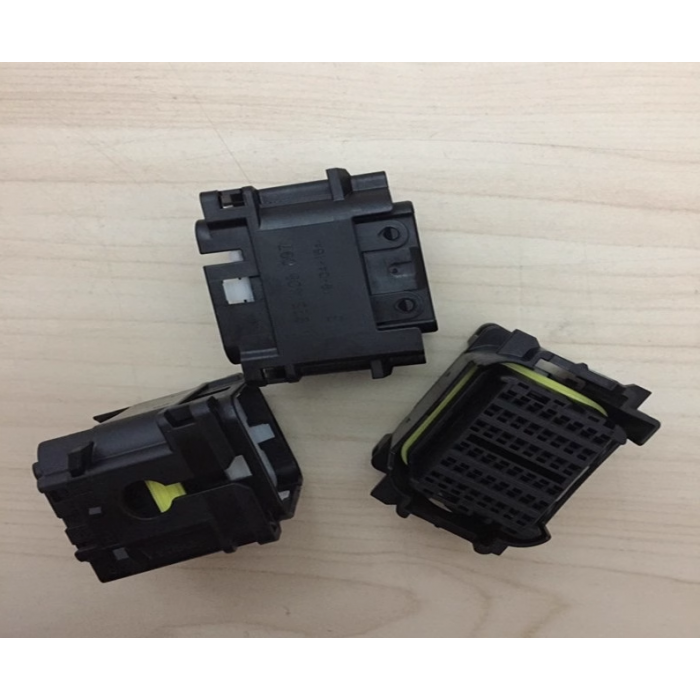

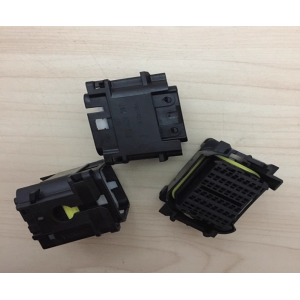

Bosch 1928406097

336P-CV EMS / Contact Housing 48P / Coding G

Manufacturer Bosch

Product Type Contact Housing

Number of positions 48

Code G

Blade width 1.2mm

Connection System Wire-to-Device

Gender Female

Sealed connection Yes

Primary Locking (Terminal) Lance-locking

Colour black

Body Material PA66

Length 32mm

Width 46.5mm

Height 36.3mm

Temperature range, min. -40°

Temperature range, max. 105°

Terminal Sealing Silicon gel seal

Type of seal (connector) Radial seal

Type of seal (cable) Gel sealing

Terminals not included
