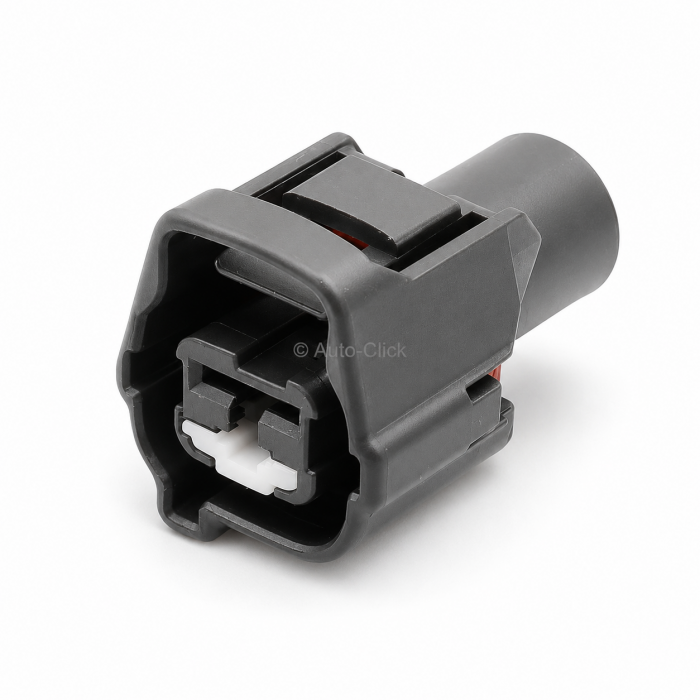

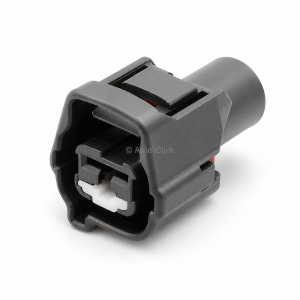

Yazaki 1 Pin 8.0mm (312) Waterproof Female Housing 7283-3013-10

Includes terminal and seal

Family 8.0(312) Connectors

Type -

Yazaki Part Number 7283-3013-10

Connection Type Wire to Wire

Wire to Board

Wire to Device

Unsealed/Sealed Sealed

Male/Female Female

Number of Poles 1

Tab Width mm(inches) 8.0(312)

Material PBT

Plating -

Color Dark Gray

Rating -

Mating Part Numbers 7282-3013-10

Yazaki 7283-3013-10 8.0mm Series 1-Way Sealed Female Connector Housing

Manage high-amperage dedicated power feeds and ensure extreme weather protection on critical vehicle circuits with the genuine Yazaki 7283-3013-10 1-way female sealed connector housing. Precision-engineered by Yazaki to meet strict original equipment quality standards, this heavy-duty 1-pin socket plug belongs to the robust 8.0mm (.312 inch) sealed interconnect family. Outfitted with an internal silicone mating ring and an independent single-wire entry cavity track, it creates an IP67-rated moisture barrier capable of deflecting high-pressure under-hood spray, road salt, and harsh fluid exposure.

Molded from premium, structurally rigid Polybutylene Terephthalate (PBT), this dark gray housing delivers high dimensional stability and superior impact resistance within an operating window of -40°C to +120°C. The internal single-position grid is optimized for high-power 8.0mm width female terminals, allowing safe, low-resistance current transfers up to 40A continuous without risk of thermal fatigue. Frequently specified across industrial and automotive wiring systems to safeguard charging links, alternator feeds, and main grounding points, this authentic replacement plug allows technicians to construct clean, factory-grade high-power wiring modifications. It docks securely into the matching male inline shroud, part number **7282-3013-10**.

### Engineering Specifications & Technical Attributes:

* **Manufacturer Part Number:** 7283-3013-10 (Series: 8.0mm / 312 Sealed)

* **Configuration:** 1-Way Female, Single-Pole Inline

* **Sealing Classification:** Sealed / Waterproof (IP67 Compliant)

* **Terminal Cavity Sizing:** Accepts 8.0mm width flat socket contacts

* **Current Carrying Limits:** Engineered for 10A to 40A continuous operating loads

* **Material Substrate:** High-grade, heat-stabilized Polybutylene Terephthalate (PBT)

* **Mating Alignment:** Direct keyway mechanical polarization with male housing 7282-3013-10

* **Commercial Access:** Tiered B2B trade volume discounts apply automatically inside the shopping cart for commercial fleets, workshop operations, and harness build facilities.
