7116-6046
· YAZAKI · Our Part Number: T-342 ·
| Quantity | Unit Price | Saving |
|---|---|---|
| 1000+ | £0.25 |

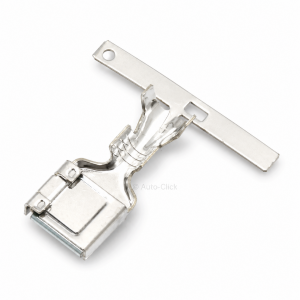

Yazaki 8.0mm (312) Female Socket Contact Pin 7116-6046
Automotive Terminal
Classified Parts Terminal
Family 8.0(312) Connector
Replacement part number
Mating Part Numbers 7114-6046
Unsealed/Sealed Sealed
Male/Female Female
Tab size (mm) 8.00
Materials COPPER ALLOY
Size (mm) (Outer shape of parts)
Length 22.40
Plating Tin Plating
Wire Type AVS AVS
Size (Min) 2.00 3.00
Size (Max) 2.00 3.00
Yazaki 7116-6046 8.0mm (312) Series Female Crimp Terminal (2.0 - 3.0mm²)
Protect high-amperage dedicated power loops, optimize electrical transfer efficiency, and eliminate critical voltage drop points with this genuine Yazaki 7116-6046 female automotive crimp terminal. Precision-stamped in Japan by Yazaki to demanding original equipment specifications, this heavy-duty 8.0mm (.312 inch) female socket contact belongs to the robust 312 series interconnect family. Fabricated from a high-conductivity copper alloy base and finished with a durable, anti-corrosive tin-plated layer, it maintains a highly reliable, low-resistance connection capable of handling heavy continuous current loads up to 40A without risking thermal distortion.
The 7116-6046 socket terminal is engineered to accommodate thick-wall automotive cabling with a cross-sectional area of 2.0mm² to 3.0mm² (comfortably tracking with heavy-draw 12 to 10 AWG wiring layouts). Featuring a substantial 8.00mm internal receptacle footprint, this loose-piece female terminal is extensively deployed across charging networks, primary earthing circuits, and main power distribution boxes to handle intense current transfers—most notably alternator charging feeds, main vehicle grounding junctions, and heavy-duty auxiliary power blocks. This authentic replacement contact allows automotive electricians and harness fabricators to crimp clean, factory-grade terminations onto heavy-gauge cables to restore perfect circuit reliability. It clicks cleanly into place inside compatible sealed female blocks (such as the Yazaki 7283-3013-10 housing) and accepts individual silicone single-wire cavity seals for absolute moisture protection.
### Engineering Specifications & Technical Attributes:
* **Manufacturer Part Number:** 7116-6046 (Series: 8.0mm / 312 Series)
* **Component Type:** Female Receptacle Socket Crimp Terminal
* **Contact Interface Width:** 8.0mm (.312 inch) flat terminal sizing
* **Wire Cross-Section Compatibility:** 3.0mm² to 5.0mm² (12–10 AWG)
* **Material Substrate:** High-conductivity copper alloy with a premium Tin-Plated (Sn) surface finish
* **Terminal Lock Type:** Integrates with housing-lance retention systems
* **Primary Housing Alignment:** Fits directly inside Yazaki female housing 7283-3013-10
* **Commercial Access:** Automated tiered B2B wholesale volume discounts apply instantly inside your basket for commercial workshops, fleet managers, and custom harness build facilities.
