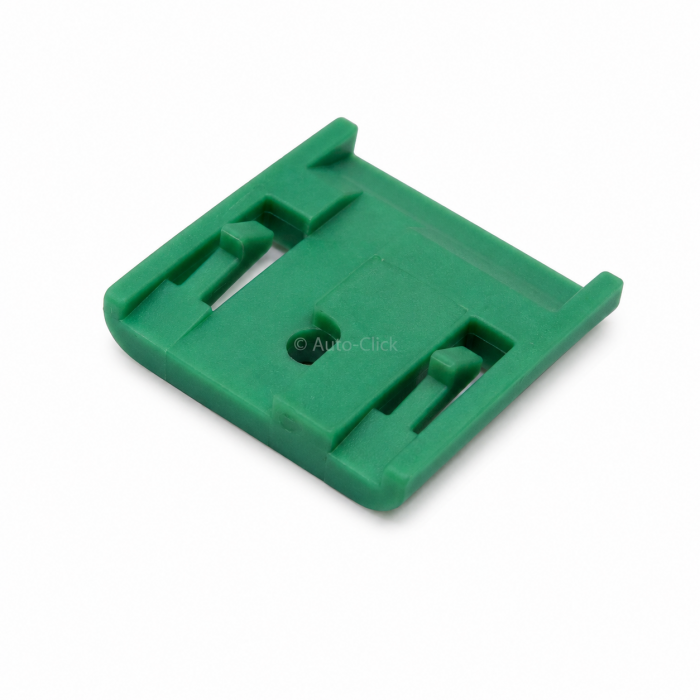

Yazaki 7157-7739-60 62 Connector Z Type Front Holder Lock

The Component: Genuine Yazaki high-performance secondary connector locking mechanism. 62 Connector Z Type Sealed Series Terminal Position Assurance (TPA) taxonomy / 3-position front holder retainer clip / Standard Keying Profile (Factory Light Green Finish / Premium Heat-Stabilized Polybutylene Terephthalate / Component Stabilization Accessory / Single-Row 1x3 Linear Orientation / Female Housing Contact Secondary Alignment Guard and Retaining Lock / Component Variant Alias: 7157-7739-60 / Global Order Reference: 7157773960).

Applications & Fitment: Engineered as a premium, critical original equipment (OE) specification front-loading secondary terminal assurance retainer clip designed explicitly to reinforce contact seat retention inside high-vibration automotive door panels, compact boundary routing setups, side mirror sub-assemblies, and localized cockpit-to-chassis transitions. This 3-pin front holder locking plate is an absolute connector rebuilding, trade loom assembly repair, and wiring harness reconstruction component staple across prominent international passenger, utility, and commercial transport platforms—most extensively integrated as the mandatory terminal safety lock for Yazaki 62 Connector Z Type 3-way female connector housings (including the widely deployed under-dash and door plug reference 7123-7730-40). It is standardly deployed across high-vibration door lock actuators and power window control drop-points, serving as the front-face primary terminal backing lock that mechanically blocks micro female contacts from backing out of their plastic internal retention fingers under severe strain. It features a robust, low-profile snap frame with integrated low-tolerance guidance slots designed to drop directly into the front face of the matching female socket housing shell. Once pressed from its initial staging position to its final locked seat, it applies absolute mechanical compression across the terminal shoulder arrays, creating a highly stable dual-stage lock completely resilient to continuous door slam shock, side-impact chassis harmonics, and localized thermal expansion cycles. Highly critical service accessory for auto-electrical workshops, professional wiring loom manufacturers, and car electronics specialists restoring harness reliability, as these independent front holder clips are standardly fractured, lost, or brittle during terminal de-pinning or field service repair runs.

Technical Attributes:

- Manufacturer Part Number: 7157-7739-60 / 7157773960 (Brand: Yazaki / Japan Genuine Component Class)

- Product Series Taxonomy: 62 Connector Z Type Sealed Interconnect Component Accessories

- Component Function: Front-Loading Secondary Terminal Position Assurance (TPA) / Contact Front Holder Lock Plate

- Configuration Matrix: 3-Position / 3-Way Contact Envelope Alignment, Single-Row 1x3 Linear Orientation

- Compatible Housing Target: Custom-engineered explicitly to lock down and seat within the front mating face of Yazaki 3-way female receptacle plugs (most prominently matching outer housing shell reference 7123-7730-40)

- Terminal Series System Accommodation: Precision optimized to register, align, and secondary-lock Yazaki 62 series nominal automotive micro female crimp socket terminals

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum structural flex resistance, tight dimensional retention memory, and resistance against localized cabin-to-door moisture degradation

- Color Profile: Factory Standard Light Green finish for instant field visibility and quick visual quality control checks during factory harness inspection

- Vibration Deflection Level: Implements secondary locking structural support to entirely mitigate terminal backup failures and mechanical connector contact pin walkout

- Installation Protocol: Snap-fits directly into the front receptacle interface face; must be seated into secondary lock stage after crimped wire leads are clicked into the primary housing cavity layout

- Commercial Access: Available as loose individual service clips, trade-pack repair bench refill bags, or bulk trade master logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, specialty harness makers, and trade auto-electrical stockists.
