Yazaki 7282-2764-30 6-Way Male HS Sealed Connector

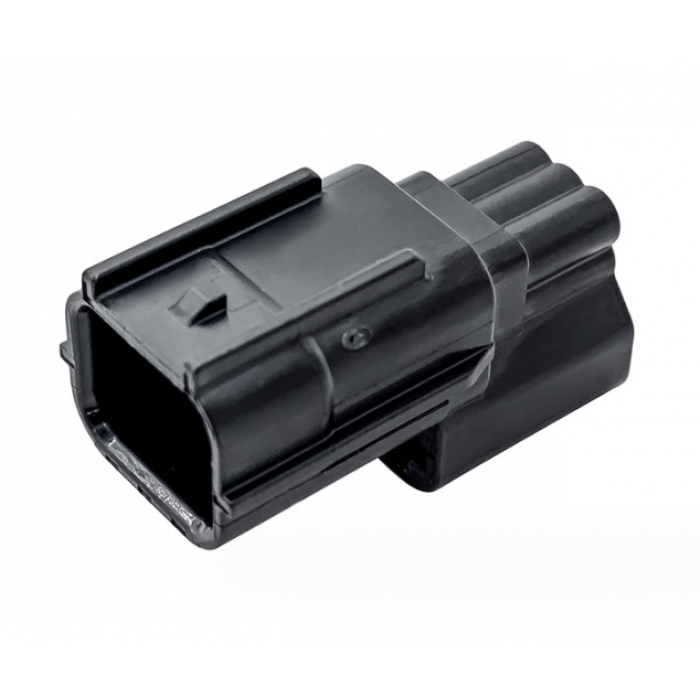

The Component: Genuine Yazaki high-performance sealed male tab connector plug housing. HS Sealed Series taxonomy / 6-position single-row male casing / Standard Keying Profile (Jet Black Housing Shell / Premium Heat-Stabilized PBT / Sealed Waterproof / 2x3 Grid Layout / Male Wire-to-Wire Harness Plug / Component Variant Alias: 7282-2764-30 / Global Order Reference: 7282276430).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) wire-to-wire or wire-to-device waterproof connection plug designed explicitly for ultra-compact, high-vibration automotive powertrain environments and motorcycle chassis systems. This 6-pin male socket block is an absolute wiring loom staple across modern Japanese passenger vehicles and performance motorcycle networks—prominently integrated inside Honda (including handlebar controls, reversing radar sockets, and oxygen sensor loops), Toyota, and Nissan electrical frames. It features a high-stiffness mechanical top-mounted locking ramp that mates cleanly with the matching female plug's latch lever, establishing an absolute, low-tolerance retention hold resilient to continuous engine thermal expansion and multi-axis structural harmonics. Engineered to conform to rigid tier-1 factory validation guidelines, its internal cavities pair with front holders and individual single-wire seals to ensure absolute terminal position assurance (TPA) and a robust barrier against high-pressure moisture ingress, road salt spray, engine bay dirt, and hot oil misting. Highly vulnerable to internal lance wall deformation if field service technicians attempt forced terminal insertion or extraction with un-profiled metal workshop picks.

Technical Attributes:

- Manufacturer Part Number: 7282-2764-30 / 7282276430 (Brand: Yazaki / Japan Genuine Class)

- Product Series Taxonomy: HS Sealed Series Interconnect Family

- Configuration: 6-Position / 6-Way Male Tab Plug, Single-Row 2x3 Linear Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 0.64mm nominal blade width HS series male tab pin terminals (025 classification)

- Connector Style: Male Tab Housing for Pin Contacts (Free-Hanging Wire Loom or Device Interface Plug)

- Fastening & Locking Architecture: Features an integrated positive locking top-mounted mechanical ramp system with secondary front terminal alignment holders

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing a pre-installed inner rubber perimeter interface ring matrix and independent wire seals

- Physical Footprint Dimensions: 34.10mm Overall Length x 17.50mm Base Housing Width x 20.00mm Overall Height structural profile

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, rigid dimensional memory, and chemical toughness

- Color Profile: Factory Standard Jet Black housing assembly block

- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling and micro-power power distribution networks operating below 32V DC continuous; reference current classification rated at 3 Amps

- Electrical Contact Performance: Low-voltage, low-current path resistance certified at 5mΩ Maximum Initial; Insulation barrier threshold rated at 100MΩ Minimum at 500V DC; withstands 1000V AC for 1 minute

- Operational Thermal Window: Severe-duty engine block and steering column layout certified to maintain material elasticity and seal compliance from -40°C up to +120°C

- Target Male Terminal Contacts (Not Included): Precision optimized to accept genuine Yazaki HS 0.64mm (.025) series male crimp pins (including terminal variants 7114-4415-02, 7114-4416-02, and 7114-4417-02; requires individual cavity single-wire rubber seals like 7158-3165-90, 7158-3166-60, or 7158-3167-80 to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms as the direct male partner to matching 6-way female Yazaki HS sealed series connector part number 7283-2764-30

- Commercial Access: Available as loose individual housing shells or convenient trade repair connection kits containing matched terminals and wire seals. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
