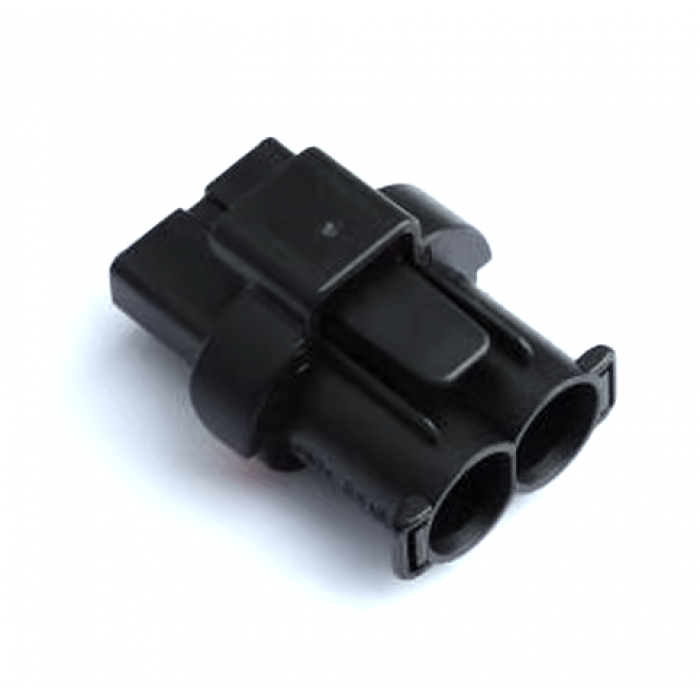

1544361-1 AMP  NG Power Terminals and Connectors , NG1

Terminals and seals are included

2 Way Automotive Connector

Product Type Features

Connector Shape : Rectangular

Connector System : Wire-to-Wire

Connector & Housing Type : Housing for Female Terminals

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Primary Locking Feature : Integrated in Housing

Mixed & Hybrid Connector : No

Configuration Features

Number of Positions : 2

Number of Rows : 1

Body Features

Cable Exit Angle : 180°

Primary Product Colour : Black

Connector & Keying Code : Neutral

Contact Features

Contact Type : Receptacle

Contact Size : 8mm

Mating Tab Width : 8 mm [ .314 in ]

Mechanical Attachment

Mating Alignment : With

Mating Alignment Type : Keyed

Strain Relief : Without

Connector Mounting Type : Cable Mount (Free-Hanging)

Terminal Position Assurance : No

Housing Features

Housing Material : PBT

Centerline (Pitch) : 10.9 mm [ .429 in ]

Dimensions

Product Length : 33.15 mm [ 1.3 in ]

Product Width : 42.8 mm [ 1.68 in ]

Connector Height : 24.64 mm [ .97 in ]

Operation/Application

Circuit Application : Power
