1-1418448-2
Our part2-AC691 RoHSPrice isn't everything
This is a genuine TE Connectivity part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Includes terminals and seals

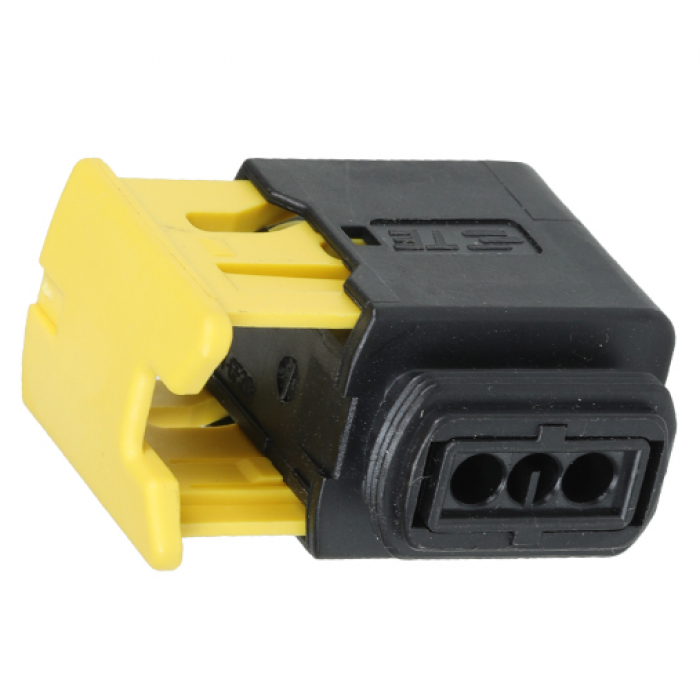

HDSCS, Housing for Female Terminals, Wire-to-Wire, 3 Position, 4mm [.157in] Centerline, Sealable, Black, Signal
Product Type Features
Connector & Housing Type : Housing for Female Terminals
Connector System : Wire-to-Wire
Sealable : Yes
Hybrid Connector : No
Primary Locking Feature : On the Terminal
Configuration Features
Number of Positions : 3
Number of Rows : 1
Electrical Characteristics
Operating Voltage (VDC): 60
Nominal Voltage Architecture (V): 12, 24, 42, 60
Body Features
Body Material : PBT GF
Cable Exit Angle : Other
Primary Product Colour : Black
Contact Features
Mating Tab Width : 1.6 mm [ .063 in ]
Mechanical Attachment
Mating Alignment Type : Polarized
Strain Relief : No
Terminal Position Assurance : No
Mounting Feature : Without
