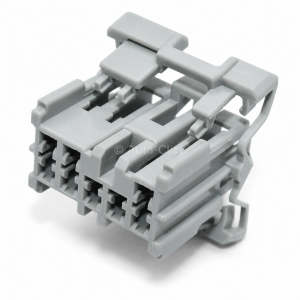

Sumitomo 6098-0247 MT Series 8-Way Grey Female Plug

The Component: Genuine Sumitomo 6098-0247 8-way automotive unsealed connector housing plug. MT Series 250/090 Hybrid or Straight 2.3mm (090) Type 8-position dual-row socket receptacle casing (Light Gray / PBT / Unsealed / Cable Mount Inline Shroud / Locking Thumb-Latch).

Applications & Fitment: Designed as a primary factory original equipment (OE) wiring harness connection solution for automotive cabin electronics, dashboard control networks, and steering column switch clusters. Universally specified across global Japanese passenger car and commercial vehicle platforms (most notably inside Toyota, Nissan, Honda, and Mazda main body harnesses) as the definitive female plug interface for power mirror controls, window regulator drops, auxiliary lighting circuits, and steering wheel clockspring sub-looms.

Engineered to perform flawlessly under standard cabin vibrations with strict structural dimensional controls. Highly vulnerable to primary external thumb-latch locking arm snapping if pried roughly when brittle from cold winter conditions, or internal wall deformation if back-probed carelessly during multi-meter dashboard field troubleshooting.

Technical Attributes:

- Manufacturer Part Number: 6098-0247 (Brand: Sumitomo Wiring Systems / Japan Genuine Class)

- Product Series Taxonomy: MT Series / 2.3mm (090) Type / Non-Sealed Automotive Class

- Configuration: 8-Position / 8-Way Female Receptacle Housing, Dual-Row 4x2 Layout Matrix

- Connector Style: Plug Housing for Female Socket Contacts (Inline Shroud)

- Connection Layout Type: Wire-to-Wire or Wire-to-Device Interconnect Channel

- Terminal Seating Dimension: 2.3mm (.090 inch) flat female socket box terminal tracking geometry

- Base Structural Compound: Premium High-Grade Polybutylene Terephthalate (PBT) resin compound

- Color Profile: Factory Solid Light Gray

- Fastening & Locking Architecture: Integrated robust heavy-duty overhead external mechanical thumb-latch locking mechanism

- Environmental Sealing Level: Unsealed / Protected cabin interior and dashboard enclosure design classification

- Circuit Performance Thresholds: Low-voltage electrical logic and medium-power infrastructure handling yielding an exceptionally clean initial contact path restriction capped at a 3.0mΩ Maximum baseline (10mΩ Maximum post-durability limits)

- Target Female Terminal Contacts (Not Included): Fits standard Sumitomo MT / DS / HD / HM series unsealed 2.3mm (090) female box socket crimp terminals, including 0.3-0.5mm² wire runs (such as 8240-4412) or 0.5-1.25mm² larger primary wire paths (such as 8240-4180 or 8240-4152)

- Mating Counterpart Housing: Pairs seamlessly inline as the direct female partner to Sumitomo MT unsealed series 8-way male pin tab housing blocks, including the 6098-0248 inline cap receptacle or corresponding device headers

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
