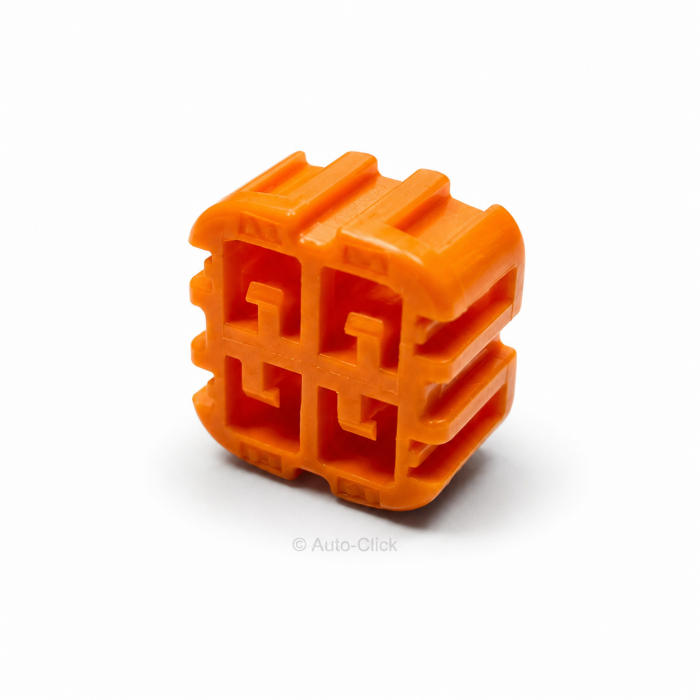

Sumitomo 6918-1599 4-Way Orange TPA Front Lock Retainer

The Component: Genuine Sumitomo high-performance automotive front lock retainer. RS Sealed Series taxonomy / 4-position Terminal Position Assurance (TPA) lock plate / 2x2 Matrix Front Insert Design / Standard Keying Profile (Factory High-Visibility Orange / Premium PBT / Housing Service Component / Component Variant Alias: 6918-1599 / Global Order Reference: 69181599).

Applications & Fitment: Engineered as a critical secondary locking component designed explicitly to interface with Sumitomo RS Sealed Series 4-way female connector plug housings (most notably part number 6189-7757). This 4-pin high-visibility orange front plate functions as the primary Terminal Position Assurance (TPA) mechanism, ensuring that crimp socket contacts are absolutely seated and locked deep inside the primary housing channels. Deployed extensively inside severe-duty engine bay and chassis wiring harnesses across Japanese automotive and motorcycle platforms, it is a critical replacement item when servicing oxygen sensors, camshaft sensors, and electronic throttle sub-assemblies. The front insert layout requires a positive structural push to lock into its final engagement shelf, preventing internal terminal back-out under aggressive multi-axis harness strain or high-vibration engine harmonics. Highly susceptible to tracking face fracture or guide wing snapping if field technicians attempt forceful removal with un-profiled metal pick tools during multi-meter terminal diagnostic probing.

Technical Attributes:

- Manufacturer Part Number: 6918-1599 / 69181599 (Brand: Sumitomo Wiring Systems / Genuine Factory Automotive Class)

- Product Series Taxonomy: RS Sealed Series Service Components

- Component Type: Front Lock Retainer Plate / Terminal Position Assurance (TPA) Secondary Lock

- Configuration: 4-Position / 4-Way Matrix Profile, Dual-Row 2x2 Grid Port Alignment

- Structural Connector Compatibility: Tailored exclusively to lock into Sumitomo 4-way female plug housings (including 6189-7757 and adjacent series variants)

- Target Terminal System: Locks standard Sumitomo RS sealed series 1.8mm nominal blade width female micro-crimp socket pins firmly in place

- Secondary Locking Function: Physical blocking plates slide behind the internal housing lances to prevent any terminal push-back under wire stress

- Base Structural Compound: Premium Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal track stability, rigid dimensional accuracy, and impact durability

- Color Profile: Factory Standard High-Visibility Orange (enables instant visual validation of secondary lock engagement during harness assembly inspections)

- Environmental Isolation Level: Operates fully inside waterproof and dustproof IP-rated connector assemblies when combined with the outer housing shell and wire cavity seals

- Low-Voltage Circuit Threshold: Material certified for standard vehicle low-voltage control networks operating below 32V DC continuous

- Operational Thermal Window: Extended engine compartment rating certified to maintain structural tension and lock elasticity from -40°C up to +120°C

- Commercial Access: Available in individual loose component units, trade repair sub-packs, or bulk distributor packaging. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
